What a Samsung Frame TV Installation in Newmarket Actually Includes
A Samsung Frame TV installation in Newmarket covers a site survey against the wall and the room’s light, the no-gap flush wall mount, a recessed power outlet behind the screen, the in-wall route for the Invisible Connection optical cable, the One Connect Box placement, the bezel selection against the room’s millwork and floor palette, and the Art Mode calibration with a curated starter art rotation — handled in one visit for a single-screen retrofit on a standard drywall partition, and coordinated across two visits when the wall is a Lower Main Street South heritage plaster-and-lath substrate or when a stone fireplace surround needs core-drilling.
Most Frame TV installs in Newmarket begin with a wall conversation. The wall has to take a no-gap mount, which means a recessed electrical box behind the screen rather than a surface-mount outlet that would push the screen 25 mm proud of the wall and break the flush look. The Invisible Connection optical cable — Samsung’s near-transparent fibre-optic ribbon that carries signal and power from the One Connect Box to the back of the screen — needs a clean route, either inside a stud cavity in a drywall partition, behind a paint-matched surface raceway when the substrate cannot be opened, or hidden through a chimney chase when the screen is going above a fireplace. See the broader pattern at Samsung Frame TV installation across the GTA.
The bezel is the second conversation. Samsung’s interchangeable magnetic bezels — Modern matte black, Beveled walnut, and the Studio Stand frame — change how the screen reads against the room. In Stonehaven and Summerhill detached stock the warm-stained millwork and the engineered hardwood usually push the choice toward Beveled walnut; in a Lower Main Street South heritage interior the bezel is often selected against an original picture-rail or against existing framed art on adjacent walls. Art Mode is the third. The screen has an ambient-light sensor that dims the matte panel to printed-canvas levels through the day, and a motion sensor that wakes and sleeps the screen with the room — both are calibrated against the room’s actual daylight curve at the visit, not against a factory default.
No-Gap Flush Bracket
The Frame ships with the bracket. The wall has to be plumb across the screen’s full footprint — a few millimetres of bow at any corner shows as a visible gap.
Recessed Power Outlet
Low-profile recessed outlet box installed by a licensed electrician behind the screen. A standard surface outlet would push the bezel 25 mm off the wall and break the flush look entirely.
Invisible Connection Cable Run
Fibre-optic ribbon routed in-wall through stud cavity, hidden inside a chimney chase above a fireplace, or behind a paint-matched surface raceway on heritage plaster-and-lath or metal-stud condo walls.
Bezel + Art Mode Calibration
Modern matte-black, Beveled walnut, or Studio Stand bezel matched to wall paint and millwork; ambient-light sensor stepped to the room’s actual daylight curve; starter art library curated.
How the No-Gap Flush Mount Works on the Different Wall Types You See in Newmarket
Newmarket has three common wall substrates behind the Frame TV — drywall over wood stud in the mid-2000s Stonehaven and Summerhill executive detached stock and in the Glenway, Woodland Hill, Copper Hills, and Quaker Hill family detached pockets, drywall over metal stud in the Bristol-London townhouse and the Yonge-corridor condo stock north of Davis Drive, and original plaster-and-lath inside the Lower Main Street South Heritage Conservation District Victorian and Edwardian residential stock. The no-gap mount works on all three, but the fastener pattern, the outlet method, and the cable route change with the substrate.
On a drywall-over-wood-stud partition the no-gap bracket is fixed directly into the stud framing with structural lag screws, a licensed electrician installs a low-profile recessed 1-gang box behind the screen position using a fish-tape pull from the nearest live circuit, and the Invisible Connection cable is fished inside the stud cavity down to a low-voltage cover plate behind the media console below. This is the cleanest condition in Newmarket and is the working assumption in most Stonehaven, Summerhill, Glenway, and Woodland Hill installs. On a drywall-over-metal-stud partition — common in Bristol-London townhouse end walls and in the Yonge-corridor condo demising walls — the bracket is fastened with toggle anchors rated for the screen weight, the recessed outlet uses a surface-mount adapter compatible with the partition’s limited cavity depth, and the cable is fished inside the cavity through the metal stud knock-outs rather than through wood-stud bays. Where the Newmarket conversation is broader screen mounting rather than a Frame-specific install, the supporting service is TV wall mounting in Newmarket.

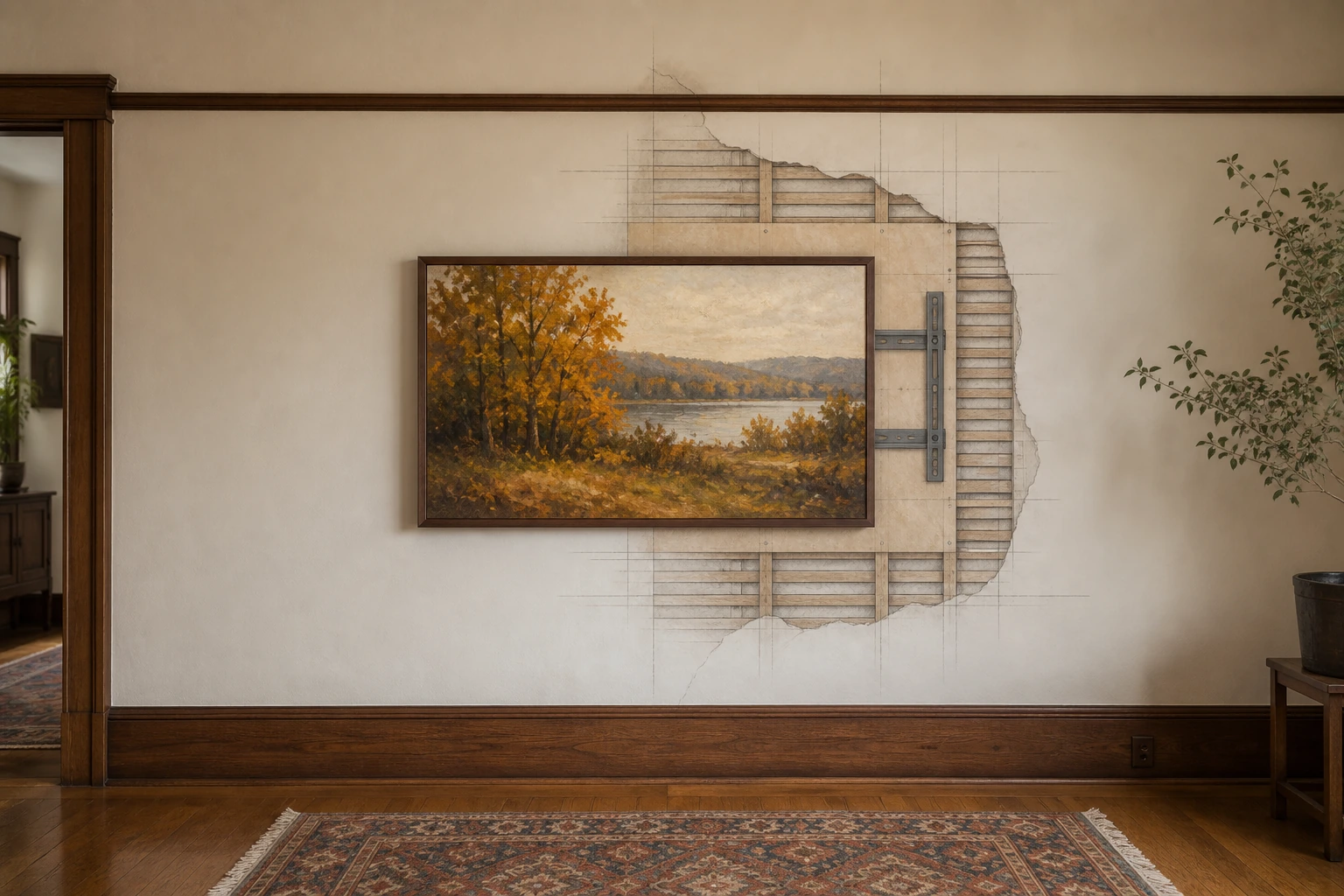

The plaster-and-lath substrate in the Lower Main Street South HCD is the most careful condition. The bracket is fastened with a pattern that hits the original wood lath behind the plaster face rather than spanning a plaster-only section that could crack under load, a plywood backer is sometimes added behind the mount to spread the screen weight across multiple lath strips, the recessed outlet is approached on a case-by-case basis with the electrician — sometimes possible, sometimes routed to a surface-mount adapter — and the cable route is decided against the room’s existing picture-rail and baseboard millwork to avoid any visible scar on the original plaster face.
How we fasten into Lower Main Street South lath without cracking the original plaster
The fastener pattern is laid out at the survey by tapping the plaster face to map the lath spacing behind it, then drilled with a pilot bit before the lag goes in. Where the lath spacing does not line up with the no-gap bracket’s mounting hole pattern, a 19 mm plywood backer is fastened across multiple lath strips first and the bracket is fastened to the backer — the load is spread, the plaster face stays intact, and the backer is hidden behind the screen.
Installing a Frame TV in a Lower Main Street South Heritage Conservation District Home
Yes — the Frame TV is one of the few televisions that actually fits a Newmarket heritage interior. The Lower Main Street South Heritage Conservation District plan, designated under Part V of the Ontario Heritage Act in 2013, governs the public-facing exterior of the 72 designated properties and the streetscape, not the interior wall finish. Inside, the Frame’s matte panel and magnetic bezel read against the room’s original picture-rail tradition the way a framed painting reads — and the no-gap flush mount removes the visual weight of a regular black slab on a heritage wall.
Most Lower Main Street South residential interiors that we look at have original plaster-and-lath walls, original baseboard millwork, an original picture-rail running 200 to 250 mm below the ceiling line, and original hardwood floors — usually unstained or warm-stained quartersawn oak. The Frame TV install is fitted into that vocabulary rather than imposed on it. The Beveled walnut bezel is the usual choice because it picks up the room’s existing warm-stained millwork and the floor, not because it is the most modern bezel — the Modern matte-black bezel often reads visually cold against the warm interior palette.
The screen position is set against the room’s existing wall composition. Where an original picture-rail is present, the screen is centred so the top edge sits parallel to the rail with a deliberate vertical gap; the bezel reads as a deliberate framed picture below the rail rather than a fight with it. The cable route is decided against the baseboard millwork. Where a recessed outlet is possible behind the screen, the electrician core-drills through the lath into a fished cavity; where the cavity is unavailable or the lath spacing forbids it, a paint-matched surface raceway runs the cable down to the baseboard line and the Invisible Connection ribbon disappears against the wall colour.
- Lath-spacing map taken by tapping the plaster face at the survey, before any fastener goes in
- 19 mm plywood backer spanning multiple lath strips where the bracket hole pattern does not align with lath
- Recessed outlet cut with a slow-speed plaster saw to avoid cracking the plaster key, or routed to a paint-matched surface raceway when the substrate forbids it
- Screen centred parallel to the original picture-rail with a deliberate vertical gap below
- Beveled walnut bezel matched to original warm-stained baseboard and casing profiles
- HCD plan governs exterior alterations — interior Frame install scope generally outside permit review
How a Samsung Frame TV Install Works in a Stonehaven-Wyndham Executive Detached Great Room
A Stonehaven-Wyndham Frame TV install is a retrofit. The homes were built mid-2000s onward without an AV pre-rough-in, so the install plans around the existing electrical layout, the existing fireplace surround, the existing media console, and the warm-stained millwork that runs through the great room. The screen usually lands on the stone-clad fireplace surround or on the adjacent partition opposite the sectional, the cable route is decided against the surround chase or the stud cavity, and the bezel choice is made against the floor and the millwork at the survey.
Most Stonehaven-Wyndham great rooms put the fireplace on a feature wall with a stone or stone-veneer cladding, a wood mantel, a direct-vent gas firebox, and a deep media-console run flanking the surround on one or both sides. The Frame TV is usually mounted on the upper surround above the mantel, which means a custom steel mounting plate spanning the surround in the screen footprint and a core-drill through the stone for the recessed outlet rather than a face-mount. The Invisible Connection cable is routed in-wall behind the surround down inside the chimney chase to the basement ceiling, then horizontally to a One Connect Box on a vented shelf inside the basement media closet or the basement equipment rack.
Where the great room does not have a fireplace as the dominant element, the screen lands on the partition opposite the sectional and the cable runs inside the stud cavity to a low-voltage cover plate behind the media console below. The bezel choice in Stonehaven is almost always Beveled walnut because the great-room floors are typically wide-plank engineered hardwood in a warm stain and the millwork package — baseboards, casings, mantel, built-ins — is usually warm-stained as well. The Modern matte-black bezel is considered at the survey for completeness, but it consistently reads visually cold against the warm Stonehaven palette and the Beveled walnut bezel locks the architectural vocabulary together. The Kingdale estate enclave in the northeast of Stonehaven-Wyndham can take a slightly different approach — the larger lots and the deeper homes there sometimes allow a basement AV closet rather than a basement-rack-only setup, which lets the One Connect Box live in a colocated rack alongside a Sonos amp or a Control4 controller if those are already in the home.
What If Your Newmarket Wall Cannot Take an In-Wall Outlet — How the Surface-Mount Approach Works
Some Newmarket walls cannot take a clean recessed outlet behind the screen — a Lower Main Street South plaster wall where the lath spacing forbids it, a Bristol-London townhouse end wall with insufficient cavity depth, or a Glenway lower-level concrete-foundation wall. On those walls the Frame still installs flush against the wall, but the cable runs behind a paint-matched surface raceway down to the baseboard line rather than inside the wall — the visible result is a near-invisible ribbon that disappears against the wall colour.
The surface-mount approach is the realistic fallback, not a compromise. The no-gap bracket still fastens directly to the substrate through the bracket’s standard mounting holes, the screen still sits at zero millimetres proud of the wall, and the bezel still reads as a framed picture. The change is in how the cable leaves the back of the screen. A surface-mount adapter mounts immediately behind the screen position, the Invisible Connection cable plugs into the adapter, and the cable runs inside a low-profile paint-matched raceway down to the baseboard line where it joins a second raceway routed horizontally along the top of the baseboard to a power source or to the One Connect Box.
The raceway is painted to match the wall colour at the survey using a colour-matched test panel, and the baseboard-line section is often hidden by furniture or by an existing console below the screen. The same approach is used when a homeowner wants to avoid any in-wall work on a wall that could in principle take a recessed outlet — for example a recently-painted feature wall in a Stonehaven or Woodland Hill family room where the homeowner does not want a fresh paint patch. The trade-off is a thin visible line down the wall where the raceway runs; the offset is a clean install with no in-wall cutting and a same-day-finish path.
Where the Samsung Frame TV One Connect Box Goes in a Newmarket Retrofit
The One Connect Box is hidden — on a vented shelf inside the basement media closet for a Stonehaven, Summerhill, or Kingdale install, on a vented shelf inside the media console below the screen for a Glenway or Woodland Hill family room, inside a custom millwork niche for a Lower Main Street South heritage interior where the existing furniture and millwork already define the room, and inside the upper kitchen cabinetry or a ventilated closet shelf for a Bristol-London townhouse. The Invisible Connection optical cable runs from the box to the back of the screen — up to 15 metres in a single continuous run with no in-wall splice.
Three rules drive the placement. First, the One Connect Box needs convective airflow — the box generates heat under load, and a sealed cabinet without venting will eventually shorten the box’s service life. The vented shelf is a real vent slot in the cabinet door or a deliberate gap at the cabinet back, not a closed enclosure. Second, the Invisible Connection cable has a fixed length budget — Samsung’s stock optical ribbon is 5 metres, the available extension is 10 metres, and the maximum continuous run is 15 metres without an in-wall splice that would void the optical-fibre warranty. In a Stonehaven great-room install with the basement directly below, 15 metres is enough; in a deeper estate detached the box may need to live closer than the basement and a ground-floor closet or a millwork niche is the better answer.
Third, the box needs to remain serviceable. The HDMI inputs and the power input on the back of the box have to be reachable for future swaps — a new game console, a new streamer, a new Sonos Amp — without dismantling the media console or pulling the screen off the wall. Where the box lives alongside a multi-room audio amplifier, the broader services that pair are Sonos installation in Newmarket and the structured-wiring rack itself through network installation in Newmarket.
How to Pick the Samsung Frame TV Bezel Against the Warm-Stained Millwork Common in Stonehaven and Summerhill
Bezel selection is decided at the survey by holding the three bezel samples — Modern matte black, Beveled walnut, and the Studio Stand frame — against the actual wall, the floor, the millwork, and the room’s daylight curve, not against a showroom or a swatch online. In Stonehaven, Summerhill, and Kingdale detached stock the room palette is consistently warm — warm wide-plank engineered hardwood, warm-stained baseboards and casings, warm-stained mantels — and the Beveled walnut bezel consistently wins because it picks up the existing vocabulary and reads as deliberate furniture.
The Modern matte-black bezel reads sharper and more contemporary on its own, but it is consistently rejected in Newmarket detached stock once it is held against the warm-stained millwork and the warm engineered hardwood in afternoon light. It reads as a black slab against warm wood and undermines the framed-picture effect that the Frame is designed to produce. The Beveled walnut bezel is the working default in Stonehaven, Summerhill, Kingdale, Glenway, Woodland Hill, Bristol-London, Copper Hills, and Quaker Hill because the bezel’s warm grain locks into the room’s existing warm-stained baseboards, casings, and mantel package.
In a Lower Main Street South heritage interior the bezel choice depends on the existing picture-rail and the existing framed art on the adjacent walls — Beveled walnut still wins on most pre-1920 Newmarket homes because the original millwork was usually a warm-stained quartersawn oak, but a darker warm-stained beveled bezel can be brought to the survey as a sample if the homeowner is using deeper-stained art frames on the adjacent walls. The Studio Stand frame is a specialty option that turns the screen into a tripod-mounted easel piece in the centre of a room — useful in a principal-bedroom feature corner or a Bristol-London townhouse den, but rarely the working answer for a great-room flush install.
What Size Samsung Frame TV Fits Best in Different Newmarket Rooms
The screen size is decided at the survey against the seated sightline from the sectional and against the wall composition, not against the room’s total square footage. A 55-inch Frame fits a Lower Main Street South heritage living room with the original picture-rail, a 65-inch Frame fits a Stonehaven, Summerhill, or Kingdale great-room fireplace surround on most lots, a 75-inch Frame fits a Glenway or Woodland Hill family-room partition opposite a deep sectional, and an 85-inch Frame fits a deeper Stonehaven Kingdale-enclave great room where the seated sightline is more than 4.5 metres from the screen.
Two rules drive the call. First, the seated sightline. From the centre of the sectional, the screen should occupy roughly 30 to 40 degrees of horizontal field of view for a cinematic Frame Mode rendering — closer than that and the screen reads as oversized in a room used for daily living, further than that and the screen reads as undersized in a great-room composition where it is meant to be a deliberate framed element on the wall.
Second, the wall composition. The screen has to read as a framed picture against the wall it lives on. On a Stonehaven stone-clad fireplace surround the screen footprint should sit visually inside the surround face with a deliberate margin of stone on every side; on a Lower Main Street South heritage living room the screen footprint should sit visually below the original picture-rail line; on a Bristol-London townhouse end wall the screen footprint should not crowd the adjacent window or door casing. Where the wall composition and the seated sightline disagree, the wall composition usually wins because the framed-picture effect is the reason the Frame is being installed in the first place.
How Much Samsung Frame TV Installation Costs in Newmarket
Samsung Frame TV installation in Newmarket starts at $199.99 for a single-screen flush install on a standard drywall partition. Concrete walls, above-fireplace installs, screens over 65 inches, Lower Main Street South Heritage Conservation District plaster-and-lath substrate, surface-mount with paint-matched raceway, and full-motion brackets are quoted separately at the survey based on scope, substrate, and access. The estimate is a fixed-price quote covering the flush mount, the recessed outlet or surface-mount fallback, the Invisible Connection cable run, the One Connect Box placement, the bezel fit, and the Art Mode calibration.
Two things change the figure once the survey is complete. First, the substrate. A drywall-over-wood-stud partition is the cleanest condition and the closest match to the starting price. A Lower Main Street South plaster-and-lath substrate, a Bristol-London metal-stud partition with limited cavity depth, or a Stonehaven stone-clad fireplace surround that needs a core-drilled recessed outlet take longer and quote higher. Second, the One Connect Box route. A 5-metre stud-cavity run to a basement equipment rack directly below is the cleanest condition; a 10- or 15-metre run that has to navigate a chimney chase or a Kingdale estate-enclave deeper floorplan takes longer and is quoted separately.
The estimate is fixed-price once the survey is done — there is no surprise after the work begins. See the broader fixed-price scope across services at SetupTeam pricing.
How a Frame TV Install Typically Unfolds in a Stonehaven-Wyndham Executive Detached Great Room in Newmarket

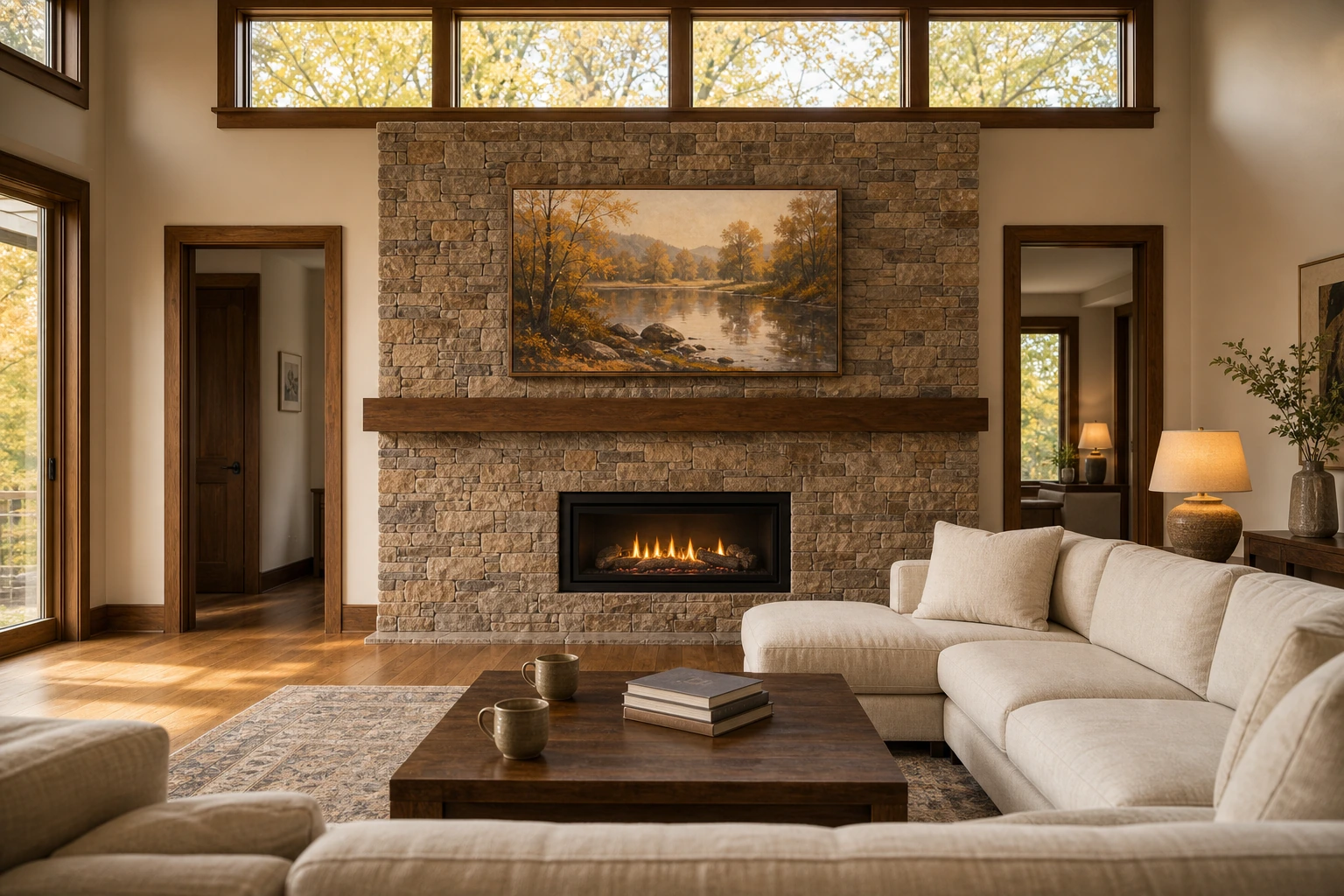

A typical Frame TV install in a Stonehaven-Wyndham executive detached great room covers a single 65-inch Samsung Frame mounted flush on the upper face of a stone-clad gas-fireplace surround, a Beveled walnut bezel matched to warm wide-plank engineered hardwood and warm-stained baseboard millwork, a custom steel mounting plate spanning the stone surround in the screen footprint, a core-drilled recessed outlet through the stone for the no-gap mount, a 10-metre Invisible Connection optical cable routed in-wall through the chimney chase down to the basement equipment rack, the One Connect Box on a vented shelf in the basement rack, and an Art Mode calibration against the south-facing transom-band daylight curve above the surround.
The work runs in two coordinated visits — a survey-and-electrical visit, and a mount-and-Art-Mode visit. The survey decides the screen-centre height against the seated sightline from the great-room sectional and the position of the recessed outlet behind the screen footprint. The licensed electrician core-drills the stone face on the same day with a water-cooled carbide core bit in a single pass to avoid chip-out on the stone, then fishes the Invisible Connection cable down inside the chimney chase to the basement ceiling and horizontally to the basement equipment rack.
The mount visit fastens the custom steel mounting plate across the surround, fits the no-gap bracket, hangs the screen, magnetises the Beveled walnut bezel in place, and calibrates Art Mode against the great room’s actual late-afternoon daylight reading off the south-facing transom band above the surround. The starter art rotation is loaded with a curated set of warm late-impressionist Canadian landscape paintings sympathetic to the room’s warm palette and to the deciduous canopy visible through the transom windows. More installations of this kind appear under recent installation work.
Scenario framing — representative Stonehaven-Wyndham executive detached install pattern. Specific homeowner project references available on request after a survey.
