Samsung Frame TV installation in Toronto
Done right — flush mounts, One Connect box placement, and compliant wiring. SetupTeam handles every detail, from pre-construction rough-in to a finished result that looks like part of the wall.
Common questions about Samsung Frame TV installation.
Can the One Connect cable go in the wall?
No. The standard One Connect cable is not rated for in-wall routing under Ontario Electrical Safety Authority rules. A recessed low-voltage enclosure built into the wall behind the TV is the correct, compliant solution.
Does Samsung The Frame need a recessed outlet?
No — a recessed outlet behind the TV would cause it to sit away from the wall, defeating the flush look. The correct solution is a low-voltage enclosure positioned in the wall cavity, keeping the power connection and One Connect box completely out of sight.
Where should the One Connect box go?
The cleanest option is a recessed enclosure built directly into the wall behind the TV. On concrete, masonry, or certain condo walls, the box can be placed in a discreet adjacent location with surface cable management.

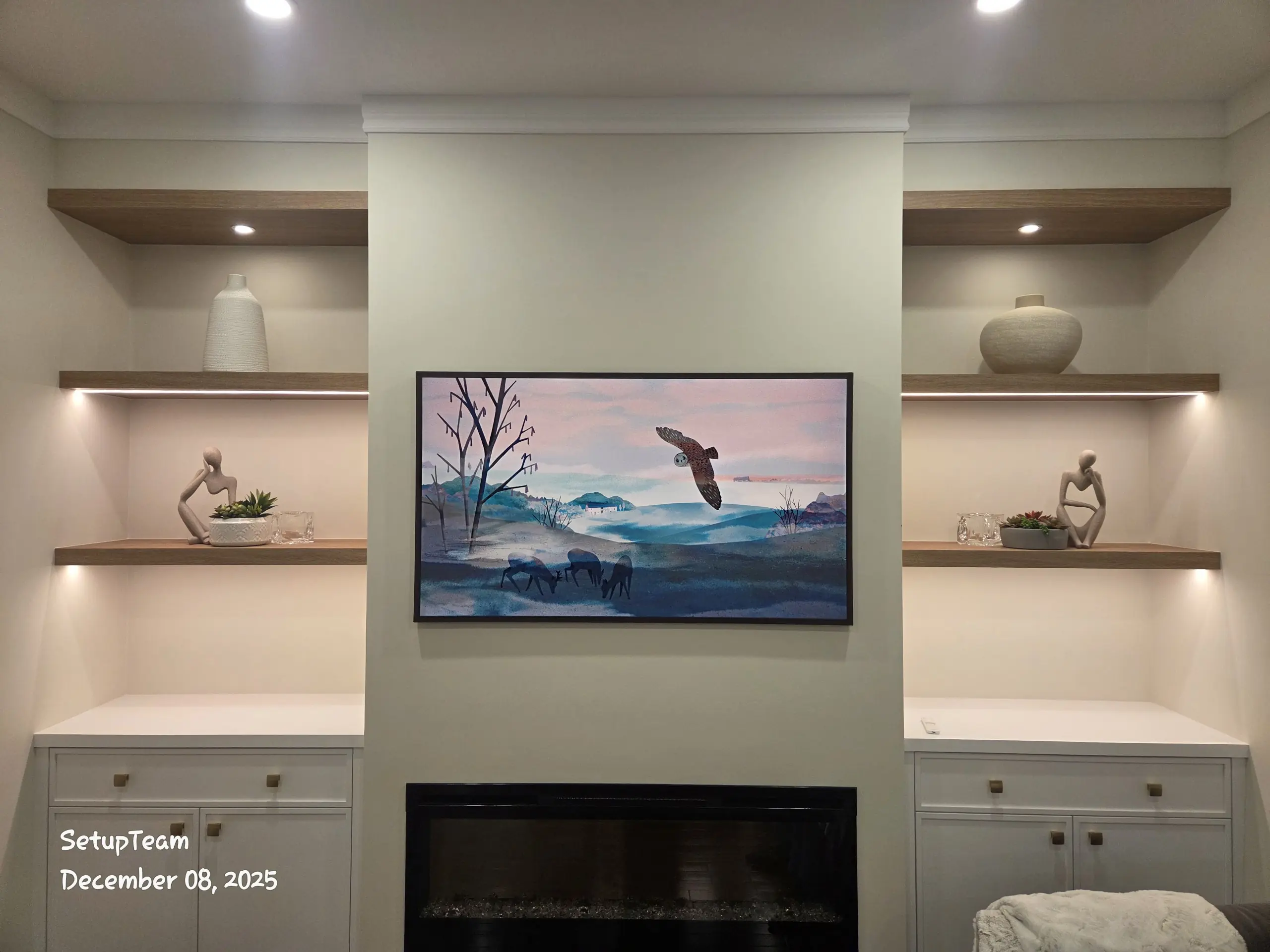

Can it go above a fireplace?
Yes, with a heat output and viewing angle assessment first. Sealed gas inserts are lower-risk than open-hearth fireplaces. Art Mode reduces the viewing-angle concern typical of above-fireplace placements.
Can it be mounted on tile, stone, or concrete?
Yes, but complexity and cost depend heavily on when the installation is planned. Pre-construction is significantly simpler. Retrofitting into finished porcelain or stone is possible but more involved.
What makes the Samsung Frame TV different to install.
The Samsung Frame TV is not a standard wall-mount job. Three things set it apart: the proprietary flush mount system, where the One Connect box goes, and how the wiring must be handled to meet electrical code.
Most TV wall mounting in Toronto involves a mount, a single power cord, and an HDMI cable. Samsung The Frame changes this entirely. Its One Connect box — the unit that houses every port — connects to the TV via a single proprietary cable. That cable cannot be run inside a wall cavity without a compliant enclosure. The flush mount system is also proprietary, requiring precise alignment for the TV to sit level and flush without visible gaps. These are installation requirements that must be planned for before the day of installation.
SetupTeam installs Frame TVs across Toronto, Markham, Richmond Hill, Vaughan, and Etobicoke. As an authorized Samsung dealer, we also supply the TV — so the entire project, from purchase through to a finished installation, is handled in one place. The sections below cover each of the three key installation variables in detail.
Flush mount system
The Frame TV uses a slim-fit or no-gap mount unique to Samsung. Correct alignment prevents the TV from sitting at an angle or showing a visible gap at the top or bottom of the frame.
One Connect box
All ports live in a separate box connected to the TV by a single cable. Where that box goes — and how it is housed — determines whether the result looks like art or looks like an afterthought.
Wiring compliance
The standard One Connect cable is not rated for in-wall routing under Ontario Electrical Safety Authority rules. The correct solution requires a recessed low-voltage enclosure built into the wall.
The One Connect cable cannot go inside the wall — here is what to do instead.
The Samsung One Connect cable is not rated for in-wall routing under Ontario Electrical Safety Authority (ESA) rules. Running it through a wall cavity — without a compliant enclosure — does not meet electrical code. This is the most common point where Frame TV installations fall short in Toronto.

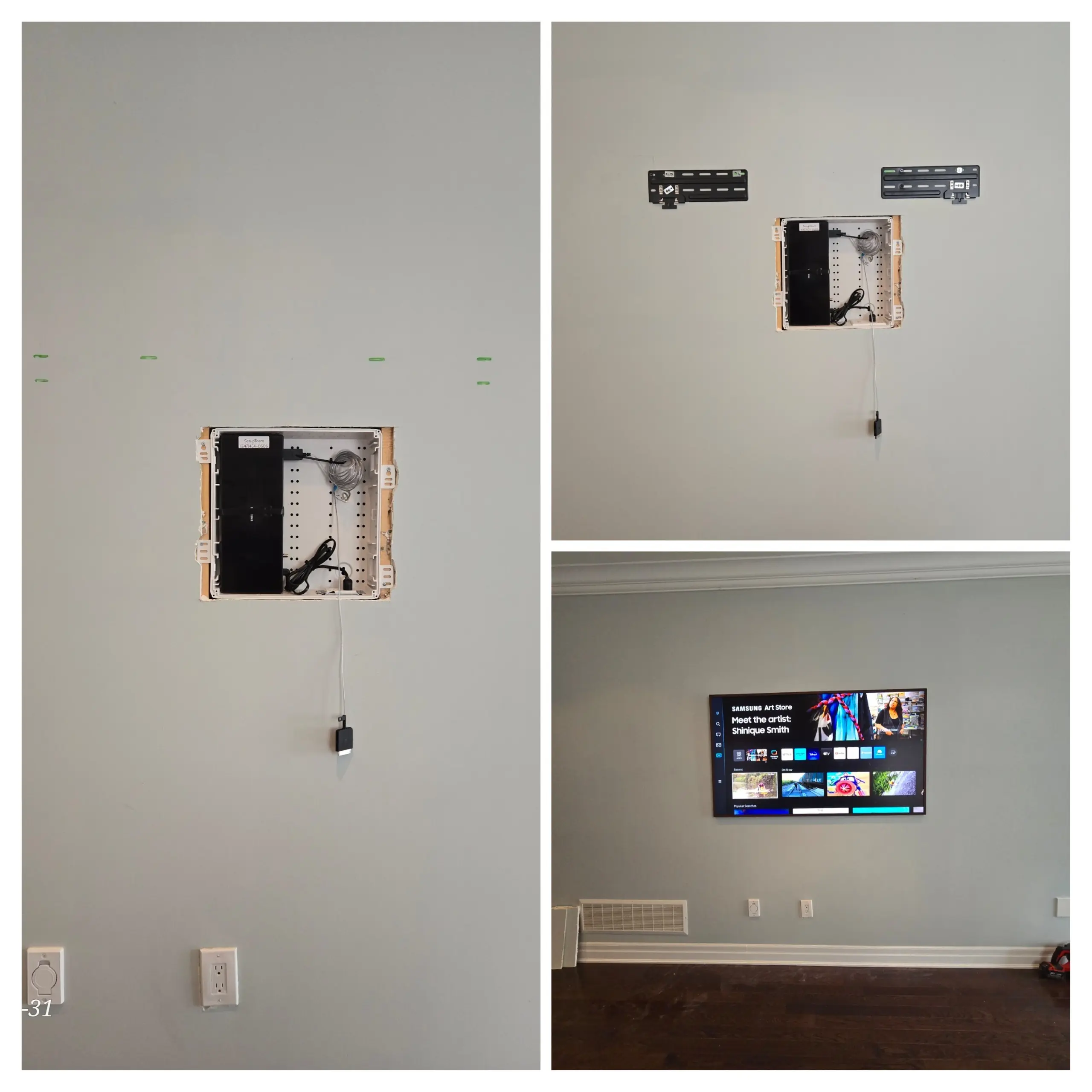

The correct approach is a recessed low-voltage enclosure built into the wall directly behind the TV. The enclosure houses the One Connect box inside a contained cavity. The cable runs entirely within that enclosed space — never through an open wall cavity. From the front, the TV sits flush against the wall with no visible box and no external cable management strips.
In concrete, masonry, or certain condo constructions where a recessed enclosure is not possible, the One Connect box can be placed in a discreet adjacent location with surface cable management. Where a project also needs structured cabling or equipment relocation, our network installation and structured wiring service handles the low-voltage rough-in. SetupTeam confirms the correct approach at the time of quote — before any work begins.
A recessed outlet behind the TV is not the correct approach — it would cause the TV to sit away from the wall, breaking the flush appearance. The low-voltage enclosure is the right solution: it houses the One Connect box in a concealed wall cavity, keeping everything hidden without affecting the TV’s position against the wall.

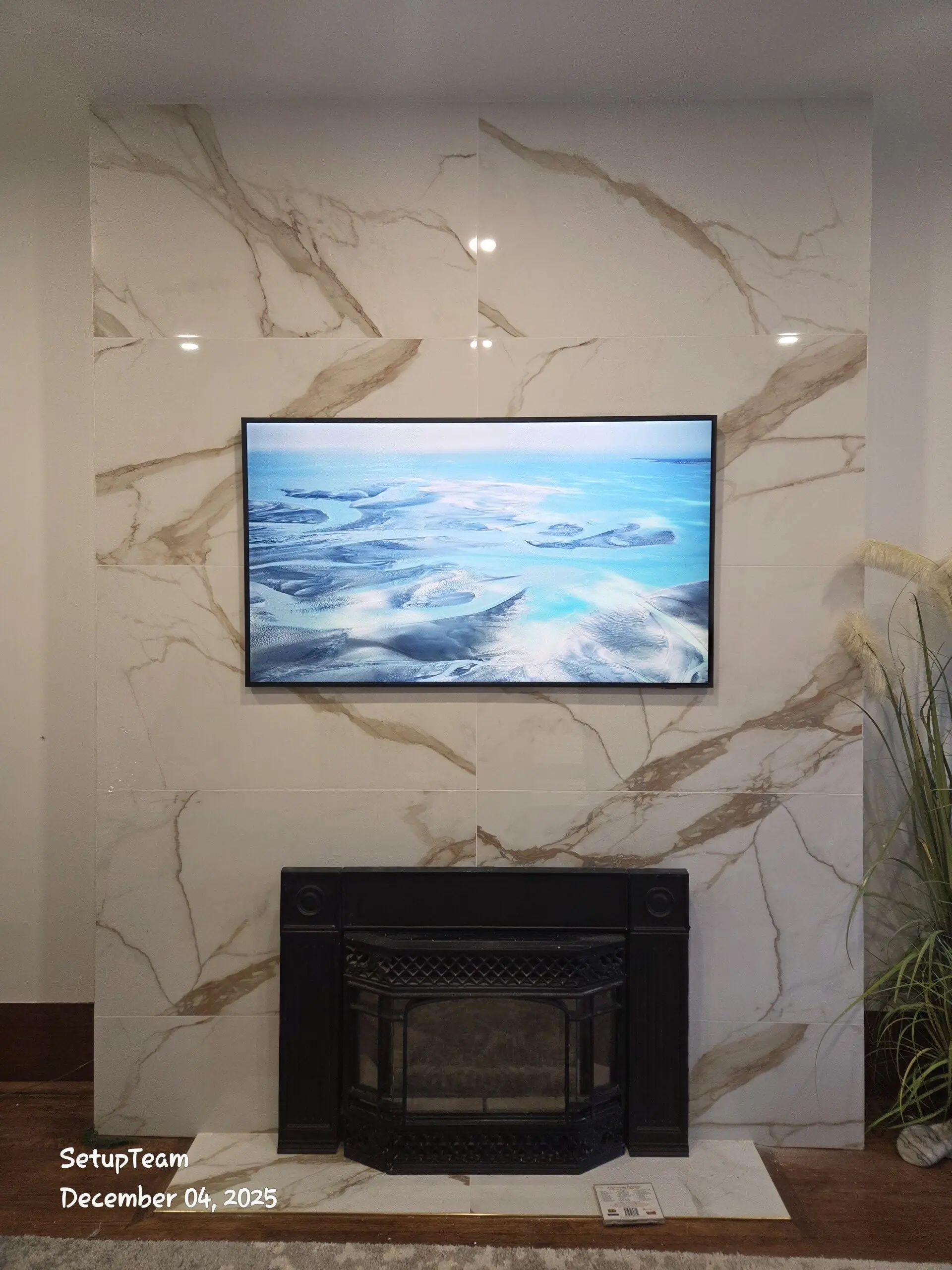

Mounting a Frame TV on tile or porcelain — what Toronto homeowners need to know.
Porcelain feature walls are common in Toronto renovations. Installing a Frame TV on finished tile is possible — but significantly more complex than a standard drywall installation, and the results depend on decisions made before the tile went up.
Tile cannot be cut cleanly after installation for a recessed enclosure or outlet without risking the surface. Conduit, enclosures, and electrical rough-in must be planned and placed before tile is set. When that planning happens at the renovation stage, the finished result — a flush Frame TV on a seamless porcelain feature wall — looks exactly right.
SetupTeam has completed Samsung The Frame installations on porcelain and large-format tile across Toronto, Richmond Hill, and Vaughan. Above-fireplace placements on tile are particularly common in Toronto new-build renovations. These installations require an accurate assessment of the wall construction before any work begins.
- Retrofit tile installs require specialist anchoring — standard drywall anchors do not apply.
- Conduit and enclosure placement must coordinate with the tile layout and grout lines.
- Above-fireplace installations on tile require a heat output assessment before mounting.
- Pre-construction coordination is always the cleaner, lower-cost path.
If your renovation is still in progress — or planned — contact SetupTeam before the tile stage. The conversation takes a few minutes and can prevent a significant amount of work later.
Planning a renovation? The right time to discuss Frame TV placement, soundbar position, and network cabling is before drywall — not after.
Contact UsWhy the wall matters as much as the TV.
The Frame TV is one part of a wall system. Where the TV goes, where the soundbar sits, and where the network access point mounts all need to be coordinated — not installed sequentially. Planning these together at the rough-in stage produces a cleaner result and avoids the cost of reopening walls later.

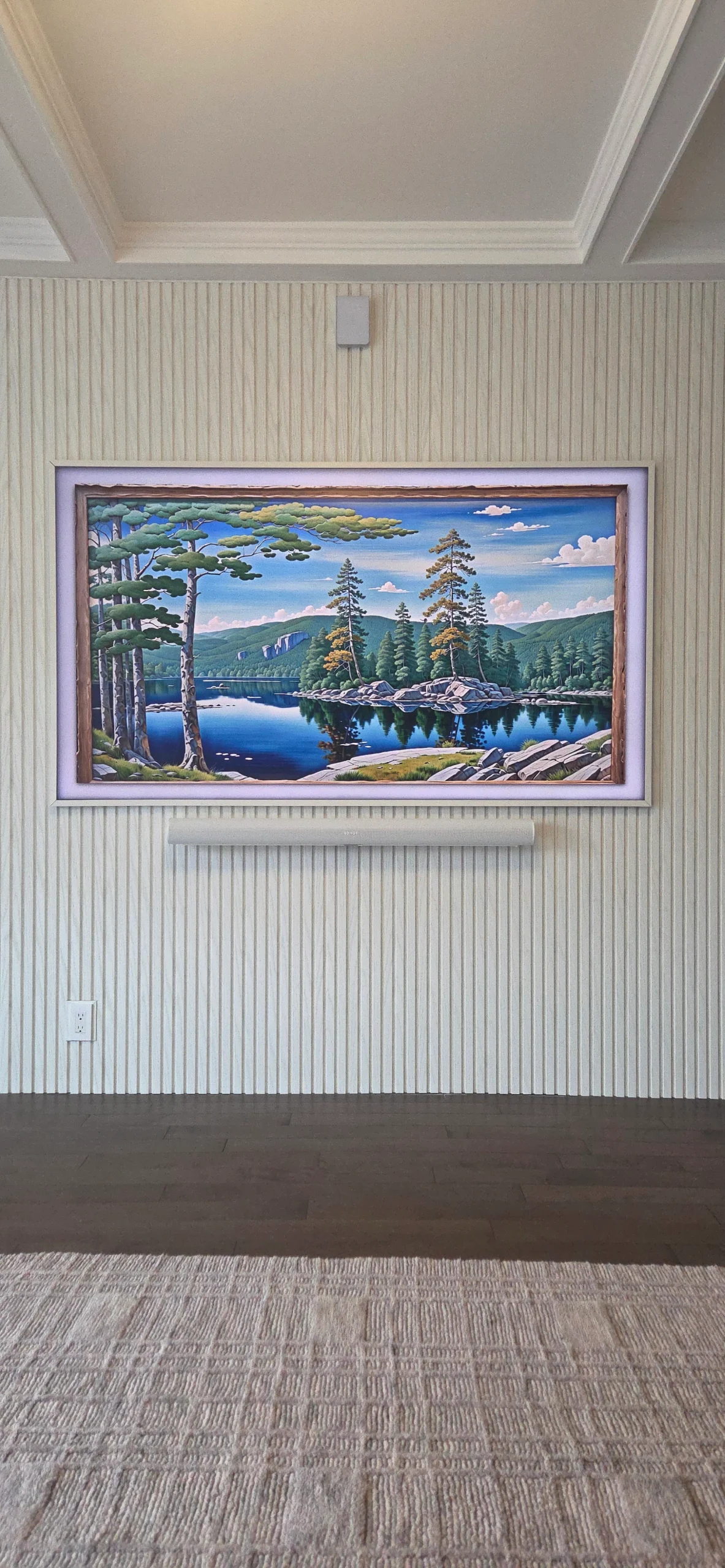

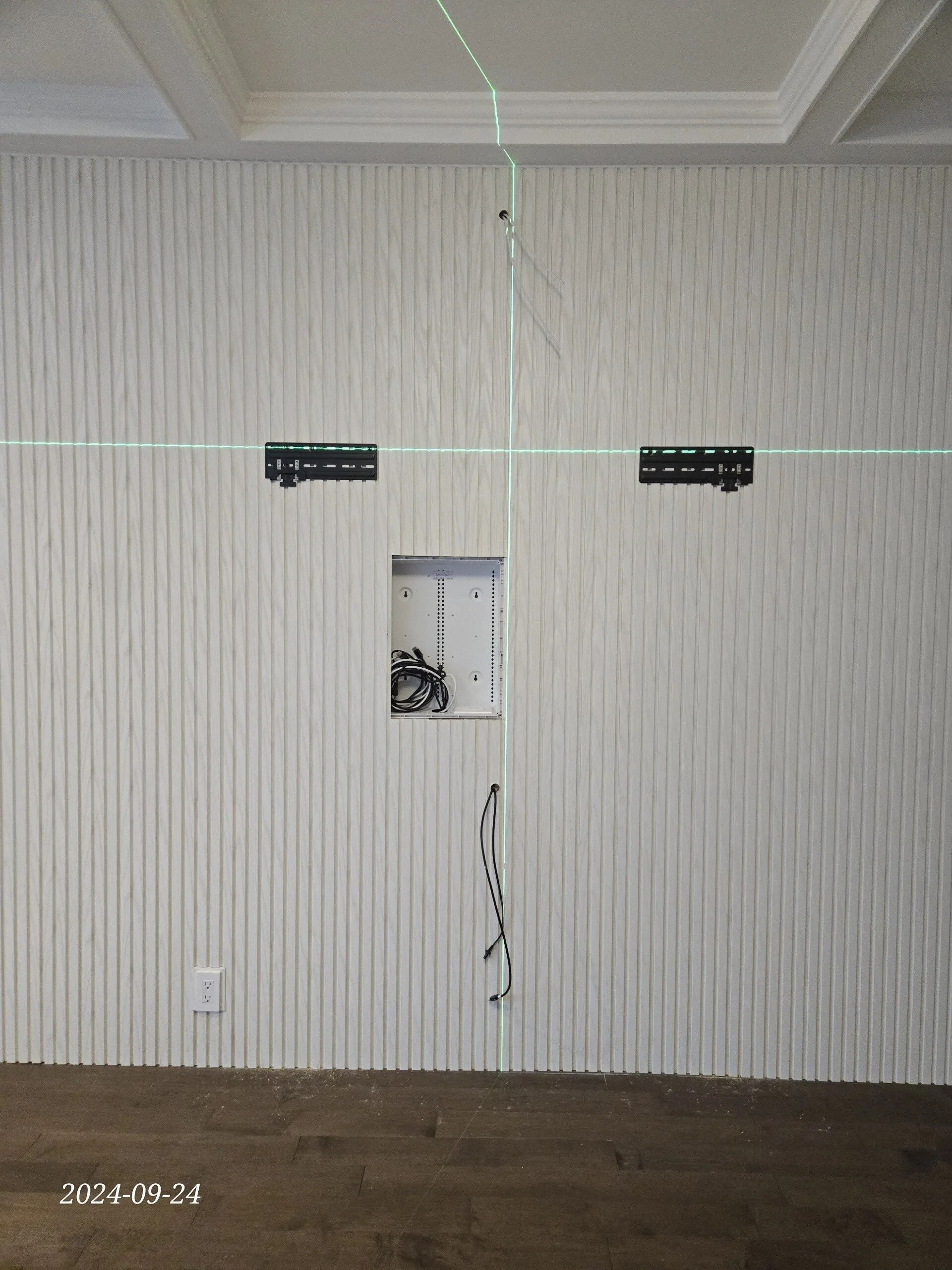

SetupTeam coordinates Frame TV installations with Sonos installation in Toronto and UniFi network installation as a single-scope project. The photos below show a Toronto home at rough-in stage and the same wall with the finished 85-inch Frame TV, Sonos Arc Ultra soundbar, and UniFi access point.
This coordination extends to home cinema installation for homeowners planning a full living room AV system. SetupTeam scopes all elements together — eliminating duplicate visits and trades conflicts.
What size Samsung Frame TV fits which room?
The Frame ships in 32, 43, 50, 55, 65, 75, and 85 inch sizes. Sizing is partly viewing distance and partly wall scale — the conventional guideline puts the screen diagonal in inches at roughly 0.84 times the seated distance in inches, but a Frame also has to read in proportion to the wall it hangs on.
That second half matters more here than on an ordinary television, because the screen spends most of its life showing a still image. A panel sized only for viewing distance can look undersized as a picture.
- 32 and 43 inch — powder rooms, kitchen nooks, butler’s pantries, and home-office walls, where the Frame is an art piece first
- 55 inch — the condo great-room default, and the principal or secondary bedroom in a detached home
- 65 inch — the everyday family great room on a 9- to 10-foot ceiling, usually above a modern direct-vent gas fireplace
- 75 inch — cathedral and double-height great rooms, sized to hold its own against a four- to five-metre feature wall
- 85 inch — the largest great rooms, where a 75 would read small against the wall
How do you set up the bezel and Art Mode?
By matching the bezel to the room, then calibrating Art Mode to the light the room actually gets. The bezel runs Modern matte black, Beveled walnut, a darker-stained Beveled, or the Studio Stand where the screen sits on the floor rather than the wall.
We pick it against the wall paint and the millwork rather than from a catalogue. Warm wood trim usually takes the Beveled walnut; a modern drywall feature wall usually takes the Modern matte black.
Calibration is the part most installs skip. The ambient-light sensor is stepped to the room’s real daylight curve so the picture holds printed-canvas luminance instead of glowing like a screen. That single adjustment is what makes a Frame read as art rather than as a television showing a picture.
We finish by loading a curated starter library sympathetic to the room’s architectural vocabulary, so the Frame is doing its job the day we leave.
How much does Samsung Frame TV installation cost?
A standard Frame TV installation typically falls between CA$650 and CA$1,600. Screen size moves the number a little; what the wall is made of moves it a lot.
Fresh drywall
A feature wall or a modern direct-vent gas fireplace surround, with a recessed outlet and the One Connect cable run inside the stud cavity. The cleanest and least expensive scope.
Plaster on wood lath
Older interior walls where the substrate will not take a bracket directly. A thin painted backer plate is fixed to the framing first, and the cable often runs in a paint-matched surface raceway rather than in-wall.
Masonry, tile, or stone
Brick, porcelain, and honed stone need diamond bits at controlled speed and, on a slab, a custom steel plate spanning the face. Core-drilling for the recessed outlet is what drives the top of the range.
The other variable is where the One Connect box ends up. A box that lives in a media console below the screen is simple; one that has to reach a basement rack means a longer cable and a longer run.
Every install is quoted after we have seen the wall. We do not price a Frame from a photograph.
Frequently asked questions.
Frame TV Installation Near You in the GTA
SetupTeam serves communities across the Greater Toronto Area.
Ready to install your Samsung Frame TV?
Book a site visit or request a quote. SetupTeam confirms the wall type, One Connect approach, and full scope before any work begins — so the installation goes right on day one.
