Samsung Frame TV installation in North York
Design-stage specification, no-gap flush wall mount, recessed power outlet, in-wall Invisible Connection optical cable, One Connect Box concealment, bezel selection, and Art Mode calibration — coordinated with your designer or builder. Willowdale, Bayview Village, Lansing, Ledbury Park, Hogg’s Hollow, Don Mills, and the Yonge corridor concrete-tower condos.
Scope of a Samsung Frame TV Installation in North York
A Samsung Frame TV installation in North York covers the design-stage specification (where the art TV sits, where the One Connect Box hides, where the power outlet recesses), the no-gap flush wall mount, the in-wall route for the Invisible Connection optical cable, the bezel selection and fit, and the Art Mode calibration — done in one visit for a finished home, or coordinated across two visits (rough-in and trim) for a custom infill build.
Every Frame install starts with a wall conversation. The screen has to sit flush — that’s the point of buying the Frame in the first place — which means the wall it lands on has to give back a few millimetres of depth and the power outlet has to sit inside a recessed electrical box, not on the surface. In a finished North York home that’s a low-voltage and electrical retrofit; in a Willowdale or Lansing teardown still in framing it’s a single revision to the electrical drawings and a labelled stud bay. We coordinate with the homeowner’s designer or builder where one exists, and run the install end to end where it doesn’t. See Samsung Frame TV installation across the GTA for the broader service pattern.
No-Gap Flush Wall Mount
Samsung’s purpose-built no-gap bracket lifts the screen onto two recessed wall hooks so the Frame sits at zero millimetres proud. Drywall is forgiving; older Lansing or Bayview Village plaster is not, and a stone-clad fireplace face needs a custom mounting plate behind the cladding.
Recessed Power Outlet
A 1-gang low-profile outlet box recessed behind the screen, wired by a licensed electrician. A standard surface outlet would push the Frame 25 mm off the wall and break the flush mount — the recessed outlet is non-negotiable on every install.
One Connect Box Concealment
Samsung’s external hub takes every HDMI source, the power feed, and the optical cable. We locate it in a millwork bay, a basement equipment rack, or a back-of-wall closet so the screen wall reads as art and the box stays accessible for future source swaps.
Bezel + Art Mode Calibration
Modern, Beveled, or Studio Stand bezel matched to wall paint and millwork; ambient-light sensor stepped down to printed-canvas luminance; motion sensor configured; curated 30-image starter art set loaded against the room’s palette.
North York context: No competitor in the district publishes a dedicated Samsung Frame TV install page. The closest competitor content is a generic TV-mounting service page with one paragraph mentioning the Frame as one of many compatible models. That gap is why the design-stage spec conversation matters most in Willowdale, Bayview Village, Lansing, Ledbury Park, and the Yonge corridor concrete-tower condos — nobody else is having it.

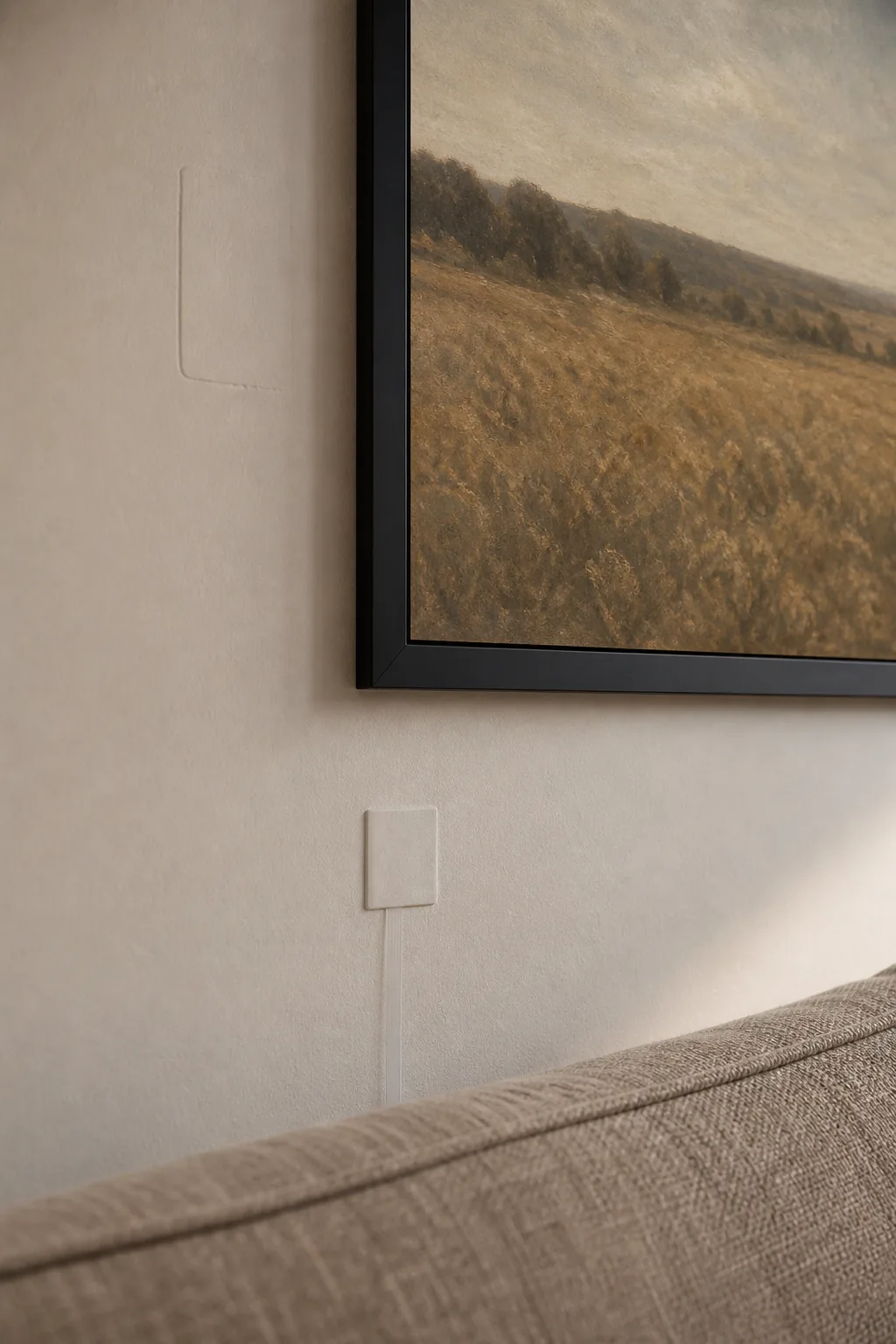

What Makes a No-Gap Flush Mount Different from a Regular TV Wall Mount
A no-gap flush mount sits the Samsung Frame TV at 0 mm proud of the wall — the screen sits dead flush, like a framed picture. A regular wall mount holds a TV 25–60 mm off the wall and is visibly a TV on a bracket. The no-gap mount is Samsung’s purpose-built bracket for the Frame; it ships with the TV and is the only mount that achieves the flush look the Frame was designed for.
The flush mount is the entire reason most North York homeowners buy the Frame. A wall-hung black TV — any TV — reads as a piece of consumer electronics; a flush-mounted Frame in Art Mode reads as art. The no-gap mount lifts the screen onto two heavy-duty hooks recessed into the wall. The Frame’s back is shallow and ridged to clear the hooks, and the screen drops down into position with no visible gap, no spacer, and no shadow line. That precision is the install. The wall has to be plumb across the full footprint of the screen — a 75-inch Frame is a meter and a half wide, and even a millimetre of bow shows as a hairline gap on one corner. Where the wall is finished and a flush mount needs to coexist with general flat-panel mounting in other rooms, we coordinate with professional TV wall mounting across North York.
The recessed outlet is non-negotiable. A standard surface outlet would push the screen 25 mm off the wall and break the flush mount entirely — the install includes a 1-gang recessed low-profile outlet box mounted behind where the screen will sit, wired by a licensed electrician (we coordinate with yours or bring our own).

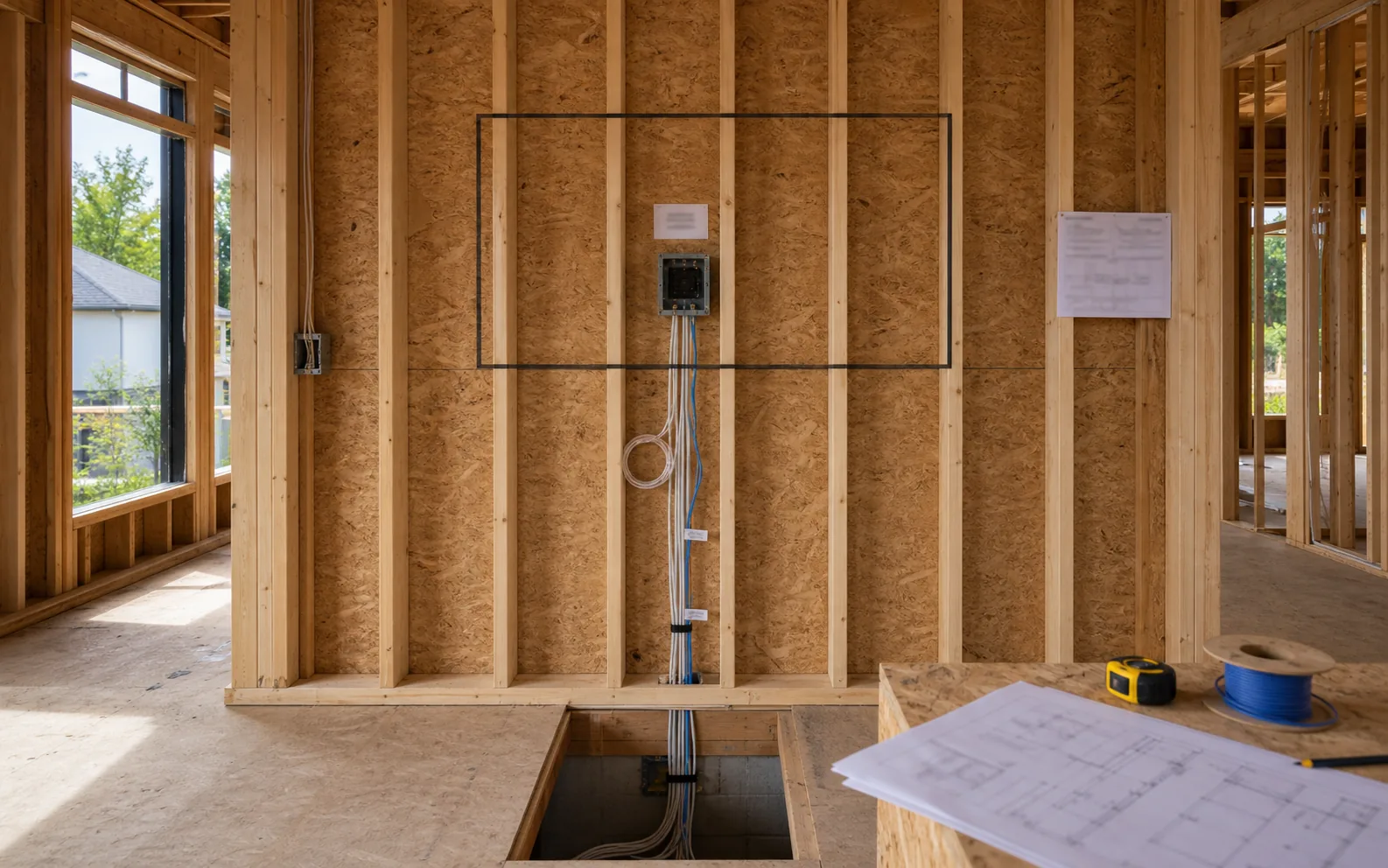

Spec a Frame TV Before Drywall in a Willowdale or Lansing Custom Infill
Yes — and the conversation should happen during framing, before the electrician runs general-purpose outlets. Specifying the Frame TV at the framing stage of a Willowdale, Lansing-Westgate, Bayview Village, or Ledbury Park custom infill costs a fraction of retrofitting after drywall and produces a perfectly flush install with no visible cables. Retrofitting after move-in works, but it’s surgery — and design-conscious homeowners notice the difference.
North York is the most active custom-infill teardown-rebuild market inside the City of Toronto. The Willowdale and Lansing belt alone permitted hundreds of new single-family builds replacing 1950s–1960s bungalows on generous lots with 4,500–7,500 sq ft architect-designed homes. In any of those builds the Frame TV is one of the few pieces of consumer electronics that benefits from being specified during architectural design. The same low-voltage planning intersects with pre-wire planning during a North York teardown rebuild — the Cat6 backhaul, the AP drops, and the One Connect cable path all want to be drawn into the framing plans together.
Retrofitting after drywall closes is possible but adds either a surface-mount cable cover (acceptable in some rooms, never acceptable to a designer in a hero room) or fishing the cable down through an existing wall cavity, which depends on what the original framer left in there.
- Labelled stud bay marked where the screen will land — finished-floor centreline confirmed
- Recessed outlet location specified on the electrical drawings, not added at trim
- In-wall path drawn for the 5 m / 10 m / 15 m Invisible Connection cable
- One Connect Box bay located — cabinetry, basement rack, or back-of-wall closet
- Coordination with the architect, builder, and electrician at the framing-stage walkthrough
- Return visit for screen install, bezel fit, and Art Mode calibration after paint

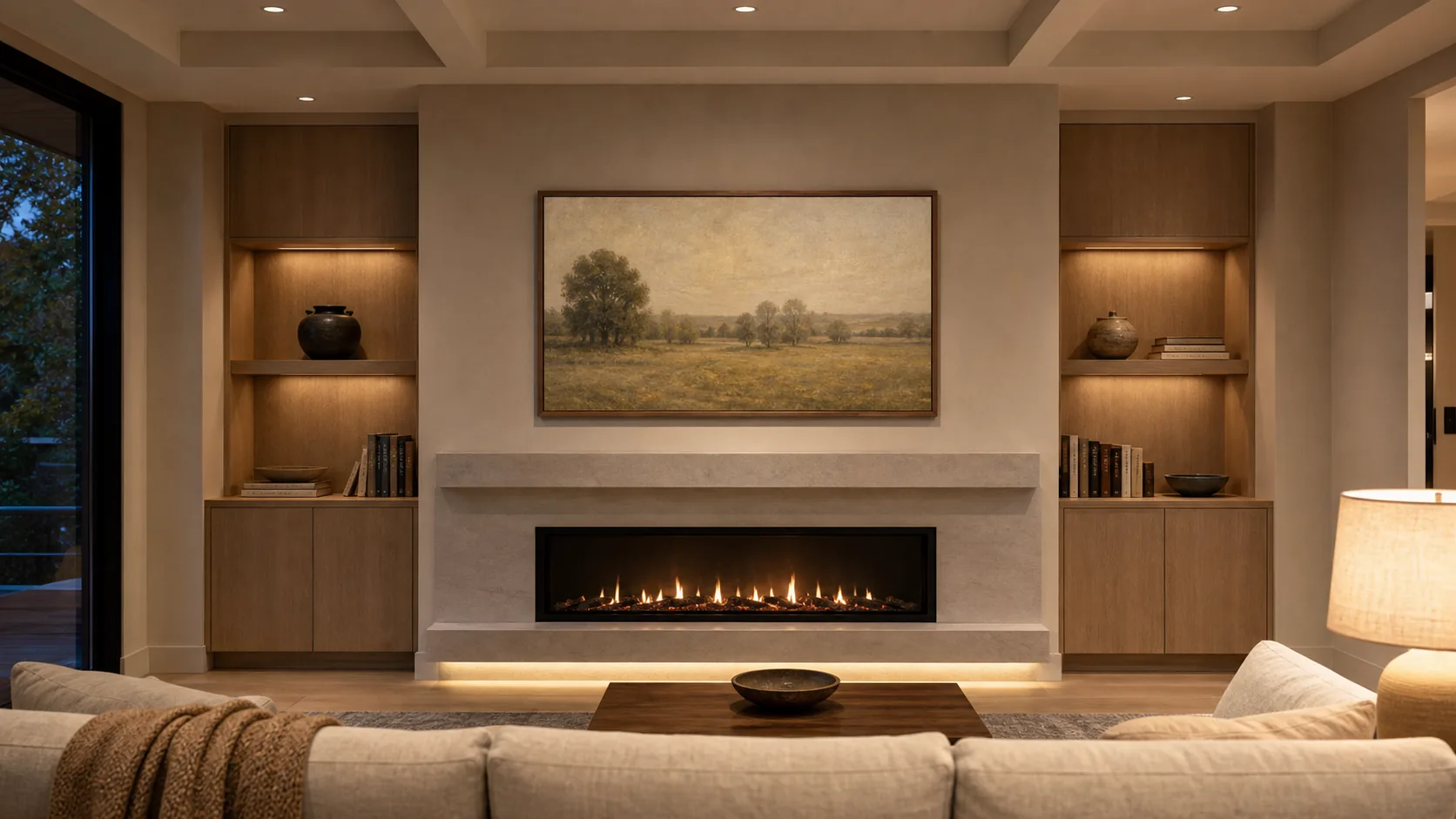

Frame TV Installation Over a Fireplace in Bayview Village or Bedford Park
Over-fireplace Frame TV installs in North York work in two ways: spec’d during the fireplace design (a recessed niche above the firebox sized for the screen, with a labelled stud bay for the recessed outlet and the cable path), or retrofit onto an existing limestone, slate, or porcelain-clad fireplace face using a flat back-of-screen mounting plate fixed to the cladding substrate. Heat clearance is the deciding factor — the Frame TV’s published operating range needs roughly 15 cm of clearance above a gas fireplace mantel, and 30 cm above a wood-burning firebox.
Over the fireplace is the single most common Frame TV install scenario in North York custom infills, and it’s also the one most likely to be specified wrong. The Frame is the right TV for an over-mantel install precisely because it disappears into Art Mode when off — the design objection homeowners have to a black TV looming over a fireplace mantel goes away. But the install needs the wall behind the screen to be plumb, the outlet to be recessed (a surface outlet above a mantel reads worse than the cable it tries to hide), and the heat envelope to be respected.
A modern direct-vent gas insert with a clean mantel cap and 15 cm of clearance is the easy case — the Frame mounts on its no-gap bracket, the outlet recesses above the mantel inside the framed wall, and the Invisible Connection cable drops down inside the wall to a One Connect Box hidden in the cabinetry beside the fireplace. A masonry wood-burning fireplace with a stone face needs more: a custom steel mounting plate spans the stone substrate, the outlet is core-drilled through the chase, and a fireplace-grade heat shield sits between the mantel and the screen if the clearance is tight. Either way, the Frame’s slim profile and recessed cable mean the finished look is screen-as-art rather than screen-on-mantel. For broader media-room work that pairs an over-fireplace Frame with surround audio and projection in a dedicated space, we also handle home theatre and media room installation.
Where the One Connect Box Lives in a North York Custom Build
One Connect Box installation in a North York custom build means locating the box somewhere ventilated, accessible, and out of sight — then running the 5-metre Invisible Connection optical cable from the box to the back of the screen, in-wall during framing or surface-routed through millwork in a finished retrofit. Common box locations are a millwork bay in the family-room cabinetry, a basement AV rack with a cable chase up the wall, or a back-of-wall closet on the opposite side of the TV wall.
The One Connect Box is the reason the Frame TV has only one cable running to the screen. Every HDMI source — cable box, gaming console, Apple TV, soundbar feed, Blu-ray — plugs into the box, not the TV. Power feeds into the box too. The single output is the 5-metre Invisible Connection optical cable, which is a near-transparent fibre-optic ribbon carrying both signal and power up to the screen. For the install to look right, the box needs a home that is ventilated (it generates mild heat under load), accessible (sources get swapped over the life of the install), and invisible (the whole point is the screen wall reads as art).
The three common North York patterns are a millwork bay inside the family-room cabinetry; a basement equipment rack tied to structured network and equipment-rack installation with a 2-inch low-voltage chase routed during framing from the back of the TV wall down through the first-floor cavity; or a back-of-wall closet directly behind the TV wall, with the cable passing through a single small wall penetration. The Invisible Connection cable can be ordered in 5 m, 10 m, or 15 m lengths; the 15 m run is what makes the basement-rack location practical for most family-room installs.
Cabinetry Bay
Box on a vented shelf inside the family-room millwork, cable run up the inside of a cabinet stile through a grommet. Favoured by infill builds where the cabinetry is being designed alongside the TV install.
Basement Equipment Rack
2-inch low-voltage chase routed during framing from the back of the TV wall down to a dedicated rack closet or AV room. Favoured by larger Bayview Village and Hogg’s Hollow homes with a planned rack location.
Back-of-Wall Closet
Cable passes through a single small wall penetration to a usable closet directly behind the TV wall. Favoured by older Don Mills and Bedford Park homes where the floor plan happens to support it.

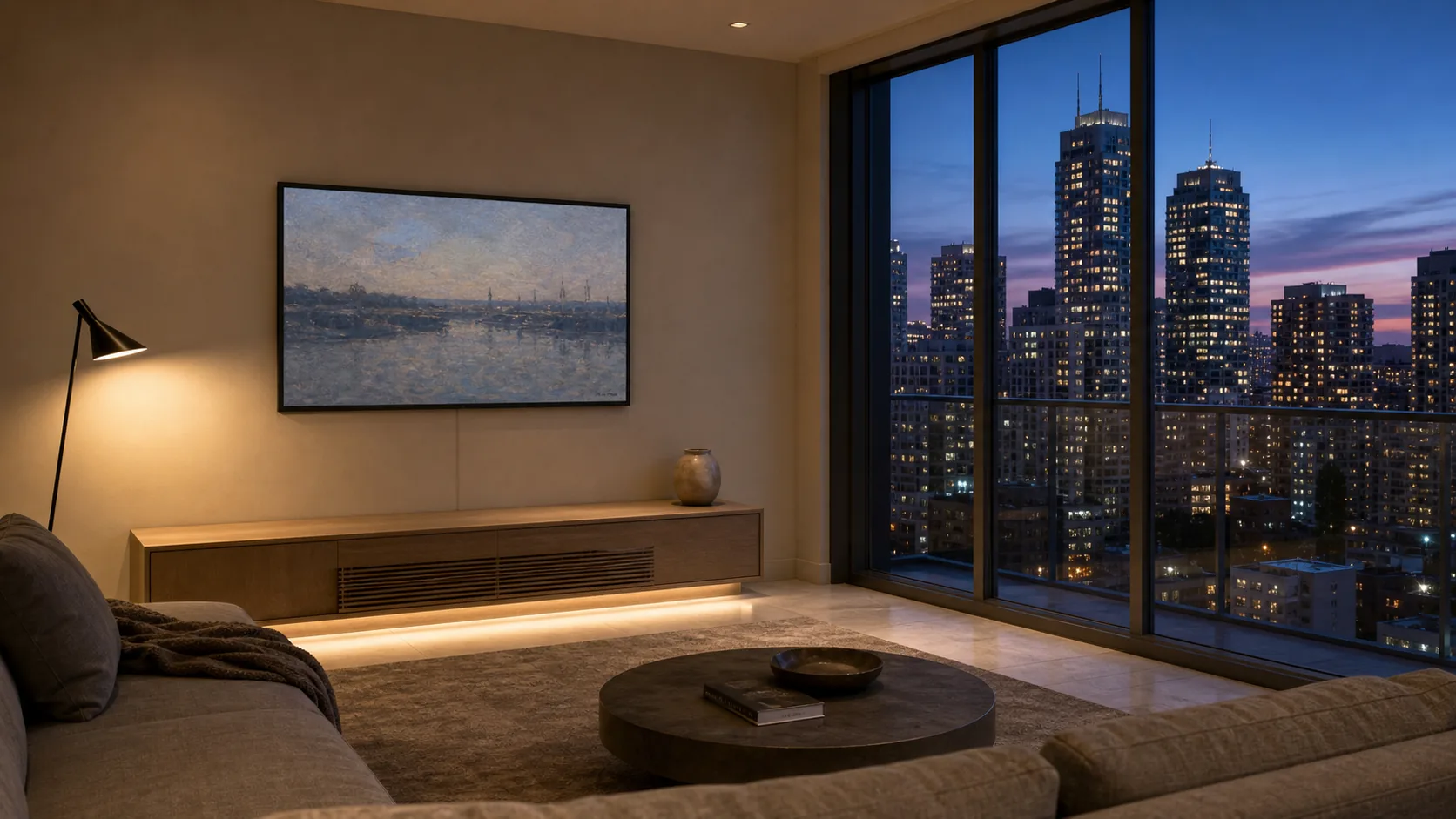

Installing a Frame TV in a North York Centre or Yonge Corridor Condo
Yes — and the Frame is actually the right TV for a concrete-tower condo install in North York Centre, Yonge & Sheppard, or Yonge & Finch because the single 5-metre Invisible Connection optical cable is far easier to route on a concrete demising wall than the dozen cables a regular TV install needs. The trade-off is that the cable usually ends up in a low-profile paint-matched surface raceway rather than inside the wall, because most condo demising walls are poured concrete that cannot be opened.
Concrete towers along the Yonge corridor from Sheppard north to Finch and Steeles are one of the densest high-rise residential clusters in Canada. The dominant Frame TV scenario inside those units is a 55- or 65-inch screen on the main great-room wall, with the homeowner moving in already owning the TV. The install constraint is the wall itself — most demising walls in these buildings are poured concrete, and the interior partition walls are often a hybrid of light-gauge steel framing and concrete board that condo bylaws prevent opening. That means the Invisible Connection cable cannot run in-wall.
The two clean solutions are a low-profile paint-matched surface raceway running from the back of the screen down to the One Connect Box (typically sitting on top of a TV console or inside a media cabinet at floor level) — a 3 mm-tall flat raceway in the same wall colour disappears at viewing distance — or a millwork-integrated install where the homeowner is adding a fitted media wall during their initial move-in renovation, with the box living inside the millwork and the cable hidden by the cabinetry face. The recessed outlet is still required for the flush mount; in a concrete-wall install, a licensed electrician installs a low-profile recessed outlet using a surface-mount adapter plate. Building management approval is occasionally required for the wall penetration — we coordinate with the property manager when the building requires it, the same way we do for Wi-Fi optimization across the North York concrete-tower corridor.
Which Frame Size Works in Which North York Room
The Samsung Frame TV ships in 32, 43, 50, 55, 65, 75, and 85 inch sizes. Sizing the Frame is partly viewing distance, partly wall scale, and partly the role the screen plays in the room. The conventional viewing-distance rule (screen diagonal in inches roughly equals 0.84 × seated distance in inches) still applies, but the Frame is also an art piece on a wall and the size choice has to read at viewing distance and at art distance — when the room is empty and the TV is showing a landscape painting on Art Mode. Where the choice is purely about screen size on a wall, the supporting page is TV wall mounting in any size across North York.
32-inch · Art-Piece Niches
Powder room, butler’s pantry, kitchen-banquette nook. A deliberate art-piece choice that can also play a recipe video when needed — not a viewing TV.
43-inch · Bedrooms
Principal-bedroom default in any infill and the secondary-bedroom Frame in larger estates. Pairs naturally with a 65 in the family room.
55-inch · Yonge Corridor Condos
The right scale for a 700–1,200 sq ft Yonge corridor condo great room or a principal-bedroom feature wall — reads at the typical sectional-to-screen distance without overwhelming the room.
65-inch · Family Rooms
The most common North York fit. Right scale for a 4–5 metre seated viewing distance over a Willowdale family-room fireplace mantel.
75-inch · Great Rooms
Larger Willowdale or Bayview Village great-room walls where the mantel sits on a 4-metre-wide feature wall, which most modern infills do.
85-inch · Estate Tier
Bridle Path, Hogg’s Hollow, St. Andrew-Windfields. The room scale supports it and the homeowner wants the art piece to read across an open-concept great room.
How Art Mode Actually Looks in a Hogg’s Hollow or Don Mills Interior
Art Mode in a Hogg’s Hollow estate or a Don Mills mid-century-original interior looks like a framed canvas on the wall — provided the install gets the bezel, the ambient-light dimming, the motion sensor, and the curated art library right. The screen brightness has to match the surrounding wall light or the picture reads as a glowing TV; the motion sensor has to know when the room is empty so it doesn’t waste pixels; and the loaded art has to be matched to the room’s palette so it reads as deliberate design.
Art Mode is the feature that makes the Frame worth the install. When it’s right, a houseguest in a Don Mills 1957 original or a Hogg’s Hollow estate looks at the wall and sees a framed landscape — they don’t register that the art TV is a screen at all. When it’s wrong, they see a TV showing a picture.
Three settings make the difference. The first is the ambient-light sensor calibration: the Frame measures the room’s light level and dims the screen to match. Out of the box the calibration tends to run slightly too bright; we step it down so the screen luminance reads at the same value as a printed canvas in the same light. The second is the motion sensor: the Frame can wake when it senses someone walk in and sleep when the room is empty, which both saves panel life and avoids the picture glowing into an unoccupied room. The third is the loaded art — the Frame ships with a small free collection and a paid Samsung Art Store, plus the ability to load any image file. Design-led North York homeowners — especially in Hogg’s Hollow, the Bridle Path, and the design-conscious portions of Don Mills and Lawrence Park — want a curated set that matches their interior palette. We load a starter collection of high-resolution images in the room’s tonal range and show the homeowner how to swap them seasonally. Where the Frame ties into a wider Control4 lighting and scene routine, see whole-home Control4 automation in North York.
The bezel completes the illusion: a Modern bezel in matte black against a charcoal wall, a Beveled bezel in walnut against a warm-wood-and-cream interior, or the Studio Stand if the screen is freestanding on a console.
What a North York Frame TV Install Costs
A standard Samsung Frame TV installation in North York typically falls between CA$650 and CA$1,400 depending on screen size, whether the wall is drywall or masonry, whether the outlet needs recessing (almost always yes for a true flush mount), whether the One Connect Box runs in-wall or to a raceway, and whether the install is a single screen or a multi-Frame configuration. Custom-infill new-build installs spec’d during framing are typically lower-cost because the rough-in work is happening anyway.
The variables are real. A 55-inch Frame on a drywall partition wall in a North York Centre condo with a paint-matched surface raceway is the simple end of the range. A 75-inch Frame on a stone-clad over-fireplace mount in a Hogg’s Hollow custom infill with the One Connect Box running 15 metres in-wall to a basement equipment rack — and a coordinated electrician installing a recessed low-profile outlet behind the screen — is the higher end. Multi-Frame installs (two or three Frames on a Bridle Path gallery wall) price as additive single installs with a small efficiency credit.
We give every estimate as a written fixed price after a brief on-site or photo-and-measurements call. The price covers all hardware (the no-gap mount ships with the TV, but specialty masonry mounting plates, recessed outlet box, and any surface raceway are extras when required), the labour, and the Art Mode calibration. The recessed outlet itself usually requires a licensed electrician — we either coordinate with yours or supply ours, and the electrical work is line-itemed separately so you can see recent SetupTeam work and reviews alongside the line-by-line scope.

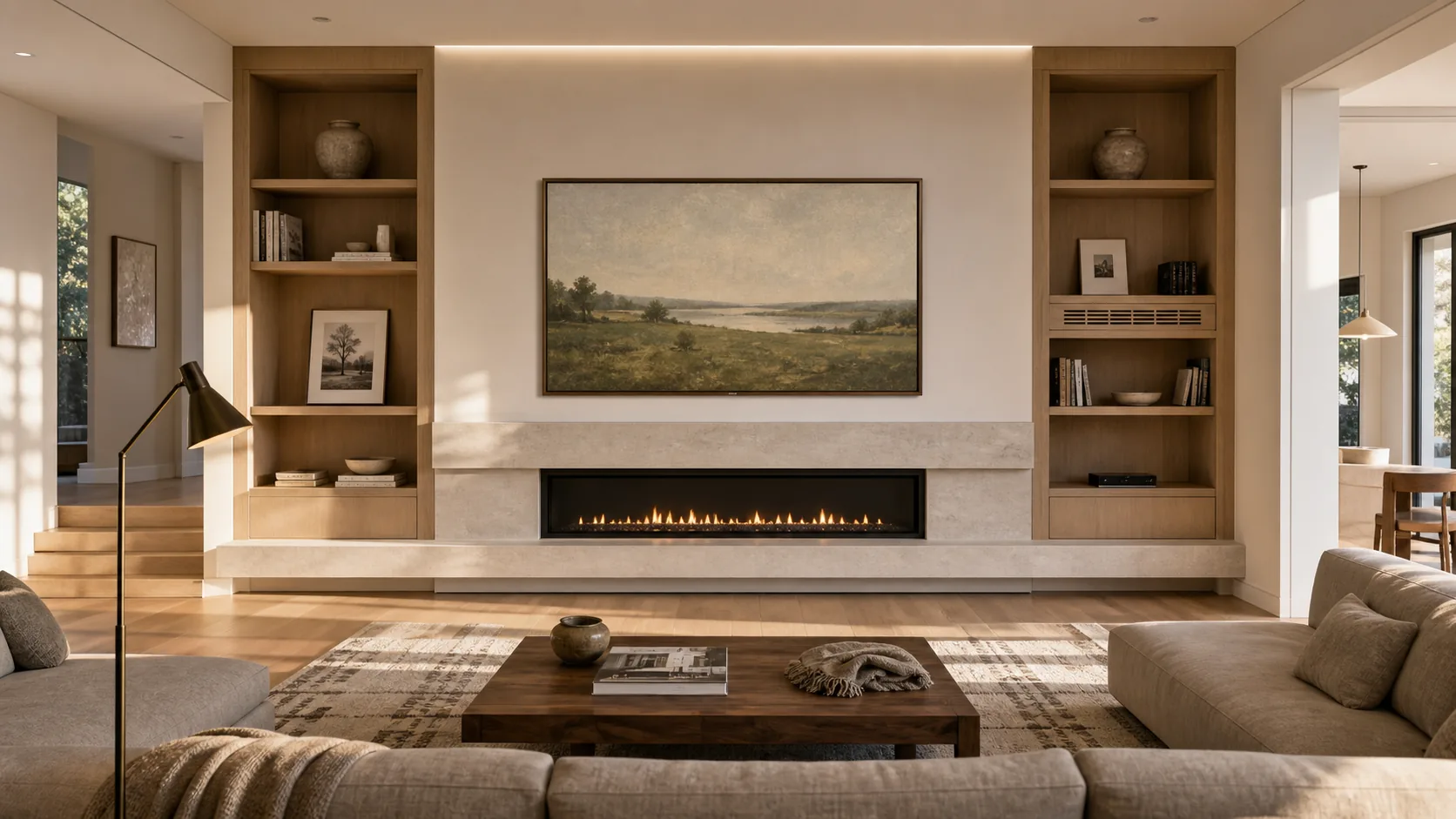

Two Frame TVs in a Willowdale East Custom Infill
A newly-completed 5,800 sq ft custom infill near Yonge and Sheppard, on a 50-foot lot south of Finch, came to us at the framing stage with two Frame TVs already on the architect’s electrical drawings. The brief was straightforward: a 75-inch Frame in the main-floor family room over a honed limestone gas-fireplace surround, and a 43-inch Frame in the principal-bedroom feature wall above a custom millwork dresser. Both flush, both with recessed outlets, both with cables routed in-wall before drywall closed.
We attended a framing-stage walkthrough with the builder, marked the two stud bays, agreed the outlet positions with the electrician, and confirmed the cable paths. The family-room Invisible Connection cable ran 14 metres in-wall down to a basement AV rack — a single 15-metre run with no in-wall splice. The bedroom run was 5 metres in-wall to a One Connect Box concealed inside the dresser millwork on a vented shelf. The basement AV rack location was set at the framing meeting so the cable could become part of the as-built drawings.
Bezels were Beveled walnut on both screens, matched to the interior designer’s white-oak millwork and warm-stained baseboard package. Art Mode was calibrated against the family-room recessed lighting and the principal-bedroom sconces; a curated 30-image art set was loaded from the homeowner’s photography collection paired with Samsung Art Store landscape paintings sized for the 75 and 43 screens.
Planning a North York Frame TV install?
Framing-stage spec, over-fireplace retrofit, gallery-wall multi-Frame, or a Yonge corridor condo — tell us the property and the screen sizes. We’ll respond with a written fixed-price estimate.
