Wi-Fi Optimization in North York
Network design built around the decade your home was framed: a 1950s bungalow retrofit, a teardown rebuild pre-wired before drywall closes, a poured-concrete high-rise suite, or a Don Mills mid-century original. Serving Willowdale, Bayview Village, Lansing, Newtonbrook, Don Mills, Hogg's Hollow, the Bridle Path, and the Yonge corridor towers.
Four decades of construction share a single street, and the network fails differently in each.
Nowhere else in the GTA happens quite this way. Walk one residential street in Willowdale or Bayview Village and you pass a 1950s postwar bungalow, a 2010s or 2020s custom teardown rebuild, and a poured-concrete tower visible from the front porch: three structures built decades apart, three separate problems, three separate fixes.
Take a single block in Willowdale East, Bayview Village, or Lansing-Westgate. At one end sits a 1957 split-level, original owner, original plaster-on-blueboard walls, hardwood floors, a single ISP gateway in the basement that barely reaches the main floor. Four doors down, a 2021 teardown gave way to a 7,200 square foot infill: three above-grade levels, a finished walkout, a garage with a primary suite built over it, and an electrician's low-voltage scope that left two Cat5e drops in roughly the wrong places. Across the street, visible from both porches, a 38-storey concrete tower at Yonge and Sheppard. Three lots, three problems, three designs.
1950s–1960s Postwar Bungalow (Willowdale, Lansing, Newtonbrook, Bathurst Manor)
Original plaster-on-blueboard walls, standard in 1950s and 1960s construction here, cut 5 GHz signal harder than modern drywall ever does. A router sitting in the basement utility room, where the ISP line comes in, cannot reach a rear bedroom at the far end of a long bungalow footprint no matter what model it is. One well-placed wired access point on the main floor, fed by Cat6 run along the joists in the basement ceiling to a central hallway or kitchen spot, is the fix.
2010s–2020s Custom Infill (Willowdale, Bayview Village, Lansing)
A 2024 rebuild commonly runs 6,000 to 8,500 square feet over three above-grade levels and a slab-on-grade walkout, with cathedral ceilings, glass stairwells, and stone or steel structural elements that stand between mesh nodes. Set a three-pack mesh kit in the family room and the third-floor primary suite will not see full speed, because backhaul degrades crossing several floors and structural walls. Four to six wired access points on a UniFi or Ruckus system is the right build, planned during framing where possible, retrofitted after move-in where not, at a real cost difference between the two.
Poured-Concrete Condo (North York Centre, Yonge & Sheppard, Yonge & Finch)
Concrete swallows 5 GHz and 6 GHz signal at a rate wood-framed drywall never approaches, so a router in the open living area cannot cross a structural concrete wall to reach the primary bedroom. Mesh often fails here too, since node-to-node backhaul cannot punch through the same concrete. A single wall-mounted access point in a hallway or kitchen, aimed with nothing blocking it across the unit, usually solves it, sometimes with a second ethernet-backhauled unit added for an L-shaped or fully enclosed bedroom wing.
Multi-Generational Device Load (district-wide)
Multi-generational households run at a higher rate here than in most of the GTA, concentrated in the district's Persian-Iranian, Korean, and Chinese communities, often connecting 60 to 120 devices at once, well above the roughly 40-device average elsewhere. Two adults and two laptops is not the design target. Four working adults, three school-age kids, two grandparents on tablets, a dozen smart-home devices, six cameras, and several streaming boxes running together is, and whichever era-based failure mode already exists gets worse under that load.
When does the pre-wire conversation need to happen?

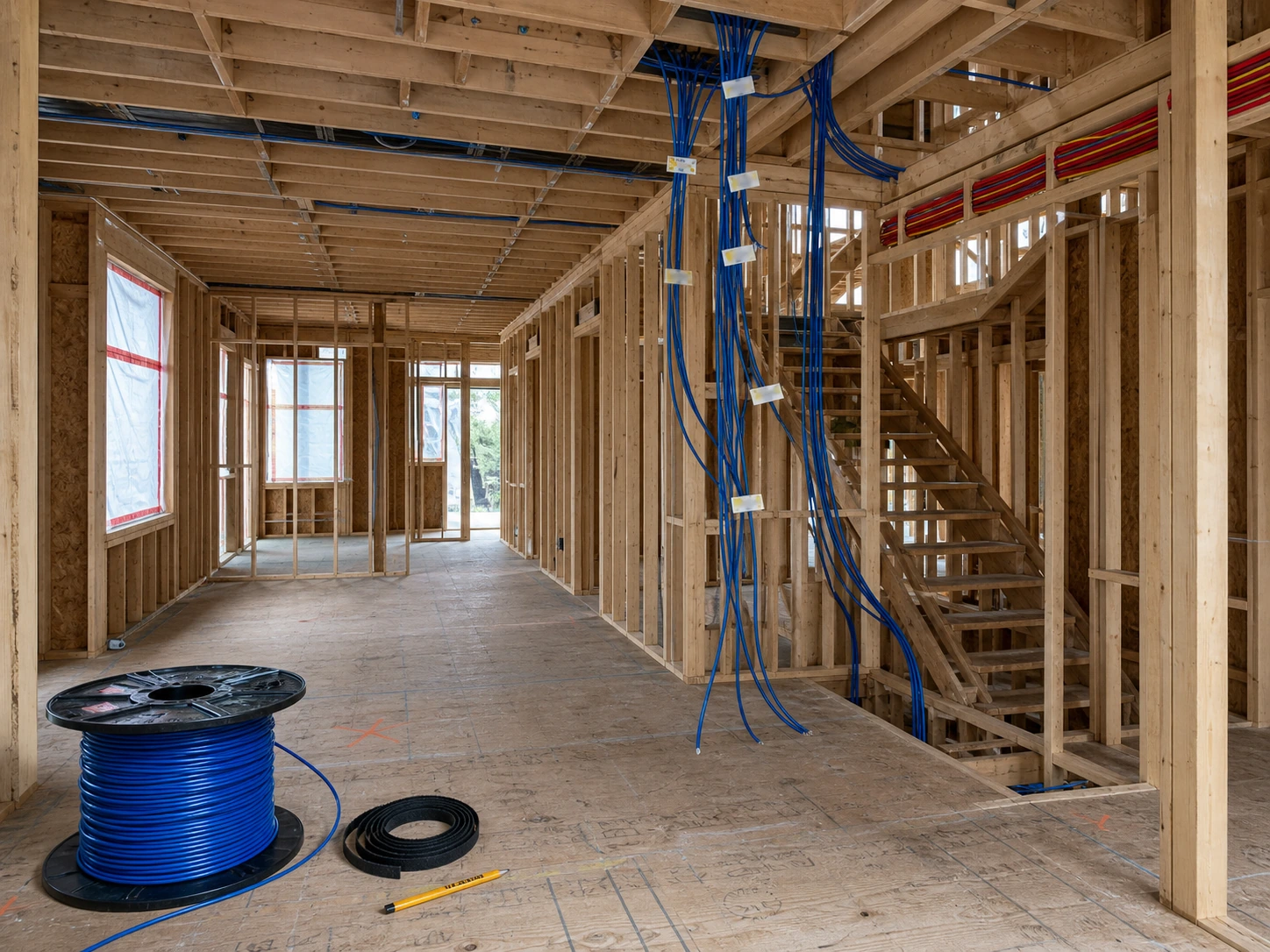

During framing, before drywall closes. Cat6 pulled while interior walls stand open costs a fraction of a retrofit cable pull after move-in, and the access points land at the correct ceiling locations instead of wherever a fish tape happens to reach.
This district runs the busiest high-end teardown market inside the City of Toronto. Willowdale East, Willowdale West, Bayview Village, Lansing-Westgate, Newtonbrook, and Bayview Woods-Steeles together produce hundreds of rebuilds a year, 1950s and 1960s bungalows on generous lots swapped for 5,000 to 8,500 square foot custom homes. The single decision with the biggest downstream cost happens during framing, often before the homeowner has thought about Wi-Fi at all.
Most of these builds get pre-wired against a builder's standard low-voltage spec: two or three Cat5e drops to the bedrooms, one to the family room. That spec made sense in 2008. It fails on every count in 2026. Cat5e cannot keep pace with Wi-Fi 6, 6E, or 7 access points, and bedroom drops serve a desktop computer that will never exist. What the house needs is ceiling drops in the central hallway, the second-floor landing, the third-floor primary suite hallway, the walkout, and ideally an outdoor-rated spot on the rear terrace, none of which sit in a standard electrician's rough-in scope.
A proper pre-wire runs in three stages against the build schedule. During design, once the permit drawings are issued and before framing starts, we mark access-point locations on the floor plan along with the rack-room spot, structured-wiring home runs, outdoor drops, and any future camera, audio, or smart-home runs. During framing, once sheathing is up but before insulation and drywall, we coordinate with the electrician's low-voltage trade to pull Cat6 home runs back to the closet. The hand-off package is a marked-up floor plan with every drop location, cable type, length, and finish spec.
Everything after drywall finishes at the homeowner's pace, sometimes right away, sometimes months later alongside the smart-home and audio work. Access points go up at their planned spots, the gateway and PoE switch land in the rack, the network gets configured (SSIDs, VLANs, firmware, radio settings), and the system ties into whatever Control4, Sonos, or Lutron scope the rest of the build includes. The dollar gap is real: a six-AP wired system pre-wired during framing on a 7,000 square foot Bayview Village rebuild typically lands between $7,500 and $14,000 installed. Retrofit the same system after move-in and the price often doubles or triples, for a worse result.
- Architect drawings review—AP locations, rack room, structured wiring home runs marked before framing
- Coordination with the electrician's low-voltage trade during framing
- Cat6 or Cat6a home runs to every planned ceiling AP location
- Outdoor-rated drops for terraces, pool areas, and detached structures
- Hand-off documentation: marked floor plan, cable type and length, finish specs
- Post-drywall finish at the homeowner's pace—APs mounted, rack populated, network configured
- Integration with Control4, Sonos, Lutron, or whatever smart-home stack the build already includes
Six neighbourhood tiers, six different briefs.
The housing stock here breaks into six tiers: the 1920s and 1930s wealthy enclaves, the 1950s and 1960s postwar bungalow belt, the 1953 Don Mills mid-century plan, the 1970s and 1980s townhome and condo wave, the Bridle Path mega-estate tier, and the Yonge corridor concrete-tower cluster. Each one changes both the scope of the work and the right design.
Hogg's Hollow & York Mills
The heritage tier: 1920s and 1930s wealthy enclaves holding some of the city's most architecturally significant homes, many still framed the old way, with a wall cavity that makes cable fishing a different job than in a postwar platform-framed bungalow. The standard brief is a careful retrofit, cable routed around original interior finishes, a wired primary access point in a central hallway, a secondary unit reached through a stair-stack chase upstairs. Some of the most rewarding heritage jobs we take on anywhere in the GTA.
Willowdale, Bayview Village, Lansing, Newtonbrook
The postwar-bungalow-and-teardown belt, and by a wide margin the busiest Wi-Fi market in the district. The same street can hold a 1957 original-owner bungalow beside a 2024 custom infill, and we work both kinds often. Bungalow brief: one wired access point on the main floor, sometimes a mesh secondary for the basement. Infill brief: four to six wired access points on a UniFi or Ruckus system, ideally planned during framing.
Don Mills & Banbury-Don Mills
Home to the 1953 Macklin Hancock master plan, Canada's first planned community, still standing as a mid-century landmark: cathedral ceilings, exposed beams, plaster-on-blueboard walls, curving streets unlike anywhere else nearby. The brief works around the architecture, surface-mount or hidden wall-mount units chosen to respect the interior, cable routed through baseboard or millwork chases. Control4 installation often runs alongside this work.
Henry Farm / Don Valley Village / Hillcrest Village
1970s and 1980s planned townhomes and condos, generally wood-framed at modest square footage, with quieter RF neighbourhoods than the Yonge corridor towers. Mesh fits well here, though Hillcrest Village's concentration of multi-generational households pushes device counts past what a consumer mesh kit was built for.
Bridle Path / St. Andrew-Windfields
The mega-estate tier, home to Canada's wealthiest postal code, with properties routinely running 15,000 to 50,000-plus square feet across multiple wings and detached structures. The most complex work we take on anywhere in the GTA: six to twelve access points across the property, outdoor-rated units for pool houses, coach houses, and terraces, multiple Cat6 home runs to a central rack, integration with existing Control4 or Crestron systems.
North York Centre / Yonge & Sheppard / Yonge & Finch
One of the densest high-rise clusters in Canada, and a different brief from any detached home. One or two wall-mounted access points placed with an unobstructed shot across the unit, a single Cat6 drop from the suite's closet to the living area. The mistake we see most is a homeowner buying a three-pack mesh kit and finding out backhaul cannot cross a structural concrete bedroom wall.
What a build costs here, by era.
Cost tracks the vintage of the house, its square footage, and how much cable has to move: from a focused mesh job in a Henry Farm townhome to a full UniFi build in a Bayview Village rebuild to a multi-wing job on a Bridle Path estate, and a teardown pre-wired during framing costs well below the same system retrofitted after move-in.
Every quote follows an on-site survey or a drawings review rather than a flat package, because cable-pulling scope and the surrounding RF complexity are what set the total.
Henry Farm / Don Valley Village Mesh
$900–$2,400 installed. A TP-Link Deco, eero, or UniFi mesh kit, supplied, configured, and tuned for the neighbourhood's RF environment. No in-wall cabling, one visit, clean handoff, as long as the home fits the mesh scenario.
Postwar-Bungalow Retrofit (Willowdale, Bayview Village, Lansing)
$2,800–$6,500 installed. One well-placed wired access point on the main floor, Cat6 run through the basement ceiling, a mesh secondary for the basement where needed, gateway and switch included. The swing factor is how much cable has to move through a finished basement ceiling.
Don Mills Mid-Century Heritage
$4,200–$9,500 installed. Careful surface-mount or hidden wall-mount placement chosen to respect the original cathedral-ceiling architecture, Cat6 hidden in baseboard or millwork chases, gateway and switch included. These jobs run longer because the architecture itself limits where anything can go.
Custom-Infill Pre-Wire (Willowdale, Bayview Village, Lansing)
$7,500–$14,000 pre-wired during framing. Three to six PoE access points across three above-grade levels and a walkout, structured Cat6, gateway and managed switch, VLAN setup, integration with Control4 or Sonos where already on the build. Retrofit the same system after move-in and the price commonly runs $14,000–$26,000.
Hogg's Hollow / York Mills Heritage
$6,500–$16,000 installed. Careful cable routing through original interior finishes, two to four wired access points on the upper levels, gateway and switch included, often an outdoor-rated unit for a ravine-side terrace. Priced individually after the on-site survey.
Bridle Path / St. Andrew-Windfields Estate
From $18,000. Six to twelve access points across multiple wings, outdoor-rated units for pool houses and gatekeeper structures, a full network rack with managed switches, integration with existing Control4 or Crestron systems. Estates over 30,000 square feet priced individually after a full walkthrough.
Yonge Corridor Concrete Condo
$1,400–$3,800 installed. One or two wall-mounted access points, careful placement around structural concrete, tuned to the surrounding high-density RF, a single Cat6 drop from the closet to the living area.
Pricing Transparency
Every price comes after the on-site survey or drawings review, before any work starts. Hardware and labour appear as separate line items so you see what you are paying for. No package upsell, no ballpark guess over the phone before the truck shows up.
Six Access Points, Pre-Wired During Framing: $13,400 Saved Over Retrofit
A 2024 custom infill in Bayview Village, north of Sheppard, close to Bayview Village Shopping Centre: 6,800 square feet across three above-grade levels plus a finished walkout basement, on a 60 by 120 foot lot. A 1962 backsplit stood here until late 2022; the new build closed early 2024. Steel beams cross the open-concept main floor, stone fireplace surrounds run through the family room and primary suite, a cathedral ceiling sits over the central stairwell, and a three-car garage carries a primary-suite extension above it. The walkout basement ends in a glass curtain wall facing the rear yard.

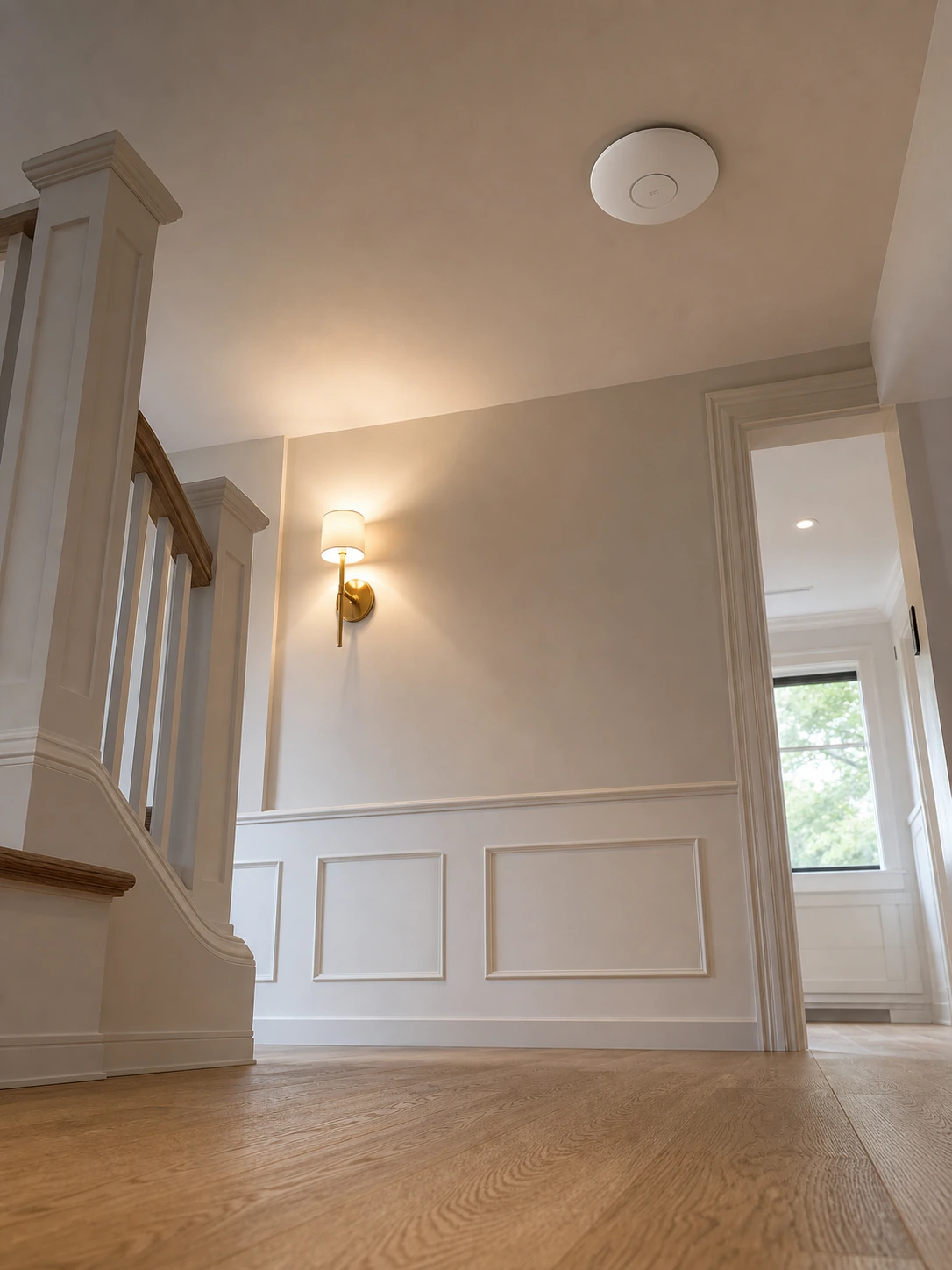

The engagement started at the drawings-review stage. Six access-point locations went onto the floor plan: main-floor central hallway ceiling, second-floor stair landing, third-floor primary-suite hallway, the garage-extension primary-suite ceiling, the walkout basement family room, and a soffit-mounted outdoor unit at the rear terrace. The rack landed in the basement utility room on a dedicated 20A circuit with proper ventilation. During framing, before insulation and drywall, six Cat6a home runs went in from each planned AP location back to the rack, plus one spare run for a future third-floor office and separate runs for security camera and Sonos zones, coordinated with those trades.

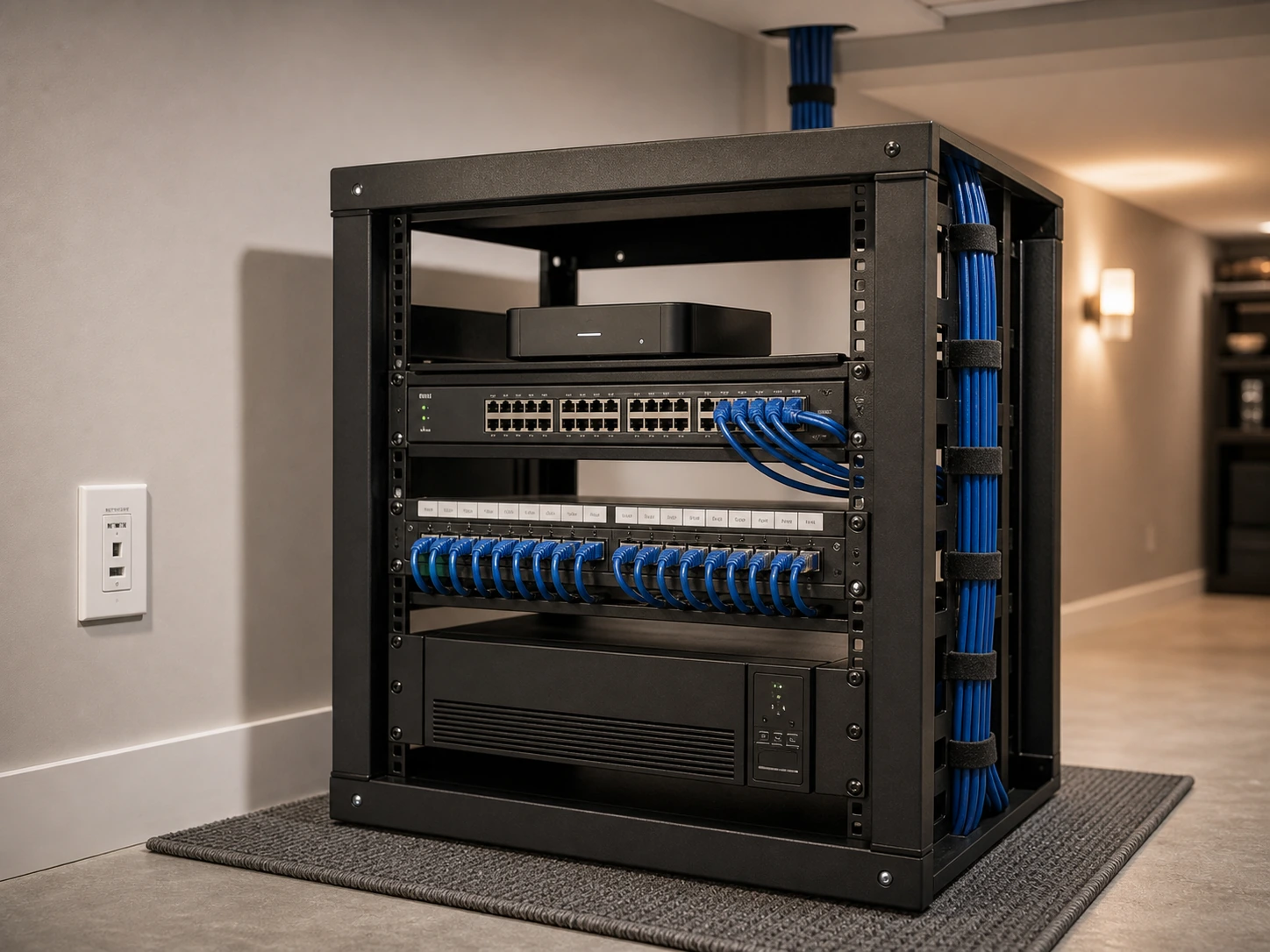

Post-drywall, the system went live: six UniFi access points (a U7 Pro at the main-floor central hallway, four U6 Pro units at the remaining interior spots, one outdoor-rated U6 Mesh at the rear terrace soffit), a UniFi Cloud Gateway Ultra and 24-port PoE switch at the rack, a four-VLAN structure (main household, IoT with 43 identified devices, security cameras isolated to the recorder, guest with rate limiting), radio settings biased toward 6 GHz where devices support it, and integration with the home's Sonos Ports across four zones and the Lutron RadioRA 3 lighting system. The post-install heatmap read a minimum 850 Mbps at every measured point, including the rear terrace and the walkout basement gym, with coverage holding across the cathedral-ceiling stairwell that had been a known mesh failure point in the family's previous home.
Pre-wire versus retrofit was the single line item that decided the homeowner's budget. Pre-wired during framing, the six-AP system landed at $11,400 all-in: UniFi hardware, six Cat6a home runs, gateway, PoE switch, and configuration. A competing integrator quoted the same scope at $24,800 after move-in, fishing six new Cat6a runs through finished walls and ceilings with patching and painting for every access cut. The homeowner saved $13,400 by making the pre-wire call during framing instead of finding the gap after the fact, which is the reason this page exists.
"We tore down a 1956 bungalow and built a 7,200 square foot home. The builder told us the electrician would handle the internet wiring, and they ran two Cat5e drops to the bedrooms. Six months after move-in our Wi-Fi was still terrible on the third floor. SetupTeam retrofitted four access points and a UniFi gateway, twice what it would have cost during framing. We tell every friend doing a teardown to call them before drywall."
"Our home is one of the original 1955 Don Mills bungalows: cathedral ceilings, exposed beams, original plaster, and a husband who refuses to let anyone drill through the architecture. SetupTeam found a way to route Cat6 through the baseboards and put two access points in spots that respect the mid-century design. The third bedroom finally has Wi-Fi for the first time in twelve years. Nothing visible changed."
"Twenty-eighth floor concrete condo, and mesh gave up at the bedroom wall. SetupTeam scanned the building's RF environment, over ninety visible networks within range, and put one wall-mounted access point at the suite's network closet with a Cat6 drop to a second unit in the kitchen. Bedroom went from 30 Mbps to 750 Mbps on the same internet plan. The two-hour visit included a level of network tuning no consumer mesh kit can do."
Have a project in mind for your North York home?
Willowdale teardown pre-wired during framing, Bayview Village infill retrofit, Don Mills mid-century heritage, Hogg's Hollow ravine lot, Bridle Path multi-wing estate, or a Yonge corridor concrete condo where mesh never worked: tell us the property and what is failing, and we will answer with a clear estimate after the site survey or drawings review.
