Commercial TV Installation in Oakville
QEW luxury and mainstream dealership showrooms along Trafalgar, Speers, and Wyecroft, the Lakeshore Road East heritage-district boutique row, Bronte Village waterfront dining and Kerr Village independents, Winston Park business-park boardrooms, and medical clinics around Oakville Trafalgar Memorial Hospital — commercial TV installation Oakville handled by a licensed and insured, manufacturer-trained crew.
How do you install a feature-wall display in an Oakville dealership showroom on Trafalgar or Speers?
A dealership showroom display installer Oakville brief is built around the showroom floor, the curtain-wall glazing, and the vehicle that sits under the screen. A feature-wall display is mounted above or behind the lead vehicle on a structural-rated wall, with brightness rated for direct south- or west-facing afternoon sun, and a cable path that keeps the floor clear so a service technician can walk a car under or past the screen on the morning of the install.
Oakville concentrates one of the GTA’s densest automotive-retail clusters along the QEW frontage on Trafalgar Road, Speers Road, and Wyecroft Road. Verifiable addresses on that strip include Oak-Land Ford Lincoln at 570 Trafalgar Road, Oakville Autos at 595 Speers Road, AMR Motors at 1071 Speers Road, and Car Lounge at 324 Wyecroft Road with a 12,000-plus square foot indoor showroom. Seven Speed Motors near the 403/QEW and Trafalgar runs one of the largest indoor showrooms in the GTA with 100-plus vehicles in stock.
The install side is different from a mall or restaurant brief in three ways. First, the lighting envelope is dominated by full-height curtain-wall glazing facing the QEW frontage, so a 350-nit consumer panel washes out by mid-afternoon. We specify 500 to 700-nit commercial panels — Samsung QMR, QHR, or QM series, LG UH5N or UH5F, NEC ME-series, or Philips Q-Line — sized to read across the showroom floor from the customer-greeting area. Second, the lead vehicle on the showroom floor sits under or next to the screen, so the install plan respects the vehicle’s position and the showroom’s walking lines, with cable paths that route inside the wall cavity or behind a structural column rather than across the polished concrete. Third, dealerships frequently want a video wall installer Oakville scope — a 2x2 or 3x3 LCD video wall behind the lead vehicle, or a direct-view LED ribbon along the back of the showroom — calibrated for uniform brightness so the wall reads as one image, not nine.
Content on a dealership feature wall is usually a manufacturer-supplied loop (model walkarounds, brand reels, dealer-tag end cards) with the dealer principal’s brand message at the start of each loop. The content management system is most often BrightSign with a manufacturer brand template, Samsung MagicInfo running directly off the display, or a SaaS platform such as Yodeck or ScreenCloud where the dealer wants to update content from a phone. The commercial TV installation hub page outlines our general process across all venue types.
High-brightness commercial panels
500 to 700 nit Samsung QMR or QHR, LG UH5N or UH5F, NEC ME-series, or Philips Q-Line panels rated to read against direct QEW-frontage afternoon sun on the dealership curtain-wall glazing.
Mounts above the lead vehicle
Structural-rated wall mounts placed above or behind the lead vehicle position, with the install scheduled so the showroom floor can be cleared for a few hours rather than a full day.
Video wall and LED ribbon options
Bezel-to-bezel 2x2 or 3x3 LCD video walls for feature-wall impact, or a direct-view LED ribbon along the back of the showroom — both calibrated for uniform colour and brightness.
Manufacturer brand-loop content
BrightSign with a manufacturer brand template, Samsung MagicInfo direct from the display, or a SaaS content platform — sized to the dealer’s content workflow and brand standards.
How do you install a commercial display inside a heritage storefront on Lakeshore Road East?
Inside a Lakeshore Road East heritage storefront, a Lakeshore Road Oakville signage installer brief respects the Town of Oakville’s downtown heritage-designated district. The display sits set back from the storefront window so it does not face the public realm directly, the mount avoids any perforation of a heritage facade element, and exterior digital signage is generally not part of the scope — the screen is an interior retail tool, not a streetside billboard.
Downtown Oakville along Lakeshore Road East runs six blocks of heritage-designated retail and dining between the Oakville Harbour and Allan Street, home to over 400 businesses. The boutique row includes Anthropologie at 159 Lakeshore Road East, Lemonwood at 182 Lakeshore Road East, and Boa Boutique at 125 Lakeshore Road East, alongside restaurants such as Plank Restobar and Cucci Ristorante. The heritage designation affects what a commercial-display install can do on a storefront facade and how an interior screen relates to the storefront window.
The typical install therefore lives entirely inside the unit. A 43 to 65 inch commercial panel is mounted on an interior side wall or back wall — not on the front-of-store window-line wall — so the storefront window reads as it always has from the sidewalk. Mounts attach to the unit’s interior framing, not to heritage trim, plaster mouldings, or original brick. Where the unit has original brick or plaster that the owner wants to preserve, we mount through a free-standing partition or a recessed pocket rather than through the heritage surface.
Content is paced for a boutique or sit-down restaurant rather than a quick-service environment — slower transitions, fewer animations, warmer colour balance, and brightness dropped at dusk so the screen does not glow out of the heritage facade after sunset. The content management system runs on a SaaS platform the operator can update from a laptop, with a small media player tucked behind the display rather than a rack-mount layout. Where the same boutique runs in-store music, a Sonos installation in Oakville sits alongside the display install on the same site visit.
Interior placement off the window line
Display set back from the heritage storefront window on an interior side or back wall so the heritage facade reads from the sidewalk as it always has.
No perforation of heritage surfaces
Mounts attach to interior framing rather than original brick, plaster, mouldings, or trim — and where preservation matters we use a free-standing partition or a recessed pocket.
Boutique-paced content workflow
Slower transitions, warmer colour balance, and a dusk-brightness drop so the display reads as part of the boutique interior rather than a streetside signage panel.
Operator-managed SaaS CMS
Yodeck, ScreenCloud, or OptiSigns paired with a compact media player — the operator updates promotions or menu features from a laptop or phone in minutes.
What does a Bronte Village or Kerr Village restaurant TV install look like?
Bronte Village waterfront restaurants and Kerr Village independents are two different restaurant TV installer Oakville briefs. Bronte runs harbour-facing picture windows, so displays must avoid washing out the lake view and handle high south- and west-facing ambient light. Kerr runs owner-operator independents with no in-house IT, so installs favour simple media players, SaaS content workflows, and quiet maintenance.
Bronte Village sits on Lake Ontario along Lakeshore Road West around the Bronte Harbour. The dining row — anchored by venues like The Bronte Boathouse and La Parisienne — runs picture-window views of the harbour, so the install plan starts with two questions the team walks through on the site visit. First, where can the display sit without competing with the lake view from the dining seats? Second, how bright does the panel need to be to read against an unobstructed south- or west-facing window in mid-summer? We typically place displays on side or back walls angled away from the window, specify a Samsung commercial display installer Toronto brief with a 500 to 700-nit panel, and use a polariser or angled mount where the operator wants the screen near the window without taking the harbour out of the dining experience.
Kerr Village along Kerr Street south of Rebecca runs a different brief. Rent in the village runs roughly eighteen to thirty dollars per square foot, which supports a 400-plus business cluster of independent owner-operator restaurants — Maro’s Bistro, Nino Panino, Stoney’s Bread Company, and the surrounding cuisine mix. These operators do not run an IT department. They want a single commercial display in the dining room or above the counter, a small media player behind the display, a content management system the operator can drive from a phone, and a phone call when the screen needs anything.
In both villages we specify commercial-grade panels rather than consumer TVs because the duty cycle and the warranty do not match a residential product. The mounting choice respects the existing wall — plaster, painted brick, drywall over heritage framing — without forcing a hidden cable chase through a finished surface. Cable paths route inside an existing wall cavity, behind a service column, or through a concealed channel above the dining ceiling. Where the dining room is large enough to need consistent guest Wi-Fi alongside the display, an Oakville Wi-Fi optimization brief sits on the same site visit.
Bronte harbour-view orientation
Displays placed on side or back walls angled away from picture windows, specified at 500 to 700 nits, so the harbour view stays the focal point and the screen still reads in bright afternoon light.
Kerr owner-operator workflow
Single commercial display, small media player behind the screen, SaaS content management the operator can drive from a phone, and a single point of contact for maintenance.
Commercial-grade panels
Samsung QMR or QHR, LG UH5N or UH5F, Philips Q-Line, or NEC ME-series — rated for the daily on-time of a restaurant service, with a commercial warranty intact in commercial use.
Wall-respecting mounts and cable paths
Tilting or articulating mounts that respect plaster, painted brick, or heritage framing — with cable paths routed inside a wall cavity or behind a service column rather than across a finished surface.
How do you install commercial TVs in a medical or dental clinic around Oakville Trafalgar Memorial Hospital?
An Oakville Trafalgar Hospital area clinic TV installer brief runs under the clinic’s infection-control protocols. Work above an examination chair, anchor drilling that produces dust, and any wall penetration near a sterile field is scheduled outside clinic hours. Displays are specified for waiting-room duty cycles with a content management system that allows the practice to update wait-time or health-education content from a workstation.
Oakville Trafalgar Memorial Hospital at 3001 Hospital Gate is operated by Halton Healthcare and anchors a surrounding professional-medical-office cluster, including the Trafalgar Professional Centre managed by NorthWest Healthcare Properties REIT. The catchment is dense with general-practice medical clinics, specialist offices, dental practices, optometry clinics, physiotherapy and rehab facilities, and walk-in clinics — a real concentration of waiting-room and exam-room display demand.
The install side runs to clinic rules rather than retail rules. Anchor drilling that produces dust is scheduled before the clinic opens or after it closes, with the affected room sealed and the surface wiped down to the clinic’s protocol before the room reopens. Any work above an examination chair, an operatory chair, or in a sterile-field-adjacent area is coordinated with the clinic’s infection-control lead. We do not run cable across a sterile-field counter or through an operatory ceiling without a covered chase.
The display brief itself is usually straightforward. A 43 to 55 inch commercial panel in the waiting room with health-education content, wait-time messaging, and the practice’s branding loop. An additional smaller display in the corridor or at the check-in counter for queue and appointment messaging where the practice runs a digital queue system. Content is managed through a SaaS platform the office manager can update from the reception workstation. Volume is typically muted with closed captions, and any patient-personal-health-information content is excluded from public-facing screens by design. Where the clinic needs structured cabling for new displays and workstations, an Oakville network installation brief sits with the display install.
Infection-control scheduling
Anchor drilling and any wall penetration scheduled before opening or after closing, with the room sealed and the surface wiped down to the clinic’s protocol before the room reopens.
Waiting-room commercial panels
43 to 55 inch commercial-grade displays rated for clinic-day duty cycles — Samsung, LG, or Philips commercial series with a commercial warranty intact.
Queue and education content
Health-education loops, wait-time messaging, and check-in queue displays — driven from a SaaS CMS the office manager can update from reception.
Muted audio, captions, no PHI
Volume muted with closed captions on by default, and no patient-personal-health-information content on any public-facing screen.
How does a Winston Park boardroom install run compared to a downtown Toronto floor?
On a Winston Park boardroom AV installer brief — 2010 Winston Park Drive, 2020 Winston Park Drive, the 2201 Bristol Circle 219,175 square foot LEED office tower on Winston Churchill Boulevard, or one of the surrounding QEW-frontage office buildings — boardroom TV installation Oakville work runs on building-management rules rather than on a service-shift schedule. Most floors are multi-tenant Class A or Class B space, so after-hours access, freight elevator booking, and noise rules apply.
Winston Park is one of the GTA West’s most desirable business parks, sitting just off the QEW on the Mississauga border. The catchment is more boutique than the Allstate Parkway or VMC equivalents on sibling pages — fewer Class A towers, more mid-rise multi-tenant floors occupied by professional services, technology firms, healthcare administration, and engineering consultancies. The typical Oakville brief is a single boardroom or two boardrooms on a floor, rather than a full corporate-headquarters fit-out.
The install side differs from a downtown Toronto floor in two ways. First, the access is car-driven rather than transit-driven — almost every Winston Park building has surface parking close to the loading dock, so material handling for a 75 or 85 inch display is straightforward as long as the freight elevator is booked. Second, the building-management rules are usually tighter on noise, drilling hours, and chemical use because many floors are shared between a tenant and a neighbouring tenant who is also working a regular daytime schedule.
A typical Winston Park boardroom install therefore runs after hours or on a Saturday morning. The scope is usually a single 75 to 86 inch commercial display on the front wall, a Microsoft Teams Rooms or Zoom Rooms native bar, a ceiling microphone array, and a tabletop scheduler outside the door. Where the room is wider than 22 feet, we specify a dual-display layout so the far-end participant reads on the larger of the two screens. Cable paths are planned around the existing slab, the demising walls between tenants, and the building’s structured cabling so the install does not trigger a tenant-improvement permit revisit. Larger boardroom programs run through our conference room solutions scope.
After-hours and Saturday access
Building-management rules drive the install window — most Winston Park boardrooms book Saturday morning or a weekday evening after the neighbouring tenant has closed.
Teams Rooms or Zoom Rooms native
Microsoft Teams Rooms or Zoom Rooms with a certified video bar from Logitech, Poly, Yealink, or Neat — ceiling microphones and a tabletop scheduler outside the door.
Right-sized single or dual display
75 to 86 inch single display in most rooms, dual-display front wall where the room is wider than 22 feet so the far-end participant reads on the larger screen.
Demising-wall-aware cabling
Cable paths planned around the slab, the demising wall between tenants, and the building’s structured cabling so no permit revisit is needed.
How do you install commercial TVs across Oakville venues without disrupting trading hours?
By matching the install window to the venue’s actual operating pattern instead of running every job in the same Sunday-morning slot. A QEW dealership installs in a short morning window with vehicles repositioned for a few hours. A Lakeshore Road heritage boutique installs before opening. A Bronte or Kerr restaurant installs between Sunday and Thursday outside service. A Winston Park boardroom installs after hours or Saturday morning. A medical clinic installs around the closed clinic hours.
Oakville has at least five distinct operating patterns that drive install scheduling. QEW dealership showrooms run a daytime sales schedule with the lead vehicle on the floor through trading hours, so the typical install window is a short morning slot where the floor manager moves two or three vehicles for a few hours rather than clearing the floor for a full day. Lakeshore Road East heritage boutiques and restaurants run a six-block retail strip with consistent opening hours, so a before-opening install on a weekday morning is the cleanest slot.
Bronte Village waterfront restaurants book heavily on Friday and Saturday and on warm-weather patios, so the install window runs Sunday morning through Thursday afternoon, with Sunday morning being the most disruption-free slot. Kerr Village independents follow a similar service rhythm with a slightly more flexible weekday lunch window. Winston Park boardrooms install after-hours weekdays or on a Saturday morning under building-management approval. Medical and dental clinics install on a closed-clinic schedule with infection-control protocols in place.
The install plan documents the window the venue actually has, the access route (showroom service door, storefront, harbour-facing back-of-house, freight elevator, clinic side entrance), the contact who unlocks the space, and the sign-off who closes it down. We do not assume a one-size install slot. We confirm it before the COI and the schedule go out. Display mounting decisions tie back to our tv wall mounting in Oakville work where the bracket, the wall, and the panel weight all sit in one specification.
- Confirm the venue pattern (dealership morning, boutique before-open, restaurant Sun–Thu, boardroom Saturday, clinic closed-hours)
- Confirm the access route — showroom service door, storefront, harbour-side back-of-house, freight elevator, or clinic side entrance
- Confirm the documentation — COI, contractor pre-approval, WSIB clearance, install method statement
- Confirm the sign-off — who walks the install at the end, who signs the punch list, who locks the venue
- Set the route and timing before the truck rolls so security and management are not chasing a contractor after hours
What CMS and distribution architecture fits an Oakville digital signage or multi-display install?
A digital signage installation Oakville project usually lands on one of three CMS choices — BrightSign, Samsung MagicInfo, or a SaaS platform such as Yodeck, ScreenCloud, or OptiSigns — paired with HDBaseT or IP-over-AV distribution where more than three displays need a shared source. The right choice is driven by the operator’s content workflow, not by the screen brand.
Most Oakville operators land in one of three CMS lanes. A Lakeshore Road boutique, a Bronte or Kerr restaurant, or a single-tenant Winston Park office boardroom typically runs a SaaS platform such as Yodeck, ScreenCloud, or OptiSigns — low monthly cost, drag-and-drop scheduling, and a media player that fits behind a single display. A dealership feature-wall install or a QSR menu-board operator usually standardises on BrightSign players for their reliability under continuous 24/7 use, with the menu board installer Oakville brief shaped around a standard BrightSign reference layout. A Samsung-only environment can run Samsung MagicInfo directly out of the display without a separate player, which keeps the brief simpler for compact storefronts.
For multi-display installs where more than three screens need to share a source — a dealership with eight or ten ribbon displays running a synchronised brand loop, a restaurant with two rooms running matched content, a boardroom with a back-of-house repeater display — HDBaseT distribution is the common choice. Crestron NVX or Wyrestorm IP-over-AV is selected where the venue already runs structured cabling and prefers an IP-routed pattern.
Video walls are a separate decision. A bezel-to-bezel 2x2 or 3x3 LCD video wall is the common Oakville video wall installer brief — Samsung VHR or LG UH5F panels on a pop-out wall-mount system, calibrated for uniform colour and brightness, with the video wall processor selected to match the source mix. Direct-view LED is specified where the venue is large enough to read at distance — a dealership feature wall, a corporate-campus reception wall, or a large hospitality lobby. Residential equivalents and shared design tools are documented on our home theatre installation hub.
SaaS CMS for single-display ops
Yodeck, ScreenCloud, or OptiSigns paired with a compact media player — low monthly cost, drag-and-drop scheduling, a fit for a Lakeshore boutique, a Bronte restaurant, or a Kerr independent.
BrightSign for QSR and dealerships
BrightSign players are the standard for 24/7 menu-board and dealership feature-wall duty — paired with a CMS that the franchisee’s brand or the manufacturer’s dealer template mandates.
HDBaseT and IP-over-AV distribution
HDBaseT for shared-source layouts up to about eight to ten displays; Crestron NVX or Wyrestorm IP-over-AV where structured cabling and IP routing fit the venue better.
Video walls and direct-view LED
Bezel-to-bezel LCD video walls for dealership feature walls and restaurant impact, direct-view LED where the room is large enough to read at distance.
How much does commercial TV installation cost for an Oakville business?
A commercial TV installation Oakville project is priced by venue type, display count, distribution complexity, mounting condition, and access window. A single commercial display inside a Lakeshore Road boutique, a Bronte or Kerr restaurant, or a small Winston Park boardroom sits at the lower end. A dealership feature wall with calibration sits in the mid range. A multi-display video wall, a 3x3 LCD feature wall, or a multi-room hospitality install sits higher.
Pricing is not a single number on a price list, and any commercial AV installer quoting one before walking the venue is giving the operator a rounded estimate, not a quote. The factors that move pricing the most on an Oakville brief are display count, mounting condition (drywall, plaster, painted brick, heritage facade adjacent surface, curtain-wall glazing surround, structural column, demising wall, clinic operatory wall), the distribution architecture if more than one display shares a source, the CMS choice, the access window (before-open, weekend, after-hours, closed-clinic), and the property-manager or landlord documentation needed.
Three representative Oakville scenarios give a sense of the shape. A single commercial display inside a Lakeshore Road boutique or a Kerr Village independent restaurant — display, tilting mount, small media player, content workflow handover — runs as a focused single-day job. A 75 or 85 inch boardroom display on a Winston Park floor with a certified Teams Rooms or Zoom Rooms bar, ceiling microphones, and a tabletop scheduler runs longer because the device commissioning is part of the scope. A 3x3 video wall in a Trafalgar Road dealership feature-wall configuration, a multi-display dealership ribbon, or a multi-room Bronte Village restaurant install runs over multiple visits because the wall mounting, the calibration, and the source plumbing are separate stages.
We quote in writing after a free site visit. Every line ties to a scope item, and the COI and after-hours access language is written into the document so the property manager or the landlord has the same paperwork the operator does. Examples of completed Oakville-area commercial work are documented on our see recent installation work page.
What moves the price
Display count, mounting condition, distribution architecture, CMS, access window, and property-manager documentation — not the brand of the screen on its own.
Three representative Oakville scenarios
Single boutique or village restaurant display, boardroom dual-display with certified video-conferencing, dealership video wall or multi-display ribbon — three different shapes of brief.
Written line-item quote after a site visit
Free on-site walkthrough, written quote tied to scope, COI and access window documented in the same package so the property manager and the operator see the same paperwork.
What do Oakville commercial TV installs actually look like across the city?

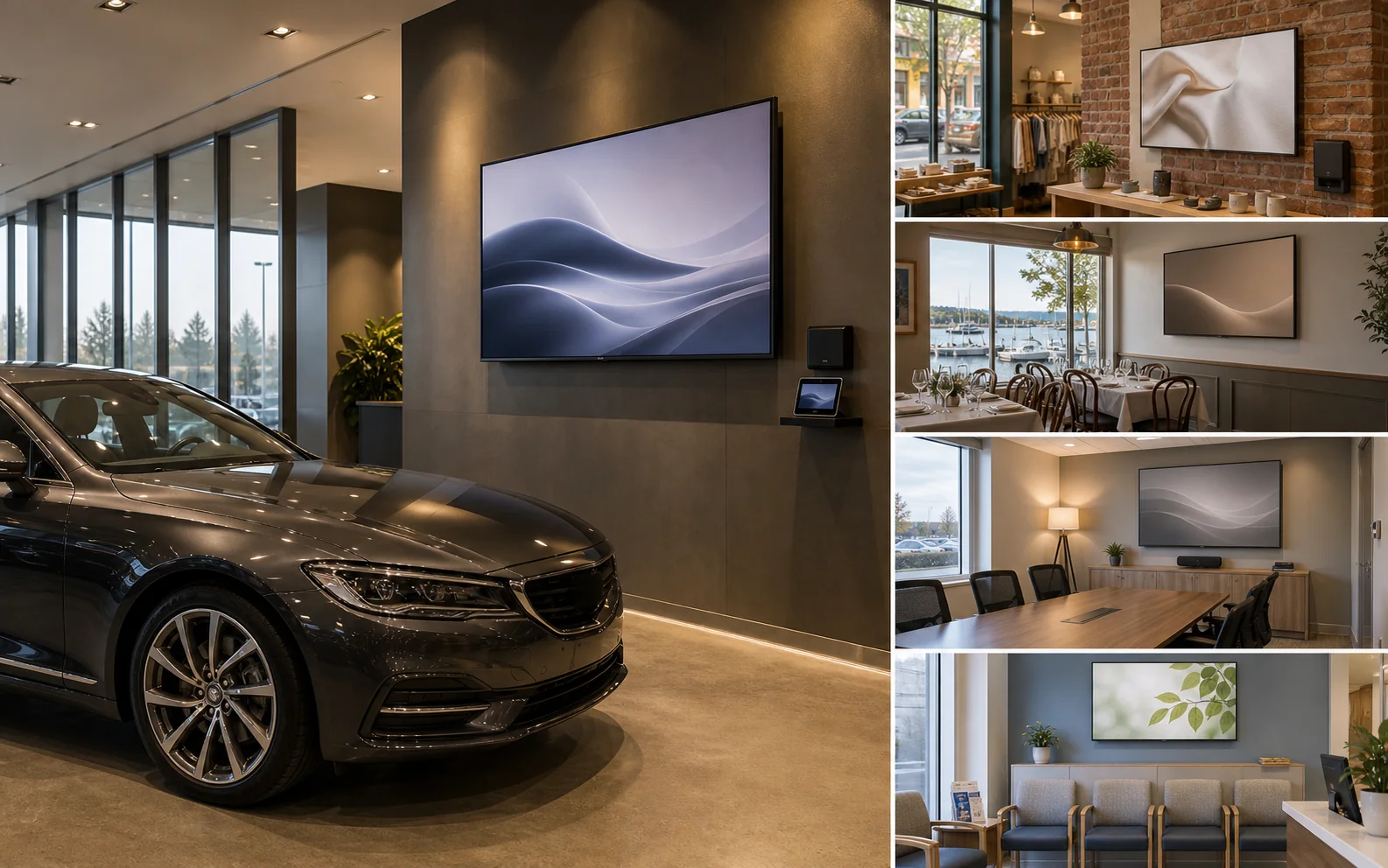

Oakville commercial TV work tends to land in five shapes. A typical Trafalgar or Speers dealership brief is a feature-wall display or a video wall behind the lead vehicle. A typical Lakeshore Road East boutique brief is an interior display set back from the heritage storefront window. A typical Bronte Village or Kerr Village restaurant brief is one or two commercial displays placed around picture-window or owner-operator constraints. A typical Winston Park boardroom brief runs after hours on a Class A or Class B floor. A typical OTMH-area clinic brief runs on a closed-clinic schedule.

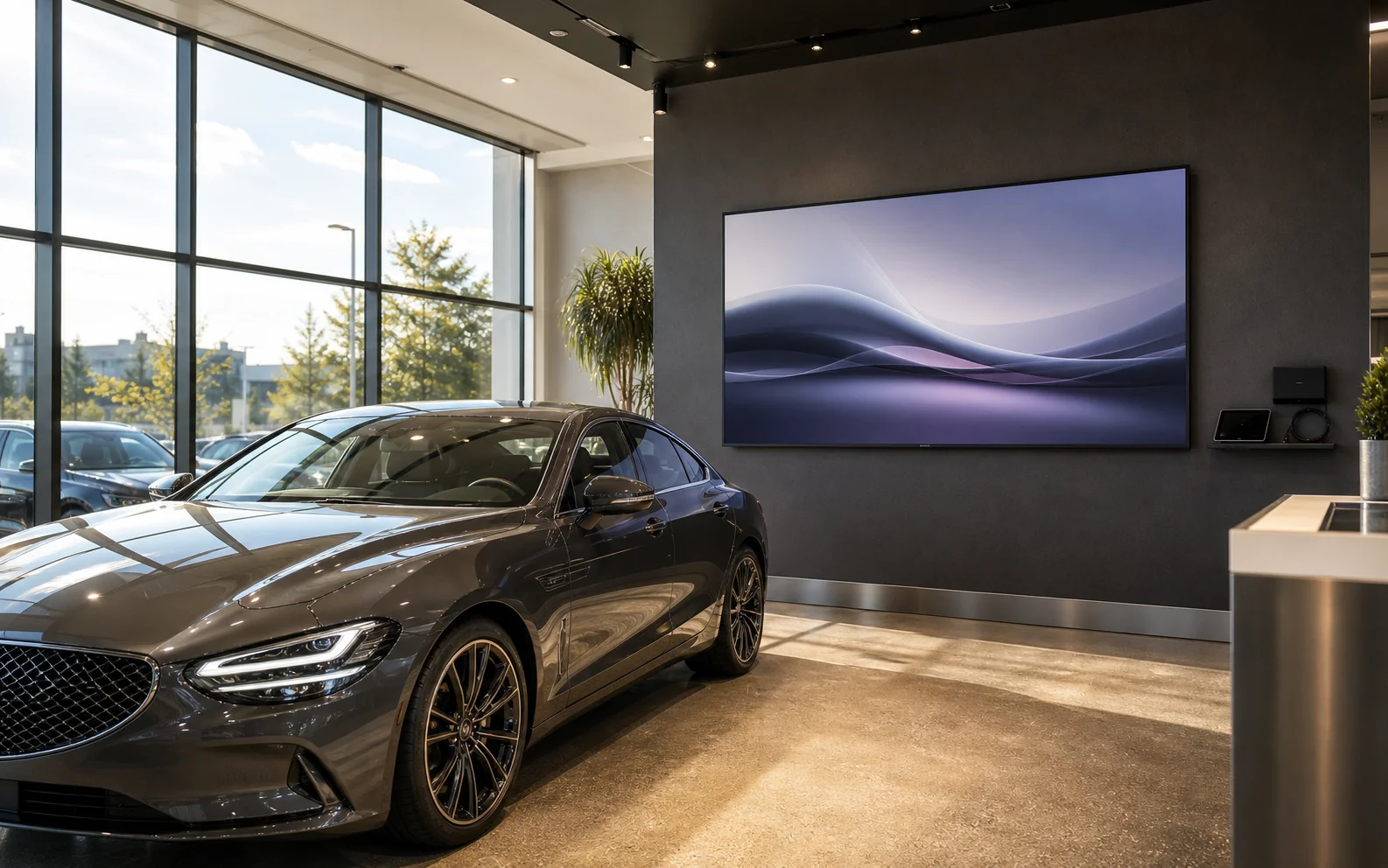

A typical installation in a Trafalgar Road dealership showroom involves a 75 to 98 inch high-brightness commercial panel — or a 2x2 or 3x3 video wall — mounted on a structural-rated feature wall behind the lead vehicle, with a manufacturer brand-loop running off a BrightSign player or Samsung MagicInfo direct from the display, calibrated for uniform brightness against the showroom’s curtain-wall glazing.

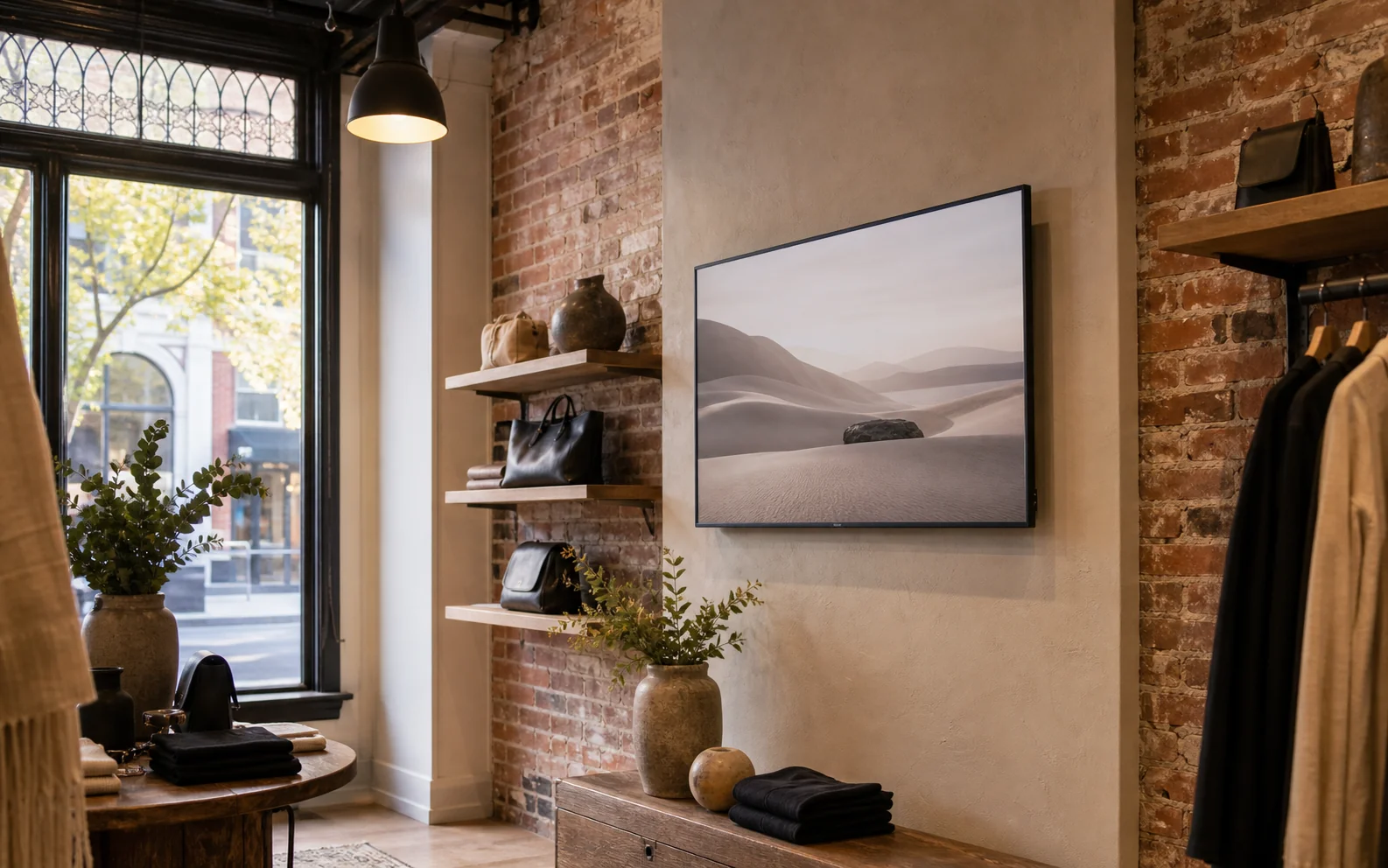

A typical installation along the Lakeshore Road East heritage strip involves a 43 to 65 inch commercial display set back from the storefront window on an interior side or back wall, mounted into interior framing rather than original brick or plaster, with a boutique-paced SaaS content loop and a dusk-brightness drop.

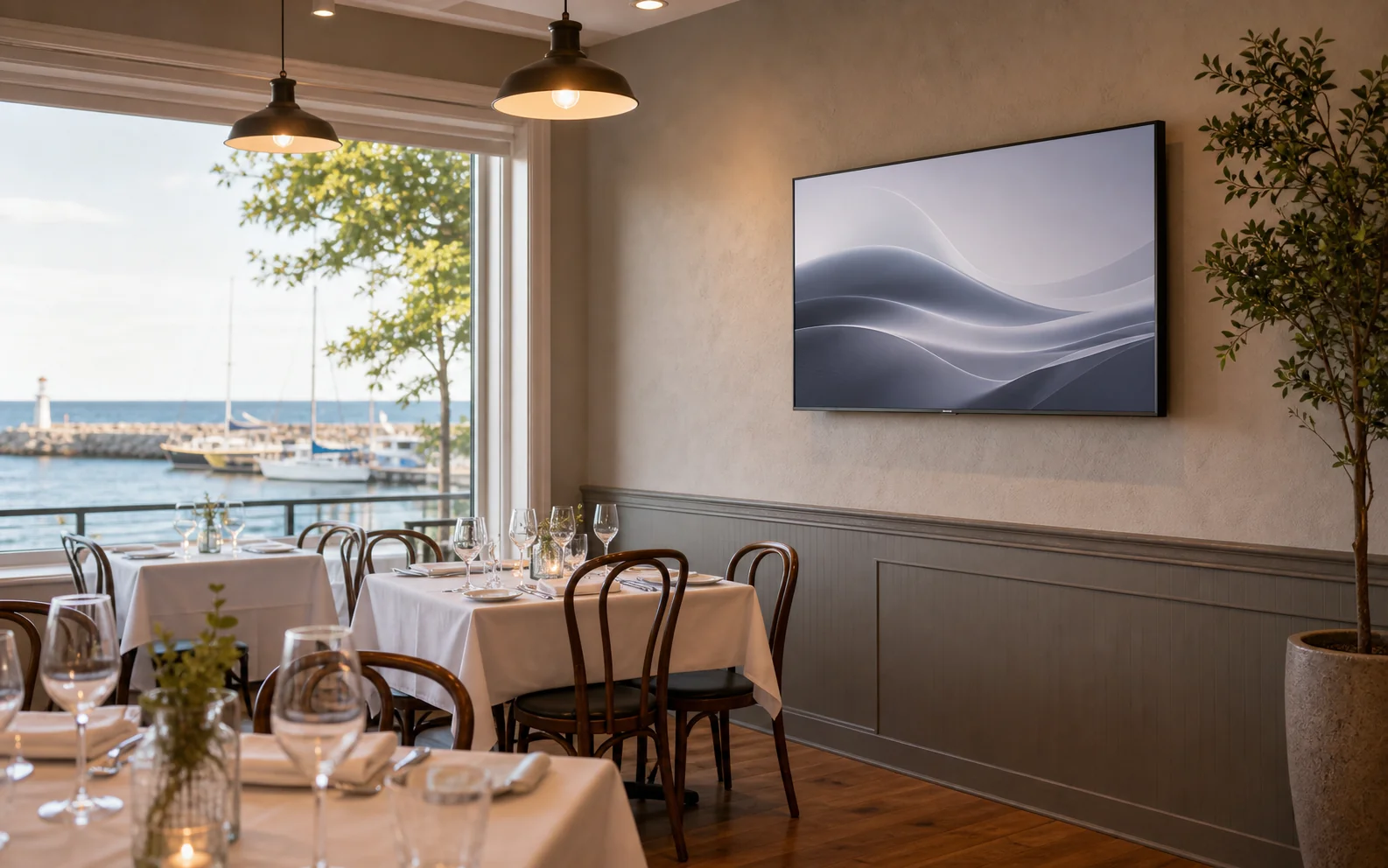

A typical installation in a Bronte Village waterfront restaurant involves a side-wall or back-wall display angled away from the harbour-facing picture window, specified at 500 to 700 nits, with a simple media-player content workflow the operator manages between Sunday and Thursday service. A typical Kerr Village independent install involves a single display, a small media player, a SaaS CMS the operator can drive from a phone, and a single point of maintenance contact.

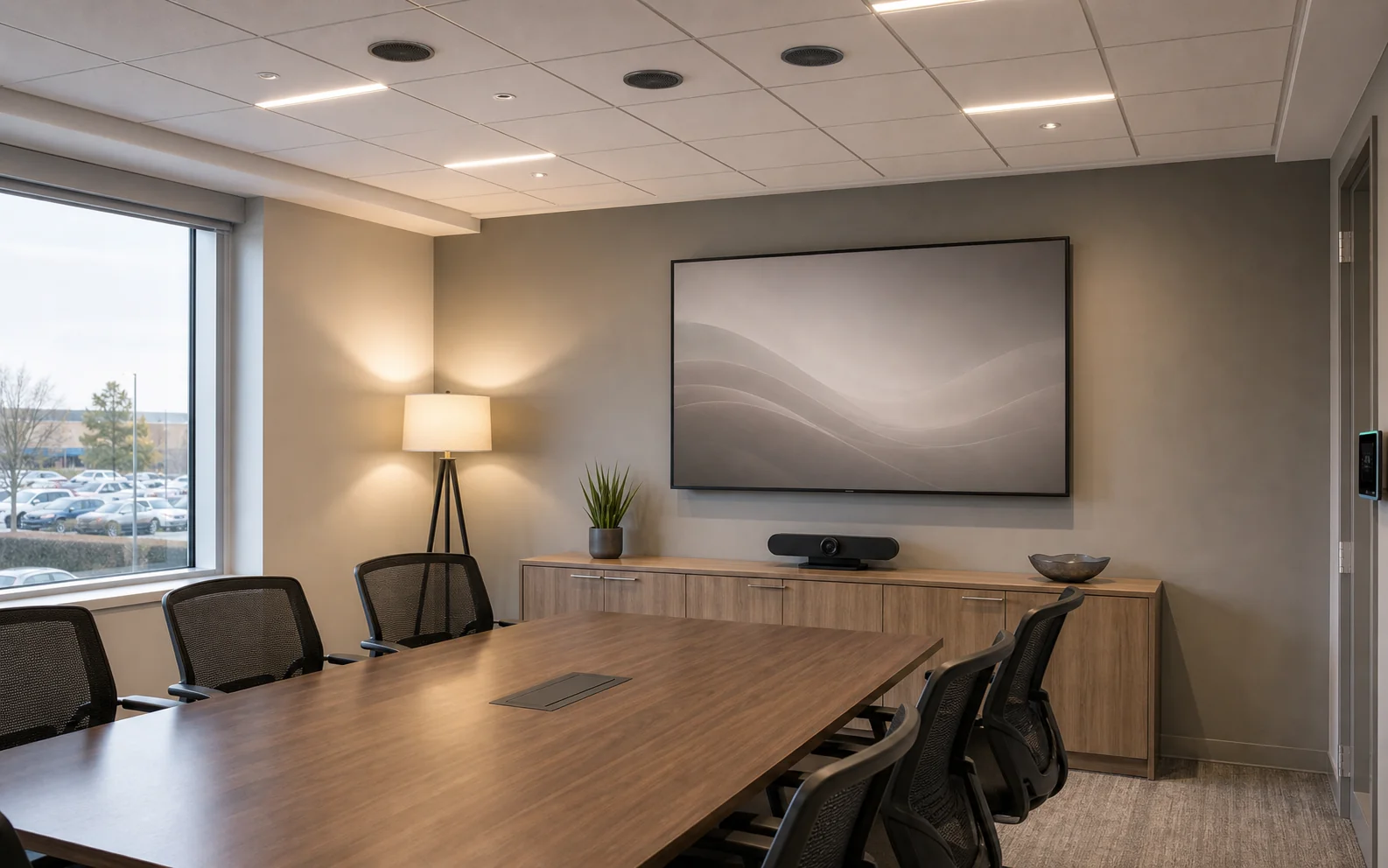

A typical installation in a Winston Park business-park boardroom involves a single 75 to 86 inch commercial display (or a dual-display layout where the room is wider than 22 feet), a certified Teams Rooms or Zoom Rooms bar, ceiling microphones, and a tabletop scheduler — installed on a Saturday morning or a weekday evening under building-management approval and freight elevator booking.

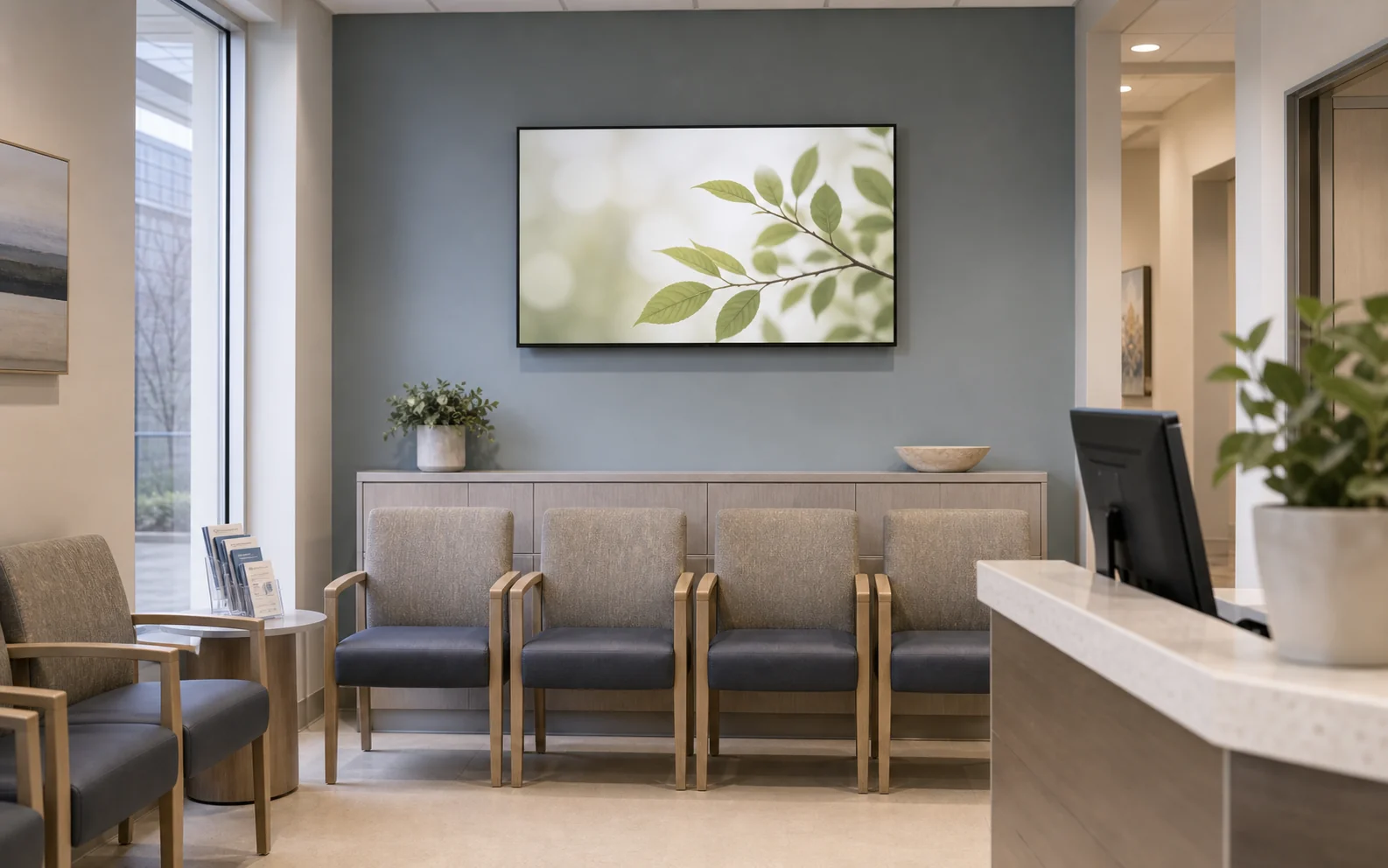

A typical installation in a medical or dental clinic around Oakville Trafalgar Memorial Hospital involves a 43 to 55 inch waiting-room display with health-education content and queue messaging, scheduled around the clinic’s closed hours with infection-control protocols followed for any anchor drilling or wall penetration. Read more first-hand feedback on the see SetupTeam customer reviews page.
Planning a commercial display, video wall, or boardroom AV install?
Tell us the venue type and what you need on the wall. We’ll respond with a clear written estimate, COI language for the property manager, and an install window that matches the venue’s actual trading pattern.
Trafalgar Road · Speers Road · Wyecroft Road · Lakeshore Road East · Bronte Village · Kerr Village · Winston Park · Glen Abbey · Joshua Creek · Old Oakville Contact UsCommercial TV FAQs
