Home Theatre Installation in Richmond Hill That Stays in the Room
Dolby Atmos and 4K built for real houses. Ceilings decoupled, penetrations sealed, and levels calibrated so the room below does not wake the household above. Cable routes mapped and rough-in confirmed before drywall closes.
What happens when the theatre sits directly under a bedroom?
A theatre positioned under a bedroom, a walkout lower level below the primary suite, or a main-floor media room under the kids' rooms upstairs, forces different choices than a stand-alone basement ever would. Low frequency does not move through air the way dialogue does; it moves through the structure, through joists, studs, and shared wall plates, and that decides the ceiling build, the wall junctions, and the door before any speaker gets chosen. Richmond Hill's executive homes typically pair a poured-concrete or block lower level with an open main floor above it, so the isolation strategy runs in two directions at once: keeping bass out of the framed structure overhead, and keeping mid and high frequency from leaking sideways into an adjacent room through a shared wall. Scope covers the room build itself: a decoupled ceiling assembly, sealed penetrations at every cable and duct run, a solid-core door with a real perimeter seal, in-wall and in-ceiling wiring for Dolby Atmos, the projector or display, the rack, and a calibration pass tuned to the isolation, not just the acoustics.
Nothing is specified before we know what is on the other side of every wall, floor, and ceiling. A bedroom above changes the ceiling assembly. A shared wall with a home office changes what goes into that wall. Get the containment plan wrong and no amount of Atmos hardware fixes it afterward.
Surround Layouts
5.1, 7.1, or 7.1.4 layouts, with every in-wall and in-ceiling speaker position checked against what sits on the other side before a cut is made.
4K Projection & Display
Ceiling-mounted 4K projector on a motorised or fixed-frame screen, or a wall-mounted display, wired with zero visible runs.

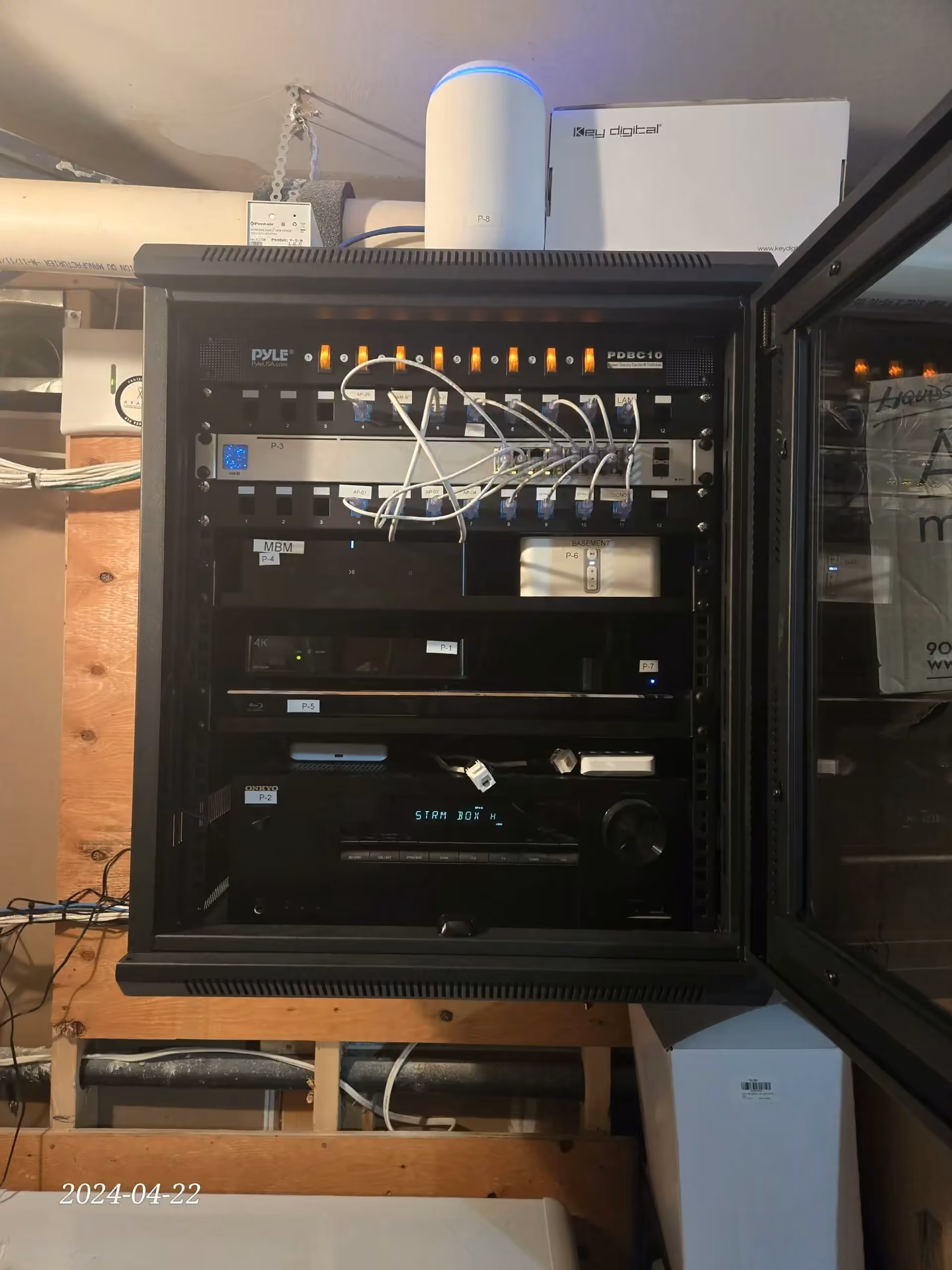

AV Rack Build
Receiver, amplifier, and source equipment racked and cable-managed, positioned where it can be serviced without opening a wall a second time.
Acoustic Treatment
Bass traps and first-reflection absorption shape how the room sounds inside it. That is a separate job from stopping sound leaving it, and both get modelled.
Dolby Atmos Calibration
Final-pass calibration tunes speaker angles, crossovers, and bass management for the room you actually have, not a factory curve built for an empty lab.
Ceiling Decoupling & Sealing
Resilient channel or isolation clips break the direct structural path from joist to drywall, and every penetration gets sealed after wiring so the containment holds.
Most builds here take one of two shapes, and the isolation plan differs for each: a dedicated lower-level room gets a fully decoupled ceiling and a sealed door because bedrooms or shared living space sit above it, while a main-floor room built into an open plan has to keep its own bass from crossing a wall into the kitchen or a home office ten feet away.
Retrofitting isolation into a finished room is harder than building it in from the start, because the ceiling has to come down before it can be decoupled and closed back up. We handle both cases: pre-wire during a renovation while the joist bay is open, or a full retrofit through existing cavities once the isolation plan is confirmed. Pricing is itemised on the estimate, and equipment can be supplied by us or by you. Pairs naturally with our TV wall mounting in Richmond Hill and home cinema installation Toronto services for households running multiple AV zones.
Why must sealing and decoupling happen before the drywall goes up?
Once drywall closes, every penetration you missed becomes a permanent flanking path for sound. That is why the sequence is fixed: assess the structure, design the decoupling and sealing plan, rough-in the wiring through sealed penetrations, install the hardware, then calibrate. Most projects close in two to four working days across one or two visits.
Site Assessment
Construction type, joist direction, and what sits on the other side of every wall and ceiling get mapped before any equipment lands on site.
System Design
Speaker positions, ceiling decoupling method, penetration points, and door seal spec documented together, because the isolation plan and the AV plan are one plan.
In-Wall Wiring
HDMI 2.1, 12 AWG speaker cable, Cat6, and power routed through sealed penetrations, with a back-box at every speaker location closed up as it goes in.
Installation
Projector or display mounted, screen hung flush, rack assembled, and every remaining gap around a cable, duct, or pot light sealed before the room is called finished.
Calibration
Speaker angles, crossover points, and bass management dialled in for a room that has to stay quiet outside its own walls, not just sound good inside them.
The assessment visit is where we find out what a drawing cannot tell us: what the ceiling assembly actually is, whether a wall is shared with a bedroom or a neighbour's party wall, and where a penetration can go without breaking the seal somewhere else. The drawing that comes out of it is what you approve, and it is what the containment plan gets built from.
Cable and sealing go in before anything else, closing every penetration as the wiring is finished rather than leaving it for a punch list later. Hardware follows once the room is closed up. Calibration comes last, and in a room built for containment it does more work than usual: bass management has to hit reference levels without relying on raw output, because the whole point of the build was not needing to turn it up to hear it.
At handoff, one person in the household is walked through the remote until they can run the room without help, and every calibration setting is written down so a future change does not start from zero. Later work, a new console on an input, a retune after the seating moves, a second zone, comes back to the same crew. The cabling sits alongside our structured network installation work where the household wants streaming and multi-zone audio on wired backhaul.
Want a theatre the rest of the house cannot hear?
Design, wiring, sealing, and the calibration pass are handled by the same crew from start to finish, nothing subcontracted out mid-project. Itemised estimate in writing first, and a lifetime labour warranty on the mounting.
What is the difference between absorbing sound and stopping it from leaving?
Absorption and isolation solve two different problems. Foam and bass traps shape how a room sounds to the people inside it. Isolation, decoupled ceilings, sealed penetrations, solid-core doors, keeps that sound from reaching the people outside it. A room can have excellent absorption and still be loud two floors away if the containment was never addressed.
Many of Richmond Hill's executive homes pair poured-concrete or block construction at the lower level with a framed structure above it, and that split matters more for isolation than for acoustics. Concrete does not accept the same decoupling hardware as a framed ceiling, so resilient channel or isolation clips get specified differently depending on what the ceiling actually is. Getting that wrong does not just change how the room sounds; it removes the isolation entirely.
Sealing is the part that gets skipped. A single unsealed pot light, an HVAC penetration, or a gap under the door undoes a properly decoupled ceiling, because sound finds the path of least resistance and a half-inch gap is exactly that. Our team includes a mechatronics engineer and an electronics engineer, so the load planning and the sealing detail hold up under inspection rather than getting waved through. Lighting integration through Control4 home automation is included on any dedicated theatre that wants one-button scenes.
Decoupling: Ceiling and floor assemblies, matched to the structure.
Resilient channel over framed ceilings, a different isolation detail over concrete. The assembly gets specified to what is actually there, not a standard spec sheet.
Engineering: Mechatronics + electronics in-house.
Load planning, impedance matching, and sealing details hold up under inspection because both engineers are on our payroll, not subcontracted out.
Sealing: Every penetration closed as it is made.
Cable, duct, and pot-light penetrations get sealed the moment they are cut, not left for a punch list. One missed gap is enough to undo a decoupled ceiling.
A recent project in Doncrest: an Atmos room next to a busy household.
A Doncrest homeowner asked us to convert a finished lower level into a multi-purpose media room: Dolby Atmos for film nights, distributed audio for the adjoining games room and wet bar, and a build that would not turn the floor above into a speaker.
Project Detail
- 7.1.4 Dolby Atmos with KEF in-ceiling height channels
- Marantz Cinema receiver with multi-zone amplification
- 77-inch LG OLED display, supplied and delivered by us
- Distributed audio to adjoining games room and wet bar
- Control4 keypad scene control
Coffered ceiling and one concrete-block exterior wall changed the height-channel layout and forced cable routes through the joist bay above to avoid surface conduit.
OutcomeSingle-keypad switching between cinema mode and whole-floor background audio; calibration verified three months later.
The room sat below grade with one concrete-block exterior wall, a coffered ceiling that complicated the height-channel layout, and a custom-made porcelain-tile fireplace surround built into the focal wall. The build was originally specified with a 120-inch motorised screen and a 4K laser projector. On the homeowner's preference, we changed course mid-project and supplied a 77-inch LG OLED display in its place, sourced, delivered, and installed by us, paired with a 7.1.4 system using KEF in-ceiling speakers angled per Dolby spec and a Marantz Cinema receiver with multi-zone amplification. Cable routes ran through the joist bay above so no surface conduit was visible after drywall patching.
The homeowner now switches from a movie scene to whole-floor background audio with a single Control4 keypad. Calibration was completed on the final visit, and a follow-up service call confirmed the system was holding tune three months later. Distributed audio in the games room runs through our Sonos installation and on site support workflow, so future hardware changes plug straight into the existing zones.
