UniFi Installation in Mississauga
The full Ubiquiti stack designed around the Mississauga home you actually have — Lorne Park and Mineola estates on ravine lots, Erin Mills and Meadowvale planned-suburb detached homes, Streetsville Main Street heritage homes, and Square One and Port Credit lakeshore condos. One controller, one app, every device on the network accounted for.
Why does UniFi installation in Mississauga mean five different deployments?
The city’s residential UniFi work spans large estate detached homes in Lorne Park and Mineola, 1980s and 1990s planned-suburb detached homes in Erin Mills and Meadowvale, Main Street heritage homes in Streetsville, concrete-slab condo towers around Square One and the Hurontario corridor, and lakefront condos in Port Credit and Lakeview — and a credible UniFi build in each one is a different scope, a different hardware list, and a different controller configuration.
A UniFi build in a Lorne Park estate is the full stack — UDM Pro Max or Cloud Gateway Max, a UniFi Pro-Max-24 PoE switch, four to six indoor U7 Pro access points, one or two U7 Outdoor APs for the ravine yard and pool deck, a UniFi Protect grid with UNVR backup, and a UniFi G4 Doorbell at the front door. An Erin Mills 1980s detached home is a Cloud Gateway plus a 16-port PoE switch and two or three U7 Pro APs on a wired Cat6 backbone. A Streetsville heritage home is a soffit-mount and ceiling-mount job through plaster-and-lath, often paired with a single PoE Protect camera at the laneway garage. A Square One condo is a small-footprint single-AP job that replaces a Bell GigaHub or Rogers XB7 with a UniFi Cloud Gateway Ultra in bridge mode. A Port Credit lakefront condo is a one- or two-AP suite with an outdoor balcony coverage consideration.
The right hardware list comes from the address, the floor plan, and the ISP at the demarc — not from a package price sheet. The first call confirms which of the five your project is. Browse the wider UniFi installation across the GTA overview for the same approach scaled across Toronto, Vaughan, Markham, and Oakville.
How do you install UniFi in a Lorne Park or Mineola estate home on a ravine lot?
A Lorne Park or Mineola estate UniFi build is a wired-backbone job before it is an access-point count — four to six indoor U7 Pro APs, one or two U7 Outdoor APs for the ravine yard and pool, a UDM Pro Max or Cloud Gateway Max as the controller, a UniFi Pro-Max-24 PoE switch in the utility room, and Protect cameras at the driveway approach, the side yards, and the rear ravine edge.
Estate homes in Lorne Park, Mineola, and the lakefront-adjacent pockets of Clarkson and Sheridan typically run 3,000 to 8,000 square feet on deep mature-tree ravine lots. The wired layer is non-optional: Cat6a from the utility room to every AP location, every outdoor camera, and every door. We mount the rack on a 3/4-inch plywood backer in the utility room, populate it with a UDM Pro Max or Cloud Gateway Max, a Pro-Max-24 PoE switch with cable management above and below, a 24-port Cat6a patch panel, a UNVR for Protect storage, and a UPS at the base.

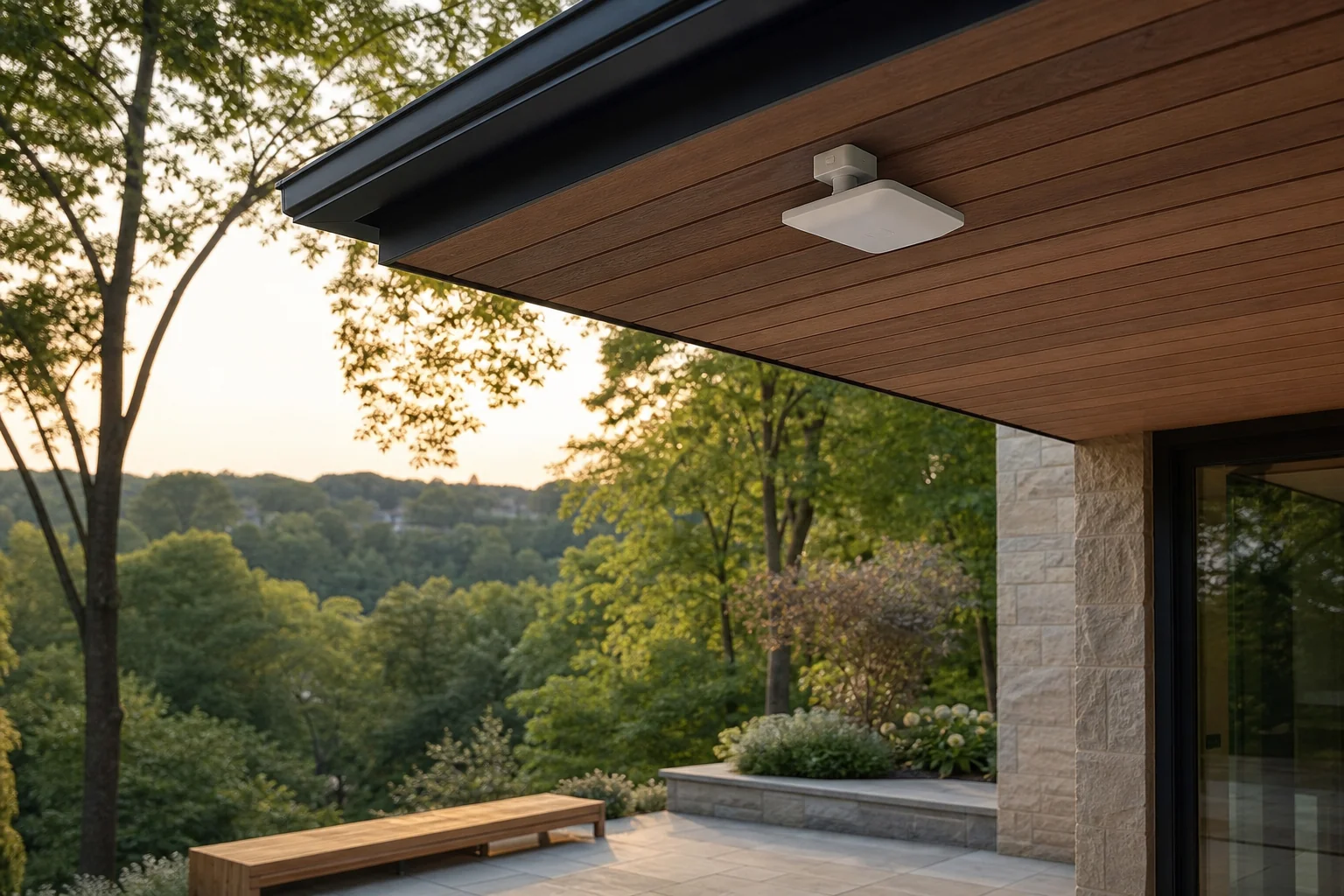

Outdoor U7 access points sit under the eaves at the front and back of the house and on a soffit at the pool cabana if there is one. UniFi Protect IP cameras — G5 Pro at the driveway approach, the side yards, the rear deck, the pool gate, and the ravine edge — record back to the UNVR. The UniFi G4 Doorbell replaces whatever was on the front door. If the home runs Control4 home automation, the UniFi network sits behind the Control4 program rather than competing with it.

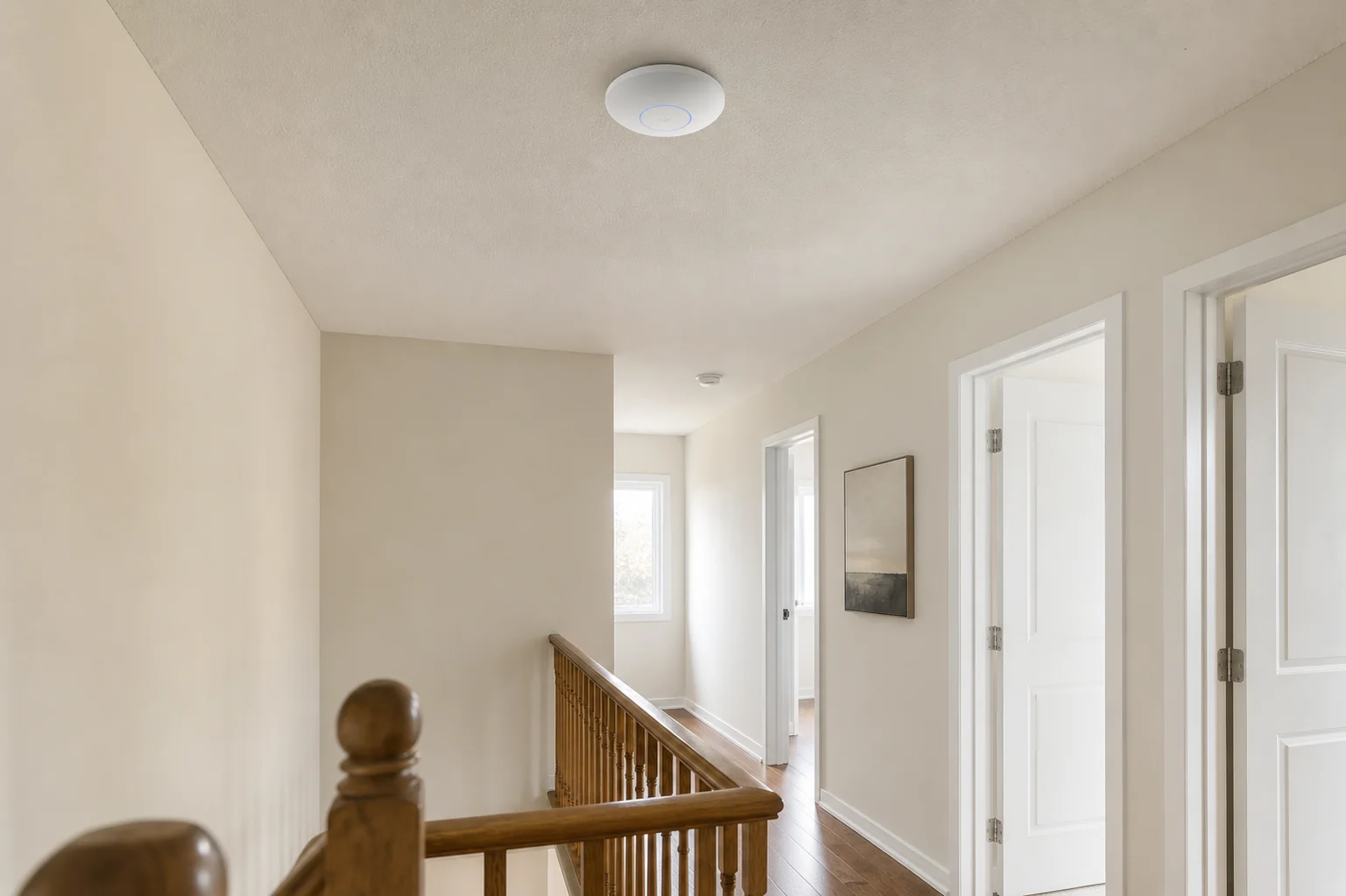

How do you scope UniFi for an Erin Mills or Meadowvale planned-suburb detached home?
An Erin Mills, Central Erin Mills, Meadowvale, or Credit Pointe two-storey planned-suburb detached home runs a Cloud Gateway, a 16-port or 24-port PoE switch, and two or three U7 Pro access points on a Cat6 backbone — one AP per floor plus one for the finished basement.
The planned-suburb stock here — Erin Mills, Central Erin Mills, Meadowvale, Credit Pointe, East Credit, Churchill Meadows — is the most common UniFi job in the city. These homes were built in the 1970s, 1980s, and 1990s with conventional 2x6 framing, drywall, and finished basements; cable pulls between floors run cleanly through the original telephone closet or through a furnace-room chase. A typical scope is a UniFi Cloud Gateway (or a Dream Router 7 where the budget skews toward a single-box install), a USW-Pro-16-PoE or USW-Pro-24-PoE switch, two to three U7 Pro ceiling-mount access points, optional UniFi Protect cameras at the front door and driveway, and a UniFi G4 Doorbell.
The signal challenges are predictable: the finished basement is the dead zone, the main-floor great-room needs its own AP if there is a coffered or dropped ceiling between the kitchen and family room, and the third bedroom over the garage rarely sees usable Wi-Fi from a single ground-floor router. The fix is a wired structured Cat6 cabling backbone back to the rack, not another mesh node.

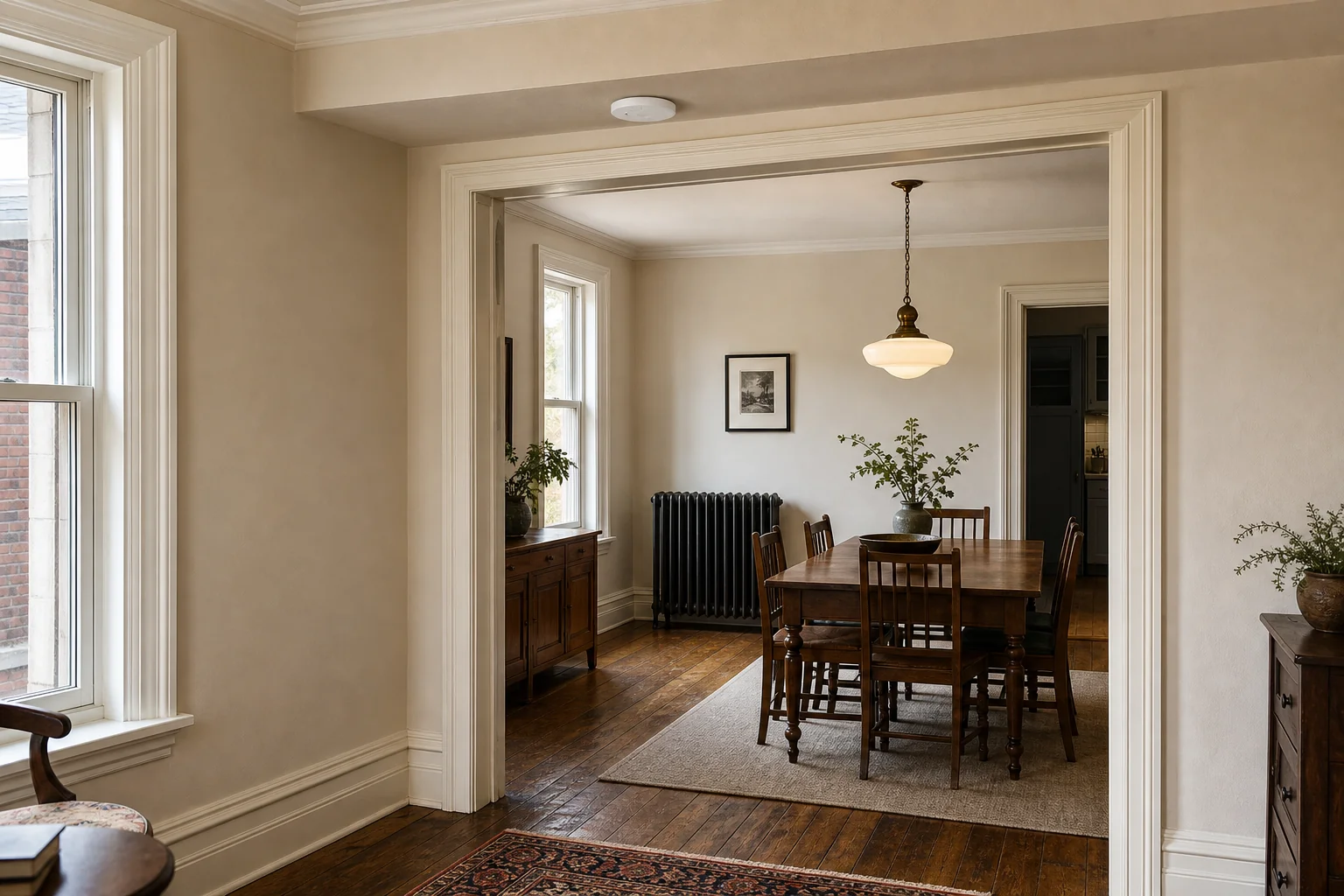

How do you fit UniFi into a Streetsville Main Street heritage home?
A Streetsville heritage UniFi build works around plaster-and-lath interior walls, original brick chimney chases, and softwood-board subfloors — the access points land on ceilings or soffit-mounted into bulkheads, the Cat6 runs through the basement ceiling joists and up through floor-to-ceiling closet stacks, and wall penetrations are avoided wherever possible.
Streetsville’s residential core, from Queen Street South across Mill Street and into the side streets toward the Credit River, is full of late-1800s and early-1900s detached homes with plaster-and-lath interior walls, original brick chimney chases, and finished or unfinished walkout basements. The plaster attenuates 2.4 and 5 GHz signal more aggressively than drywall, so the AP count rises and placement matters more than gear selection.
We typically run the Cat6 backbone through the unfinished basement ceiling, up through a floor-to-ceiling closet stack, and into a soffit cavity or bulkhead at each AP location. A U7 Pro flush-mounted to a soffit or to a bulkhead drop reads as ‘installed’, not ‘aftermarket’. The laneway garage at the rear — a common Streetsville detail — gets its own outdoor AP and a single Protect camera if the homeowner wants doorbell-style coverage at the side entrance.

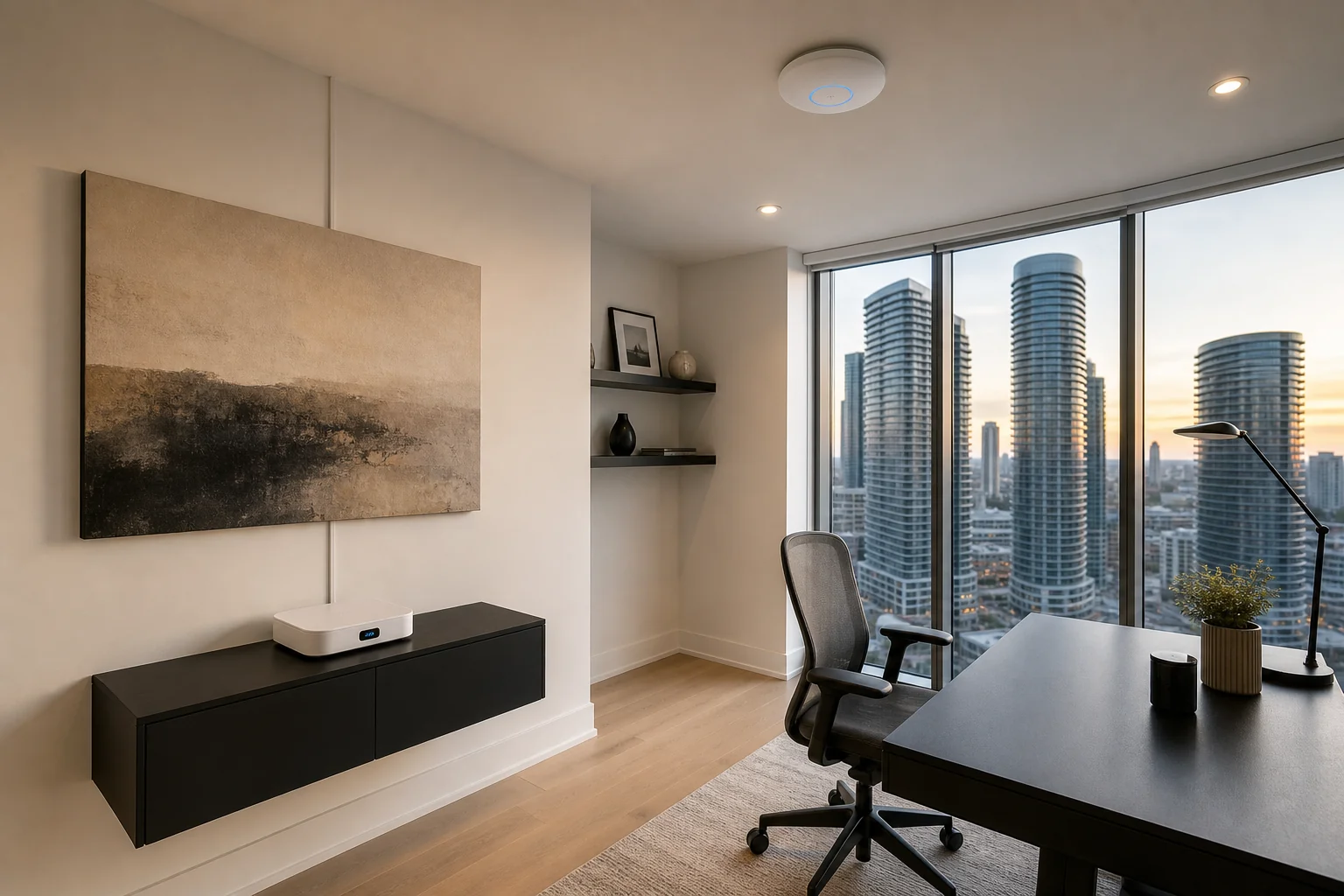

How do you install UniFi in a Square One or Hurontario corridor concrete-slab condo?
A Square One, Absolute World, M City, Limelight, or Pinnacle Grand Park UniFi build is a single-gateway, one- or two-AP job that replaces a Bell GigaHub, Rogers XB7, or Beanfield ONT-paired router with a UniFi Cloud Gateway Ultra in bridge mode and a junction-box-mounted U7 Pro on the suite ceiling.
Every tower in the Mississauga City Centre cluster — Absolute World, M City, Limelight, Pinnacle Grand Park, One Park Tower — is concrete-slab construction. There is no in-ceiling AP recess and no drilling through the slab; the AP sits surface-mounted to a junction-box ceiling rose, with the PoE Cat6 routed through a paint-matched slim raceway down to a wall-mount console where the Cloud Gateway Ultra lives next to the ONT or modem.
The controller configuration is straightforward: bridge mode at the ISP gateway, the UniFi Cloud Gateway becomes the router, VLANs separate the homeowner network from IoT and guest, and the UniFi Network app on the homeowner’s phone manages everything. Property-management approval, COI submission, and a service-elevator booking are required in every Square One and Hurontario corridor tower before installation day — we handle the COI request and the elevator booking as part of the scope.

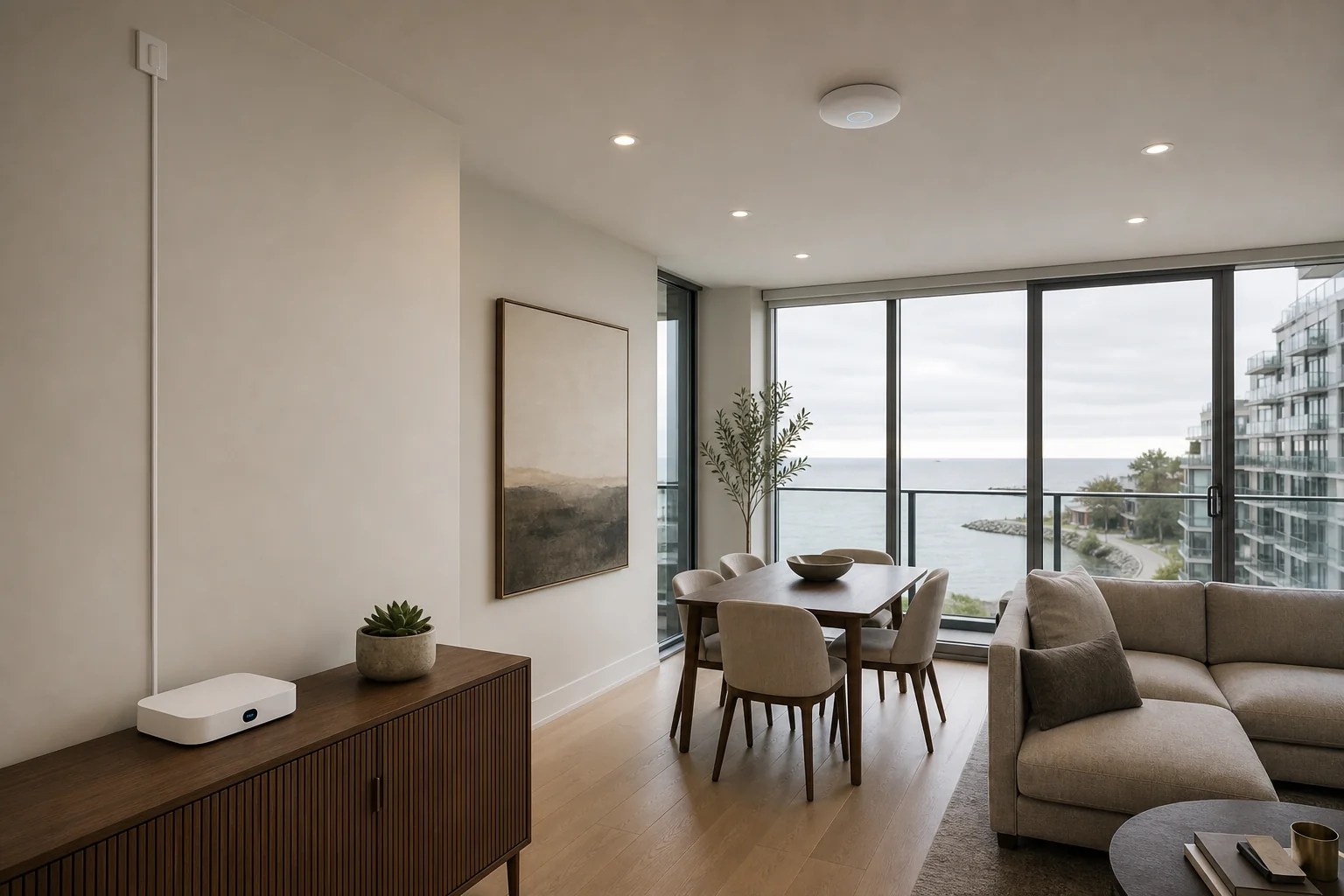

How do you scope UniFi for a Port Credit or Lakeview lakeshore condo?
A Port Credit or Lakeview lakeshore condo UniFi build is a one- or two-AP suite job with an outdoor balcony coverage consideration — the lake-facing window wall blows the 5 GHz signal straight out over the water, and the balcony, if it is a habitable depth, often needs its own outdoor-rated AP or a balcony-facing in-wall.
Port Credit’s mid-rise lakeshore condos — and the new Lakeview Village inventory coming online across the former GE Hydro and refinery lands — have smaller floor plates than the Square One towers, north-or-lake-facing window walls, and balconies that are commonly used as outdoor living space. A typical UniFi installation here is a Cloud Gateway Ultra plus one ceiling-mount U7 Pro for the suite and, where the balcony is deep enough to entertain on, a U7 In-Wall facing the balcony or a small U7 Outdoor mounted to the balcony soffit on a homeowner-approved bracket.
The Bell, Rogers, or Beanfield gateway sits in bridge mode behind the UniFi controller. Where Lakeview Village ships pre-drywall, we run the Cat6 before the drywall closes — significantly cheaper than retrofitting after move-in.
Should a new UniFi build in Mississauga use Wi-Fi 7 or stay on Wi-Fi 6 in 2026?
In 2026, a new UniFi build should use Wi-Fi 7 — U7 Pro, U7 In-Wall, or U7 Outdoor — wherever a 6 GHz device population is present or expected within three years; the U6 line is still valid for budget-constrained Erin Mills and Meadowvale builds where every connected device is Wi-Fi 5 or Wi-Fi 6 today.
The clean answer is property-specific. In a Lorne Park or Mineola estate, the U7 Pro and U7 Outdoor are the right calls — these homes will be on the same APs for seven to ten years, the homeowners run iPhone 15 Pro and newer, MacBook Pro M3 and newer, and Wi-Fi 7 endpoint devices that already use the 6 GHz band, and the U7 Pro’s increased capacity matters across a 5,000-square-foot floor plate. In an Erin Mills or Meadowvale planned-suburb home, the U6 Pro is still defensible if budget is the constraint and the connected-device population is older.

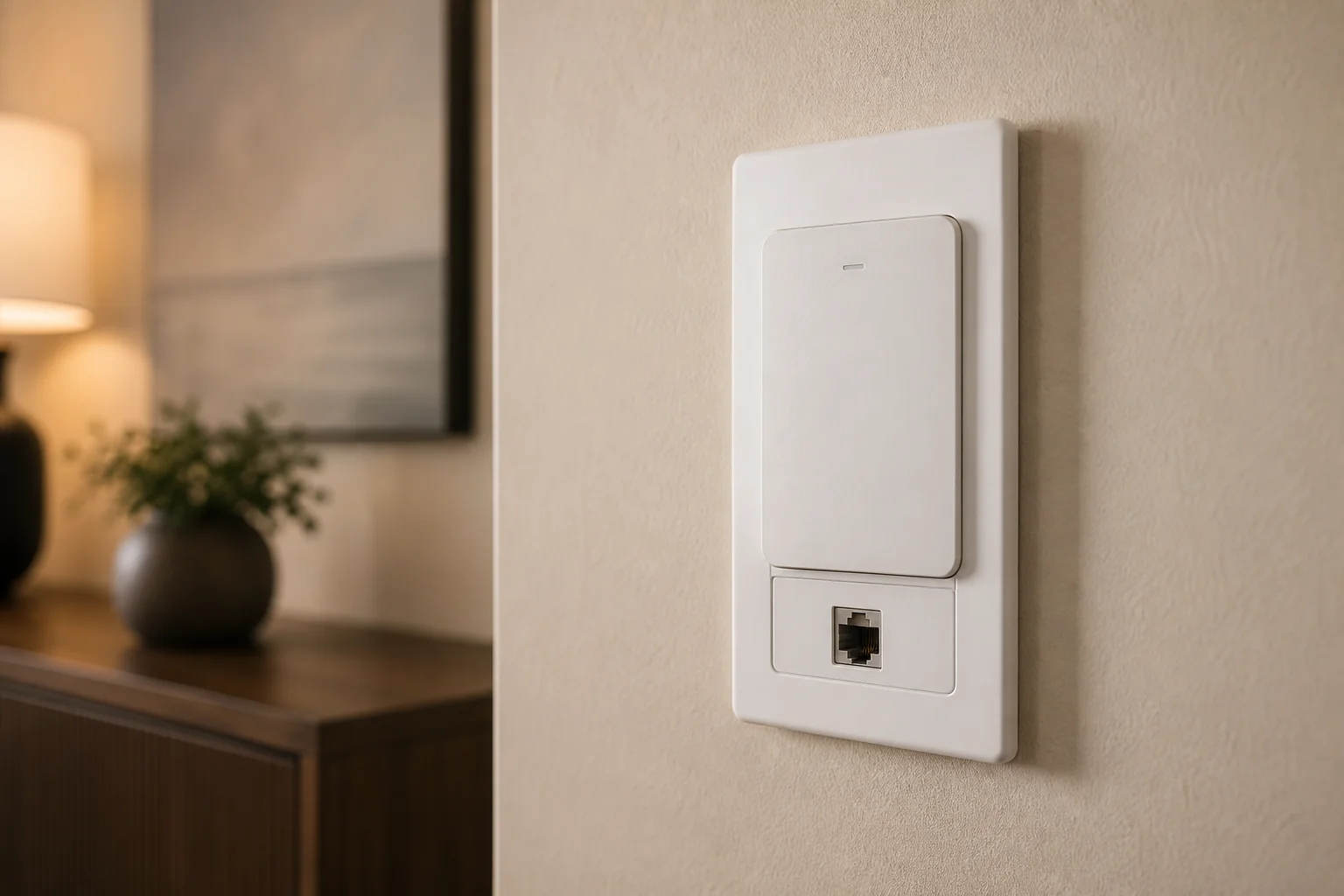

In a Square One or Port Credit condo, the U7 Pro is overkill for a single-AP suite — a U7 In-Wall or a U6+ is the right read. In a Streetsville heritage home, the U7 Pro is correct because the plaster attenuation eats AP capacity and you want every dB of margin. The decision rolls into the broader Wi-Fi optimisation across the GTA playbook we use on every retrofit.
How does the UniFi installation process work?
A UniFi build runs in four stages — site assessment and ISP confirmation, wired-backbone pull, gear stack and AP placement, then controller configuration and Fluke-tested handover.
We confirm the address, the suite or floor plan, the ISP at the demarc (Bell GigaHub, Rogers XB7/XB8, Beanfield, TekSavvy, VMedia), the number of devices, the rooms that matter, and any outdoor coverage scope. For condos in Square One, Absolute World, M City, Limelight, Pinnacle Grand Park, or Port Credit, we file the COI and book the service elevator on your behalf. Installation day starts with the wired backbone — Cat6a or Cat6 to every AP location, every Protect camera, every UniFi Access door, and the rack — followed by mounting the rack, populating it with the UDM Pro Max or Cloud Gateway, the PoE switch, the patch panel, the UNVR for Protect, and a UPS.
APs go up. Cameras go up. Then we provision the controller, configure VLANs (homeowner, IoT, guest, work-from-home), bind the network to the homeowner’s UI.com account, set up the UniFi Network and UniFi Protect apps on the homeowner’s phone, walk through every device, and Fluke-test every Cat6 run before we hand over. The wired layer is the same structured Cat6 cabling in Mississauga approach we use on every retrofit.
Site assessment
We inspect the address or suite, walk the cable routes, confirm the ISP and modem, and book the elevator and COI where the building requires it.
Wired backbone
Cat6a or Cat6 from the rack to every AP, every camera, every door reader — wall fishes, soffit pulls, and chase routes confirmed before any drywall opens.
Rack and APs
Rack mounted, gateway and switch populated, patch panel labelled, APs flush-mounted to ceilings or soffits, outdoor APs under eaves with weatherproof junction boxes.

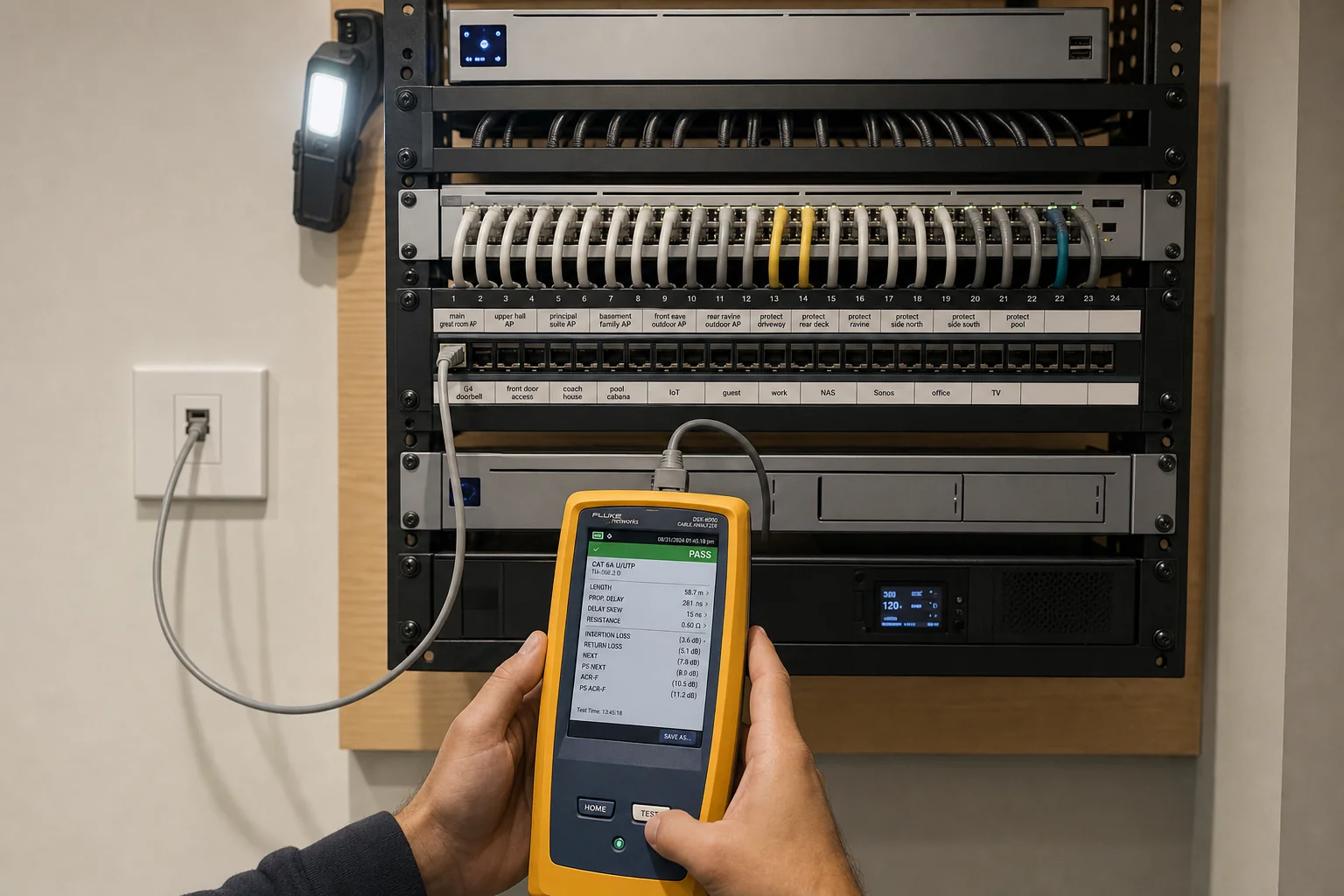

Controller and Fluke handover
Controller bound to the homeowner’s UI.com account, VLANs configured, every Cat6 run Fluke-tested, UniFi Network and UniFi Protect apps walked through on the homeowner’s phone.
How much does a UniFi installation cost in Mississauga?
A UniFi build here is quoted on the property and the scope, not a package — a Square One condo single-AP install with a Cloud Gateway Ultra and a junction-box ceiling AP is at the low end of the GTA market, an Erin Mills or Meadowvale three-AP home is mid-range, and a Lorne Park or Mineola estate with a full Protect grid, UniFi Access, and outdoor U7 coverage is at the upper end.
The scope drivers are the number of access points, the run length and complexity of the wired backbone, whether UniFi Protect is in scope and how many cameras, whether UniFi Access is in scope and how many doors, whether the build is pre-drywall or a retrofit, and whether outdoor coverage requires U7 Outdoor APs or a U7 Outdoor on a pole at the pool cabana. We do not publish per-AP or per-camera pricing because a Streetsville plaster-wall pull is not the same job as a pre-drywall Lakeview Village run. The free estimate is built off a site walk, a floor plan, and the ISP confirmation — it lists every line of gear, every line of labour, every Fluke-test row, and every controller-configuration row, with no boilerplate hourly buffer.
Planning a Mississauga UniFi build?
Estate ravine lot, planned-suburb detached, Streetsville heritage, Square One condo, or Port Credit lakeshore suite — tell us the address and the floor plan. We respond with a clear estimate.
Lorne Park · Mineola · Port Credit · Erin Mills · Meadowvale · Streetsville · Square One · Lakeview Contact UsWhat does a typical Mississauga UniFi project look like in practice?

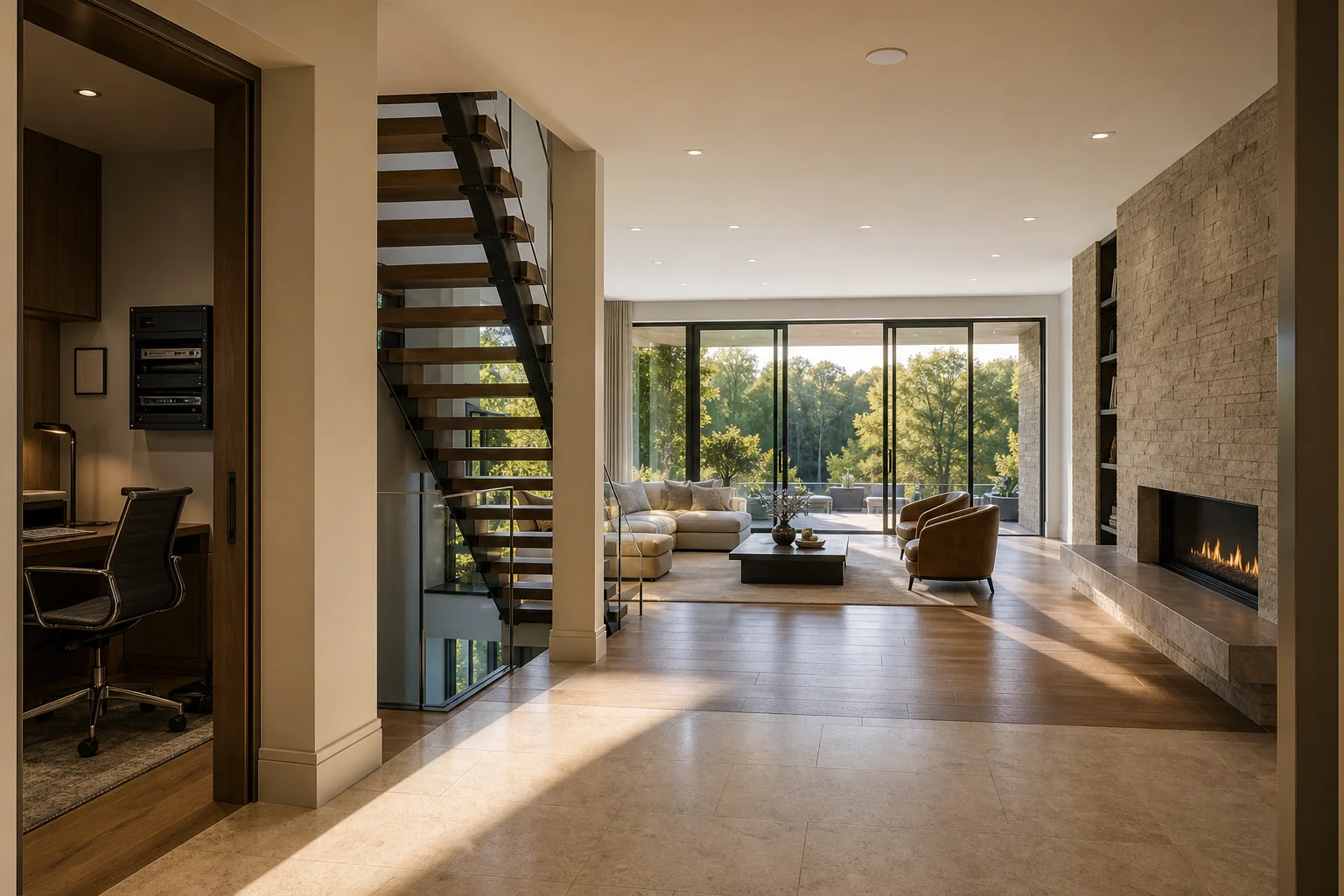

A typical Lorne Park build covers a 4,800-square-foot detached on a ravine lot: a UDM Pro Max in the utility room, a Pro-Max-24 PoE switch, four U7 Pro APs across the main and upper floors, two U7 Outdoor APs under the front and back eaves, a UniFi Protect grid of six G5 Pro cameras and a G4 Doorbell, a UNVR for storage, and a Control4 program sitting on top of the new network.

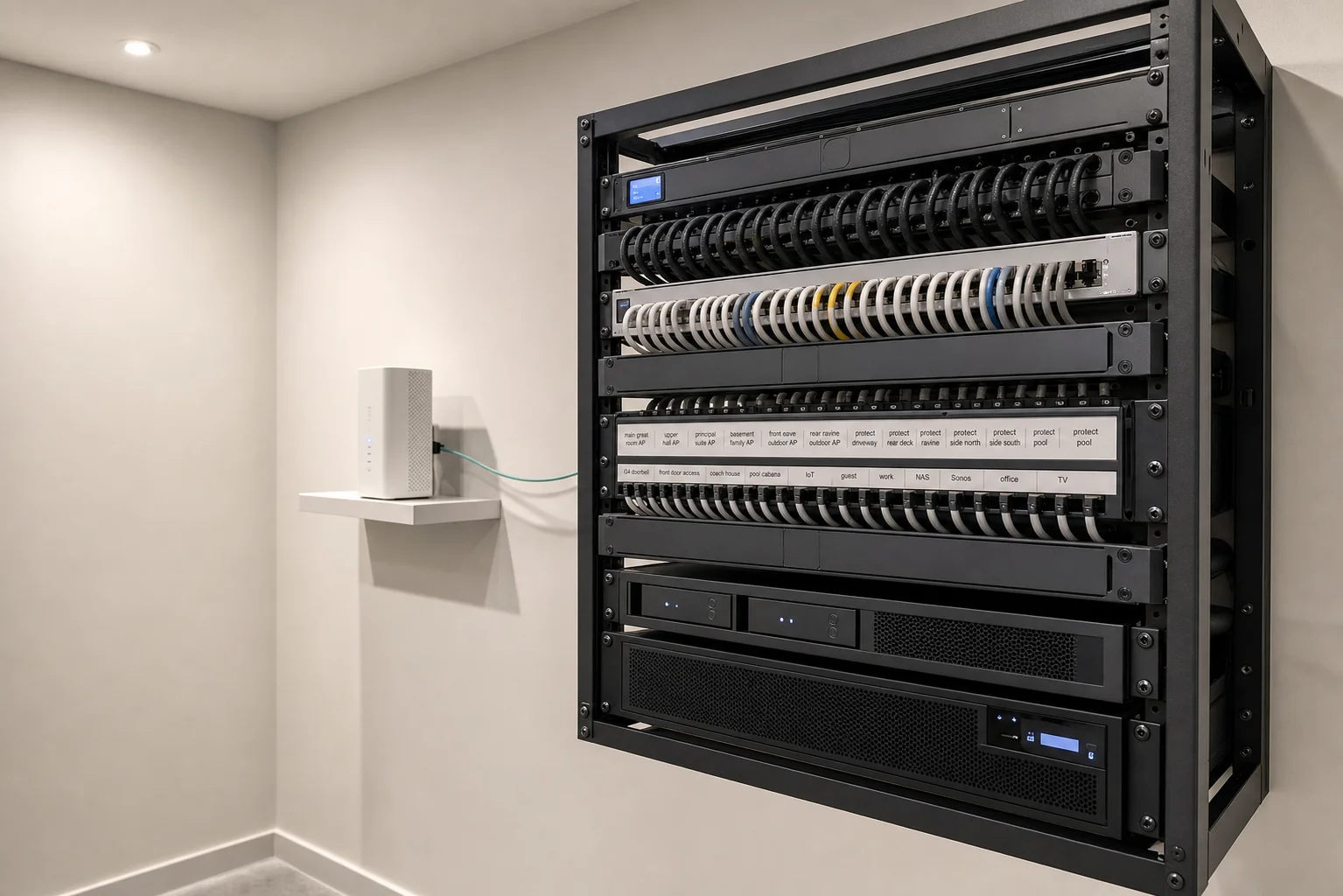

The rack goes into the basement utility room on a 3/4-inch plywood backer, with the Bell GigaHub or Rogers XB8 in bridge mode and a 10G fibre or 2.5G copper handoff to the UDM Pro Max. Cat6a runs from the rack to each AP — one in the main-floor great room ceiling, one over the upper-floor central hallway, one in the principal bedroom suite ceiling, one in the basement family room — plus two outdoor runs to U7 Outdoor APs under the front entry eave and the rear ravine-facing eave.
Protect cameras land at the driveway approach, the side yards, the front entry, the rear deck, the pool gate, and the ravine edge, all PoE off the same switch and recorded to the UNVR. The G4 Doorbell replaces the original chime. VLANs separate the homeowner network, the IoT network (Lutron keypads, Sonos, smart shades, the pool controller), the work-from-home network, and a guest SSID. The UniFi Network and UniFi Protect apps go on the homeowner’s phone before we leave. The Control4 program — if the home is on Control4 — picks the new network up cleanly because the SSID and password are scoped to that program ahead of time. Every Cat6 run is Fluke-tested and labelled at the patch panel before handover. The same template scales down for an Erin Mills detached, a Streetsville heritage home, or a Square One condo by removing the outdoor scope and reducing the AP count. See recent installation work for adjacent project galleries.
