UniFi Installation in Aurora
The full Ubiquiti stack designed around the property you actually have — Hills of St. Andrew Georgian estate detached on the Oak Ridges Moraine ridge adjacent to St. Andrew’s College, Northeast Old Aurora Heritage Conservation District homes, Aurora Highlands ranch-bungalow vaulted-ceiling gable walls, Aurora Estates and Aurora Heights established detached, Bayview Wellington mixed-form, and the Bayview Northeast / 2C secondary plan area infill phasing.
Why does UniFi installation in Aurora start at the Hills of St. Andrew ridge and the Northeast Old Aurora heritage core?
Aurora runs from the Hills of St. Andrew Georgian estate corridor on the Oak Ridges Moraine ridge edge in west Aurora adjacent to St. Andrew’s College, through the Aurora Estates, Aurora Heights, Aurora Highlands, and Aurora Grove established-detached neighbourhoods, into the Northeast Old Aurora Heritage Conservation District just above the Yonge and Wellington Street East downtown intersection, and across the Bayview Wellington mixed-form precinct out to the active Bayview Northeast / 2C secondary plan area phasing — and a credible UniFi installation in each one is a different scope, a different hardware list, and a different controller configuration.
A UniFi installation in a Hills of St. Andrew Georgian estate is a whole-stack job for a 1970s-through-1990s executive detached on a half-acre-or-larger hilly lot with a long winding driveway, four to seven U7 access points, gate-end or driveway-end Protect cameras on the winding approach, and an outdoor coverage envelope at estate scale rather than suburban scale. A Northeast Old Aurora Heritage Conservation District home asks for the same network discipline but with the Town of Aurora heritage permit review of any exterior fastener placement on protected facades, the every-tree-is-a-heritage-asset clause that constrains any cable run trenching near root zones, and the plaster-and-lath substrate conversation for indoor flush-mount APs. An Aurora Highlands ranch bungalow runs three to four U7 access points with the gable-wall AP-and-drop conversation on the main living room and the principal-bedroom wing. An Aurora Estates, Aurora Heights, or Aurora Grove detached home runs three to five U7 access points on a finished-stock retrofit. A Bayview Wellington mixed-form deployment can be a low-rise condo single-gateway job, a stacked-town two-AP job, or a detached three-to-five-AP job on the same neighbourhood map. A Bayview Northeast / 2C secondary plan area stacked-town or condo phase opens a developer-coordinated pre-drywall window for the home buyer at substantial completion.
The right hardware list comes from the address and the floor plan, not from a package price sheet. The first call confirms which deployment your project actually is — and how this build connects to UniFi installation across the GTA.
How do you install UniFi across a Hills of St. Andrew Georgian estate on the Oak Ridges Moraine ridge?

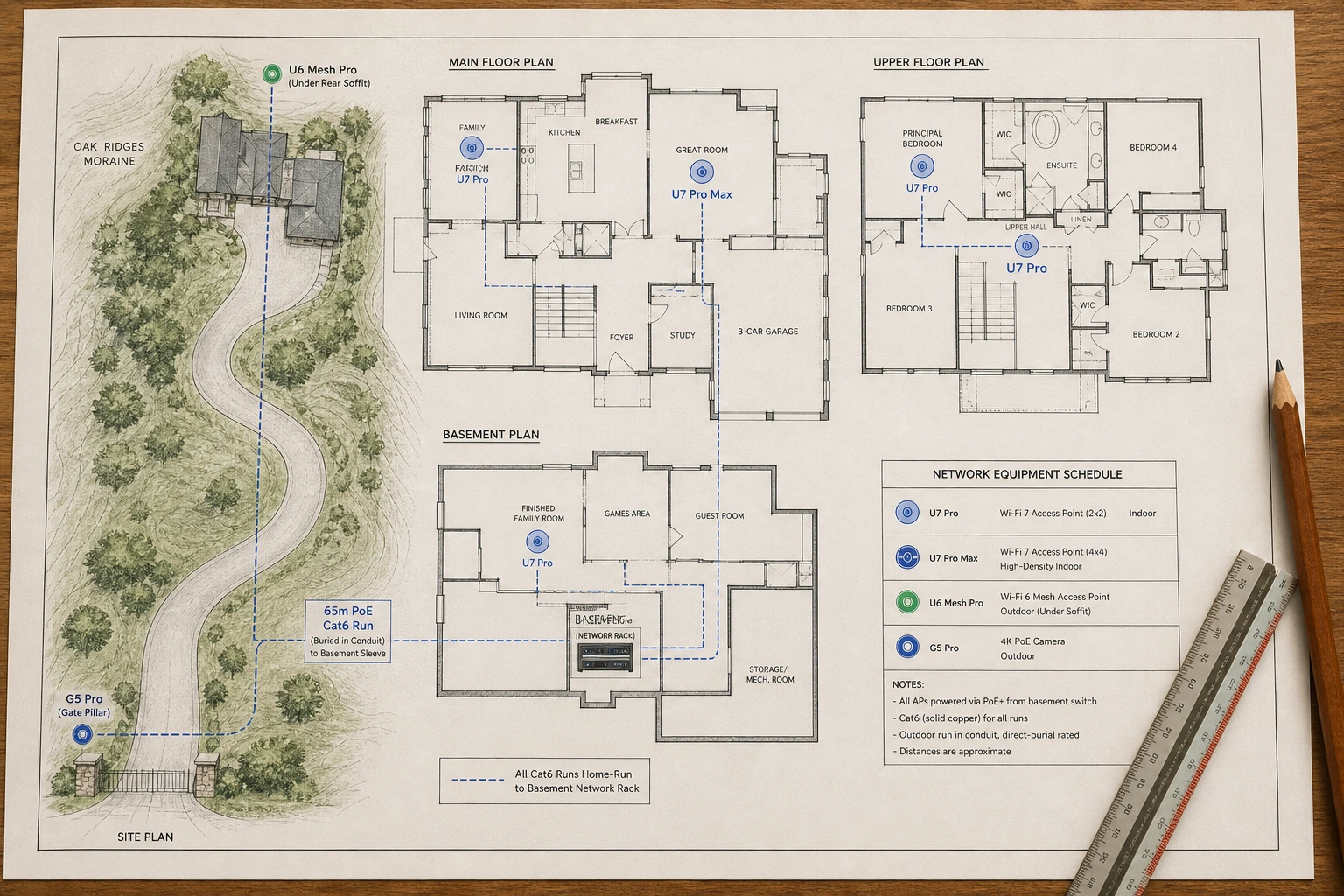

Across Hills of St. Andrew, a UniFi installation runs a UDM Pro Max or Cloud Gateway Ultra in the basement utility room with four to seven U7 Pro and U7 Pro Max access points across a 3,500-to-6,500-square-foot Georgian-brick executive detached on a half-acre-or-larger hilly lot, plus a gate-end or driveway-end Protect camera on the long winding approach where the elevation change from the street to the front door and the distance from the basement service closet to the gate make a doorbell-mounted camera insufficient.

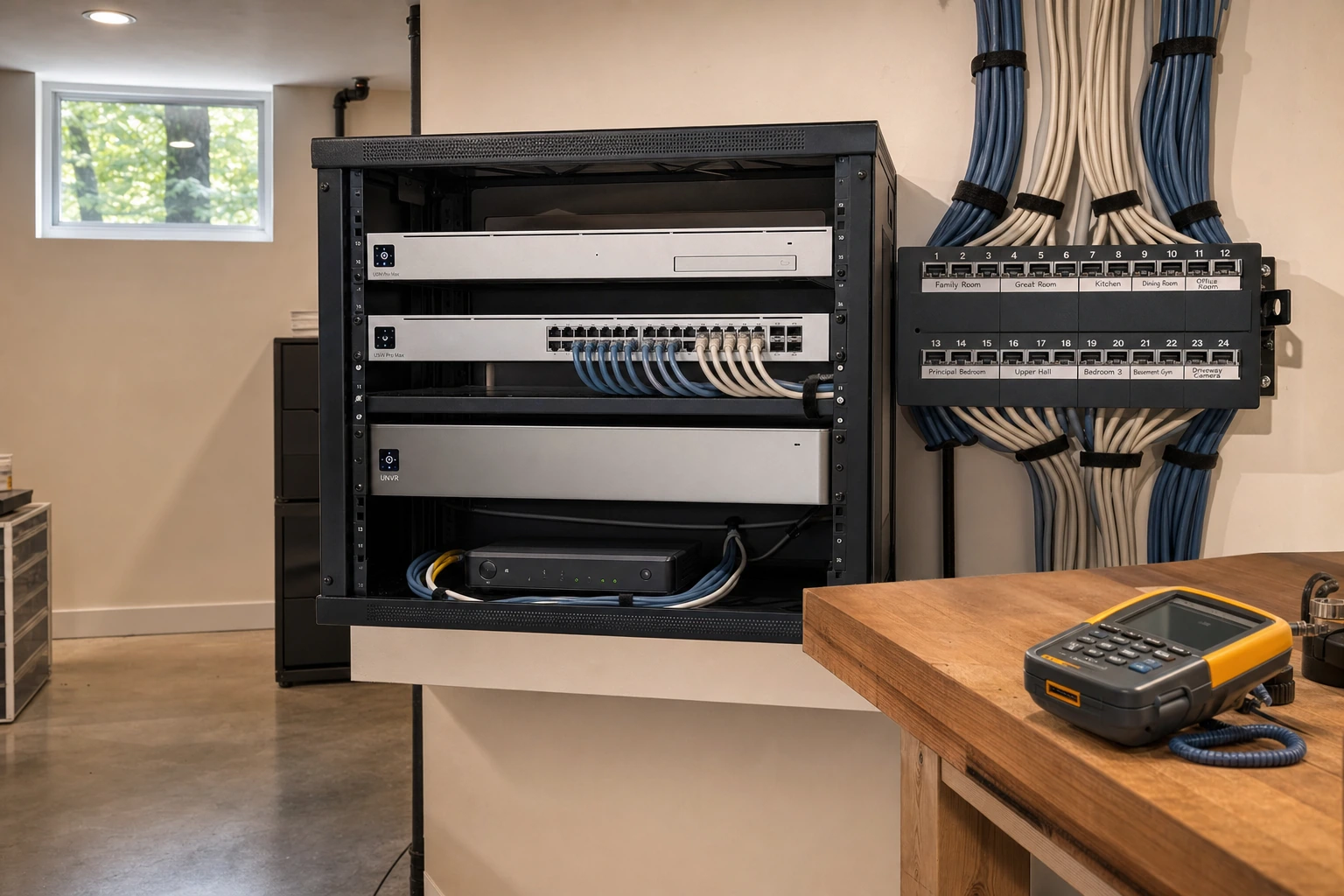

The gateway is a UDM Pro Max or a Cloud Gateway Ultra in the basement utility room behind whatever the homeowner runs for an ISP — Bell Fibe FTTH is widely available across the corridor and the Bell GigaHub moves into bridge mode behind the UniFi gateway. A USW-Pro-24-PoE or USW-Lite-16-PoE feeds the access points and any Protect cameras. Indoor coverage typically runs one U7 Pro on the main floor above the kitchen-living transition, one in the great-room or family-room ceiling on the Georgian, French Country, or Tudor revival floor plans common across the corridor, one in the principal-bedroom wing on the upper level, one in the upper-floor hallway, and one in the walkout or finished basement family room. Larger Hills of St. Andrew estate plans and the Aurora Estates custom builds add a sixth or seventh AP in a secondary upper-floor wing, in a bonus room over the garage, or in a separate guest wing.
Hills of St. Andrew’s half-acre-and-larger lots and the winding-driveway approach are the part of this archetype that needs its own conversation. The long driveway, the Oak Ridges Moraine ridge-edge elevation change, and the distance from the basement utility room to the gate or to the foot of the driveway can put the gate-end Protect camera 40 to 100-plus metres from the service closet. A G5 Pro at the gate or at the foot of the driveway, fed by a PoE Cat6 drop from the basement rack through buried conduit the landscape contractor placed during construction or during a subsequent landscape rebuild, covers the driveway approach and the front-of-house from an angle the doorbell cannot.
On the largest Hills of St. Andrew lots the gate-end camera run exceeds Cat6’s 100-metre limit and needs a PoE injector at a mid-driveway junction box or a buried fibre run to a remote outdoor switch placement. We budget that into the proposal during the site survey rather than discovering it on install day. Properties immediately adjacent to St. Andrew’s College’s 126-acre campus also have the option of an outdoor U6 Mesh Pro on the rear elevation if there is a back-yard pool or pool-house position the architect or landscape plan called out — that AP gets its own Cat6 drop from the basement rather than back-hauling off an indoor AP.

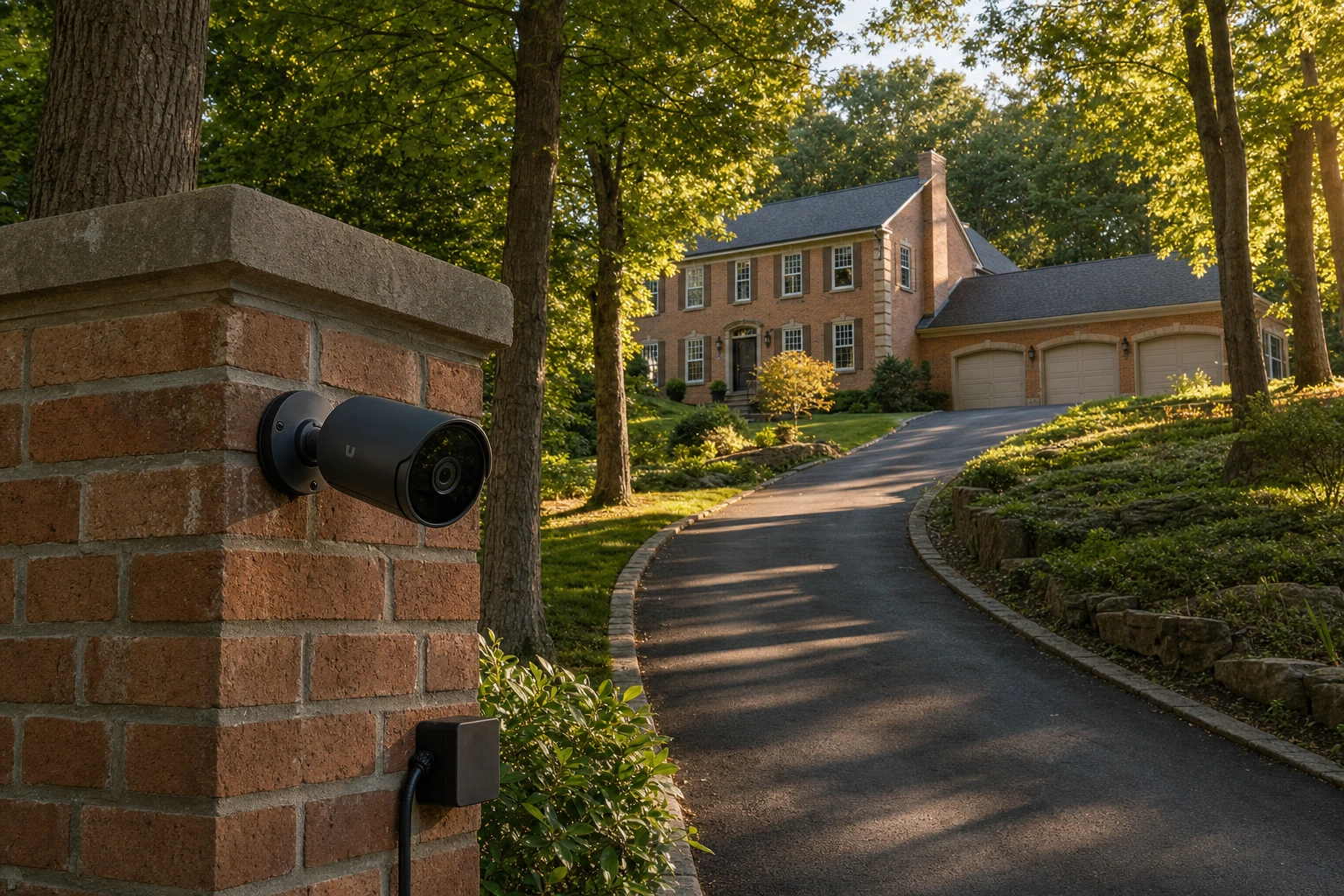

Protect cameras on a Hills of St. Andrew estate deployment typically cover the gated or winding-driveway approach, both side yards, the front entry, and the rear elevation — five to seven cameras on the standard estate lot, seven to nine on the larger half-acre-plus parcels with separate garage blocks or pool houses. Footage records locally to a UNVR or a Cloud Key+ in the basement utility room with redundant drives — no monthly cloud fee — and remote access runs through Ubiquiti’s own infrastructure. UniFi Access at the front door, the side entry, and the rear garden gate ties the family’s mobile-app unlock, the household-staff NFC fobs, and the trade-window scheduling rules into the same controller the network and the cameras live on — and it pairs cleanly with Control4 home automation in Aurora on the homes that combine the two.
- Indoor AP plan: Four to seven U7 Pro and U7 Pro Max APs across a 3,500-to-6,500-square-foot Georgian, French Country, or Tudor revival executive detached.
- Winding-driveway Protect: G5 Pro at the gate or at the foot of the winding driveway, fed by a PoE Cat6 drop from the basement rack through buried conduit.
- Half-acre-plus PoE budget: Mid-driveway PoE injector or buried fibre run where the gate-end run exceeds Cat6’s 100-metre limit.
- UniFi Access on estate entries: Front door, side entry, and rear garden gate adopted into the same controller.
- Local Protect storage: UNVR or Cloud Key+ with redundant drives in the basement rack — no monthly cloud fee.
How do you fit UniFi into a Northeast Old Aurora Heritage Conservation District home with the heritage-tree clause?
Inside the Northeast Old Aurora Heritage Conservation District the UniFi build has to respect the Town of Aurora heritage permit review before any exterior alteration on a designated property — outdoor cameras, exterior APs, soffit penetrations, exterior keypads — and the every-tree-is-a-heritage-asset clause constrains any cable trenching near root zones in the front-yard and side-yard gardens. Inside the late-nineteenth-century and early-twentieth-century stock, the plaster-and-lath wall and ceiling substrate changes the fastener and back-box approach for indoor flush-mount APs.
Interior network architecture is the same UniFi network we build anywhere. A Cloud Gateway Ultra or UDM Pro in the basement utility room next to a Bell Fibe ONT or a Rogers Ignite gateway in bridge mode; a USW-Lite-16-PoE feeding three to five U6 Pro or U7 Pro access points across a 2,000-to-3,500-square-foot Ontario Victorian Vernacular, Craftsman Bungalow, Edwardian, or Queen Anne Revival detached home; a VLAN map for primary / IoT / guest / camera. Inside-house cable routes follow existing chases, basement joist bays, and the original gas-light or knob-and-tube conduit paths the homeowner’s electrician retired — nothing visible on a finished interior surface.

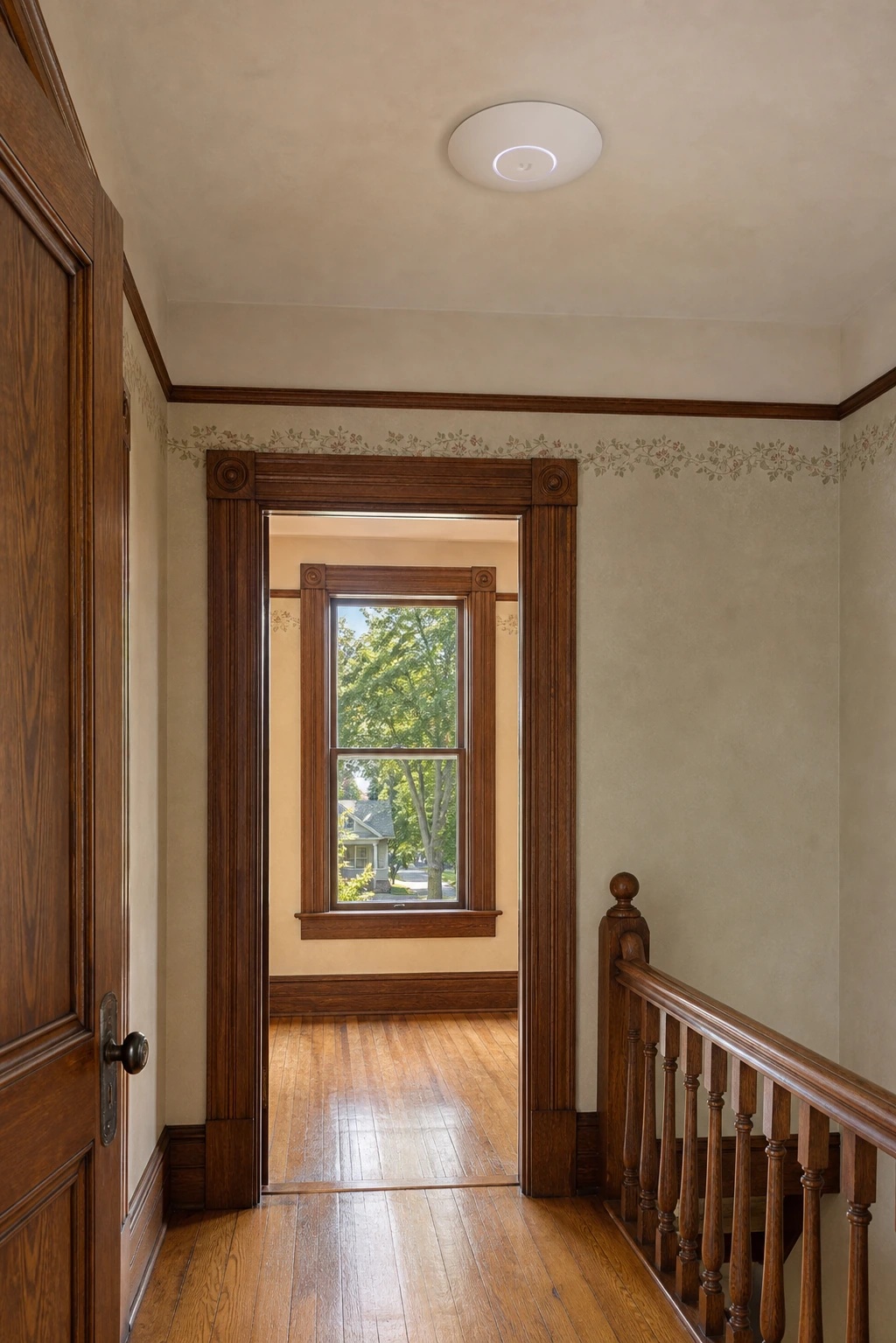

Plaster-and-lath ceiling substrate changes the AP fastener and back-box conversation. A standard residential AP back-box screwed into a plaster ceiling without lath support pulls out under the weight of the unit; we anchor to the underlying joist, span across two lath strips with a low-profile bracket, or relocate the AP to a more cooperative ceiling location when the protected detailing of the room rules out a centre-of-ceiling mount. The U6 Pro and U7 Pro form factor sits flat to the finished ceiling once the bracket is dressed. The compact grouping of early decorative concrete block structures inside the precinct has its own conversation — concrete block does not accept a standard back-box at all, so the AP lands on an interior partition with a custom plate or is relocated to a cooperative wood-frame addition where the original structure permits.
The heritage permit conversation lives entirely on the exterior. A Protect camera at the front door of a designated Northeast Old Aurora detached can sometimes be mounted to the porch ceiling — an interior soffit, not the protected facade — without triggering an exterior-fastener review. A Protect camera on the rear elevation typically clears the same review because the rear elevation is not the protected facade. Any visible mount on a protected facade — a side elevation facing a public-realm view, a front-of-house exterior wall — runs through the Town of Aurora heritage permit process before installation, and we plan the proposal around what the review is realistically going to approve.
The every-tree-is-a-heritage-asset clause is the part of the Northeast Old Aurora HCD that no sibling HCD on any other UniFi page carries. Every tree on every designated lot is treated as a heritage asset under the by-law, which constrains exterior cable routing through gardens, rules out trenching close to root zones for outdoor APs or driveway-end Protect cameras, and changes the survey-day conversation about how a PoE run actually reaches a rear-yard or side-yard mount. Where a buried conduit would cut through a heritage tree’s root zone, we redirect along an existing hardscape edge, use the porch or eaves as an aerial drop path, or relocate the AP or camera to a cooperative position that produces the coverage without disturbing root zones. Outdoor APs on a Heritage District property follow the same logic — a U6 Mesh Pro under the rear soffit covering the back garden rarely triggers a review or a tree-asset conflict; an outdoor AP on a front-facing exterior wall or a far-back-yard mount needing a long buried run typically does.
- Town of Aurora heritage review: Town review of any exterior fastener on a designated facade — folded into the proposal lead time.
- Every-tree-as-heritage-asset clause: By-law #4855.06.D treats every tree on every designated lot as a heritage asset — PoE routes avoid root-zone trenching.
- Plaster-and-lath fastener approach: Anchor to the joist or span across two lath strips with a low-profile bracket so the AP sits flat.
- Concealed interior cable: Existing chases, basement joist bays, and retired gas-light or knob-and-tube paths — nothing visible on a finished surface.
- Decorative concrete block stock: AP relocated to an interior partition or a cooperative wood-frame addition where original block construction rules out a back-box.
How do you place UniFi access points in an Aurora Highlands ranch bungalow with vaulted gable walls?
Across the Aurora Highlands ranch and back-split bungalow stock from the late 1960s through the 1980s, the AP cannot land on a cathedral-ceiling apex without an awkward stick-down mount, so the U7 Pro mounts on the vaulted-ceiling gable wall (or on a perpendicular partition where the gable detailing rules out a wall mount), with the PoE Cat6 backhaul fished down inside the gable-wall stud cavity to the unfinished basement directly below.
A typical Aurora Highlands ranch-bungalow build runs a Cloud Gateway Ultra or a UDM Pro in the basement utility room, a USW-Lite-16-PoE switch, and three to four U7 Pro access points across a 1,800-to-2,800-square-foot single-storey-on-basement floor plan. The first AP mounts on the main living room’s vaulted gable wall above the picture-window line at a height that clears the lower edge of the ceiling slope. The Cat6 drop from that AP goes inside the gable-wall stud cavity, exits at the basement ceiling line into the unfinished basement directly below, and lands on the basement-utility-room patch panel in a 4-to-6-metre run. The second AP mounts in the principal-bedroom wing — sometimes on its own vaulted gable wall and sometimes on a flat hallway ceiling where the principal-bedroom wing is a slab addition rather than the original vault. The third AP serves the back-split lower level on the back-split floor plans or the finished basement on the slab-basement floor plans. A fourth AP handles a home-office wing or a basement gym on the larger Aurora Highlands plans.
A back-yard outdoor AP under the rear soffit is a common add for the homeowners who use Wi-Fi outside in summer — the Aurora Highlands lot pattern usually leaves a 30-to-45-foot back yard with a deck or patio off the kitchen-dining transition that asks for one U6 Mesh Pro on the rear soffit and one PoE drop from the basement rack. Where the rear soffit is a particularly low overhang, the AP sometimes mounts on the soffit’s underside facing forward into the yard with a slight downward tilt rather than facing straight down. Protect cameras on a typical Aurora Highlands deployment are minimal — a single front-door camera and an optional rear-deck camera covering the back-yard sliding-door entry — and the storage option is usually a Cloud Key+ in the basement rack rather than a UNVR.
Late-1960s-through-1980s Aurora Highlands stock sometimes has limited switch-box depth and load capacity on some original circuits; where a UniFi keypad, an Access reader, or a PoE injector needs to land on a circuit that needs updating, we coordinate with the homeowner’s electrician during the site survey rather than discovering the limitation on install day.

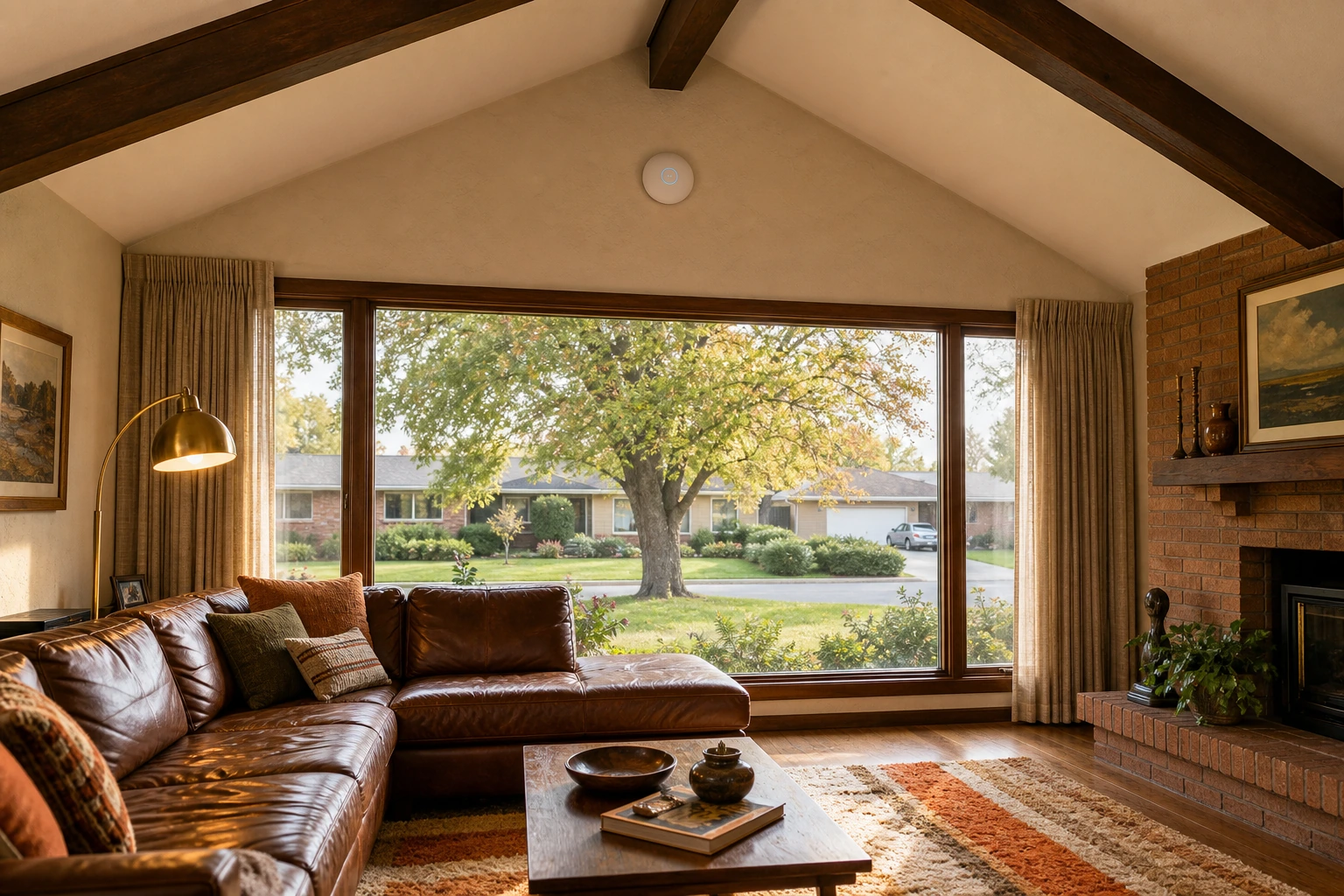

- Gable-wall AP-and-drop: U7 Pro on the vaulted-ceiling gable wall above the picture-window line, Cat6 backhaul fished inside the stud cavity to the unfinished basement directly below.
- Three-to-four AP layout: Main living-room gable, principal-bedroom wing, back-split lower or finished basement, plus an optional home-office or basement-gym AP.
- Rear-soffit outdoor AP: U6 Mesh Pro on the rear soffit covering the 30-to-45-foot back yard with a deck or patio off the kitchen-dining transition.
- Minimal Protect scope: Front-door and optional rear-deck cameras, Cloud Key+ in the basement rack — no UNVR on the standard build.
- Late-1960s circuit coordination: Coordinate updates to original circuits where a UniFi keypad, Access reader, or PoE injector needs them.
How do you fit UniFi into an Aurora Estates, Aurora Heights, or Aurora Grove home?
Across Aurora Estates’ luxury custom detached and high-end townhouses, Aurora Heights’ 1970s-and-1980s two-storey detached, and Aurora Grove’s mixed 1990s-and-2000s detached plus recent infill, the UniFi installer Aurora build runs three to five U7 access points on a finished-stock retrofit, with one or two Protect cameras at the front door and rear deck typical on the established-detached scope.
The gateway is usually a Cloud Gateway Ultra, a UDM Pro, or a UDM Pro Max on the larger Aurora Estates floor plans. A USW-Lite-16-PoE or USW-Pro-24-PoE feeds the access points and any Protect cameras. Indoor coverage typically runs one U7 Pro on the main floor above the kitchen-living transition, one on the upper-floor hallway, one in the principal-bedroom or home-office wing on the upper level, and one in the basement or walkout family room. A back-yard outdoor AP under the rear soffit covers the deck and the rear lawn for the homeowners who use Wi-Fi outside in summer. Aurora Estates custom builds with a separate guest wing, an attached pool house, or a basement gym add a fifth AP on a dedicated home-run.

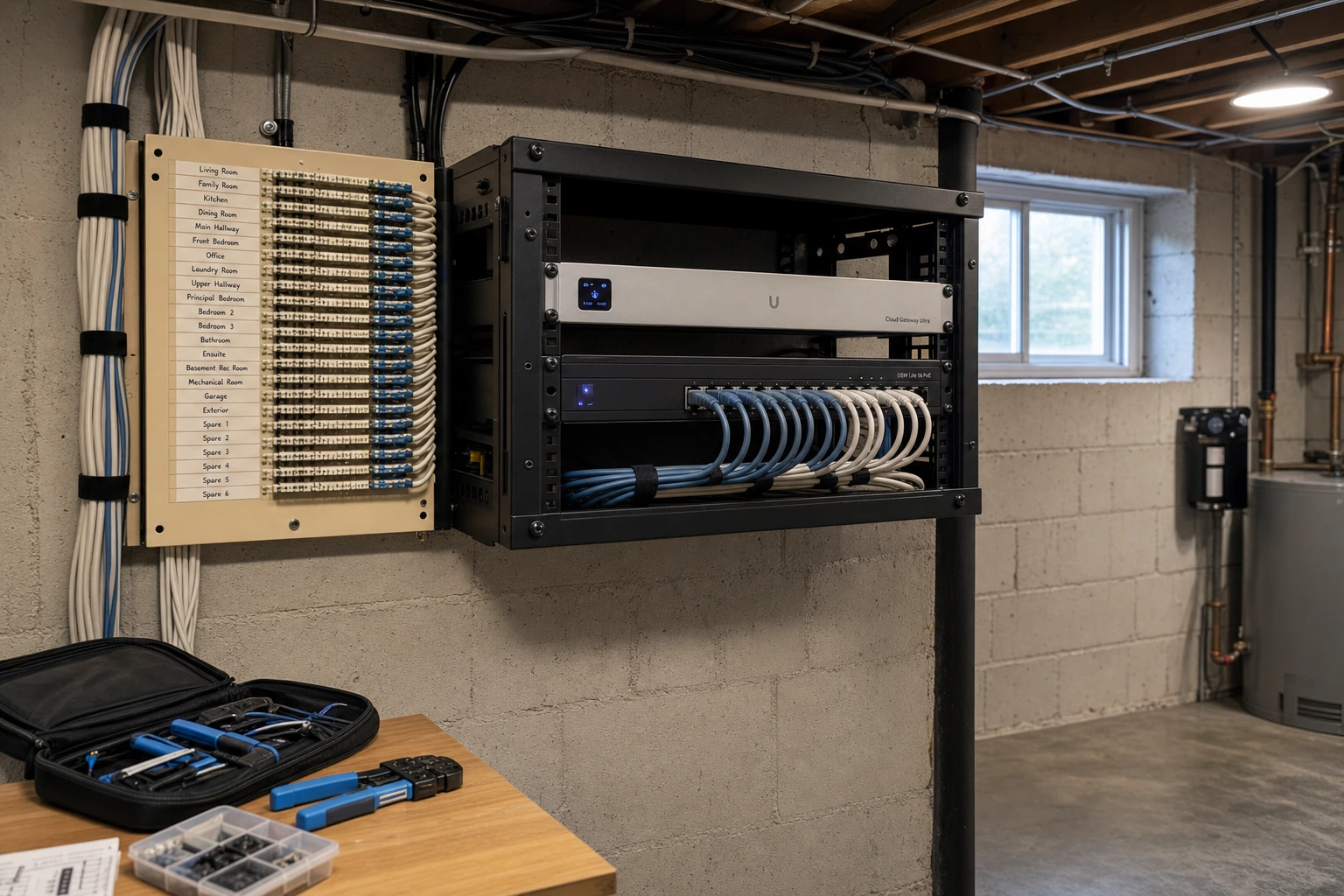

Aurora Heights two-storey 1970s-and-1980s detached often has an existing chase stack from the basement utility room up to the second-floor hallway through a series of joist-bay-aligned closets — we reuse that chase for the new Cat6 home-runs where it lines up with the AP plan. Some Aurora Heights homes have had a previous structured-wiring panel added during a renovation; we take that over and re-terminate where the original installer’s panel layout no longer fits the new UniFi plan.
Aurora Grove’s recent infill stock typically has a modern structured-wiring panel in the basement utility room with home-run drops to the main-floor and upper-floor rooms; we reuse those drops where they land in the right places and add only what the AP plan requires. Rogers Ignite XB7 or XB8 is the dominant ISP on parts of Aurora Village and pockets of the Northeast Old Aurora HCD; Bell Fibe is dominant on Aurora Estates, Aurora Heights, and Aurora Grove. The modem moves into bridge mode behind the UniFi gateway and the UniFi controller takes over — the same pattern a UniFi installer York Region homeowners ask for across the wider region.
- Three-to-five U7 APs: Main floor, upper-floor hallway, principal-bedroom or home-office wing, basement family room — plus an optional rear-soffit outdoor AP.
- Aurora Heights chase-stack reuse: Original closet-to-closet chase between the basement utility room and the second-floor hallway carries the new Cat6 home-runs.
- Aurora Grove panel reuse: Modern structured-wiring panel home-run drops reused where they land in the right places.
- Aurora Estates custom add: Fifth AP on a dedicated home-run for guest wing, pool house, or basement gym.
- Bell Fibe / Rogers Ignite bridge: Gateway moves to bridge behind the UniFi gateway, controller takes over routing and DHCP.
How do you install UniFi across a Bayview Wellington low-rise condo, stacked town, or detached?
Across the Bayview Wellington precinct along Bayview Avenue and Wellington Street, the UniFi build is one of three deployments depending on the built form — a single-gateway-plus-AP scope in a low-rise condo suite, a single-gateway-plus-two-AP scope in a freehold or condo stacked town, or a three-to-five-AP scope in a detached single-family — with property-management $2M certificate-of-liability paperwork on the condo and stacked-town deployments.
A Bayview Wellington low-rise condo deployment is almost always a UniFi Dream Router 7 or a Cloud Gateway Ultra. The UDR7 has built-in Wi-Fi 7 and covers most one- and two-bedroom suites on its own; the UCG-Ultra pairs with a separate U7 Pro ceiling-mount access point when the suite layout has a corner bedroom or a balcony that needs its own coverage source. Either configuration replaces the ISP-supplied gateway — Bell GigaHub or HH4000 in the Bell-served buildings, Rogers Ignite XB7 or XB8 in the Rogers-served buildings, Cogeco where it serves a specific York Region address — and the UniFi gear takes over routing, DHCP, VLANs, and Wi-Fi.

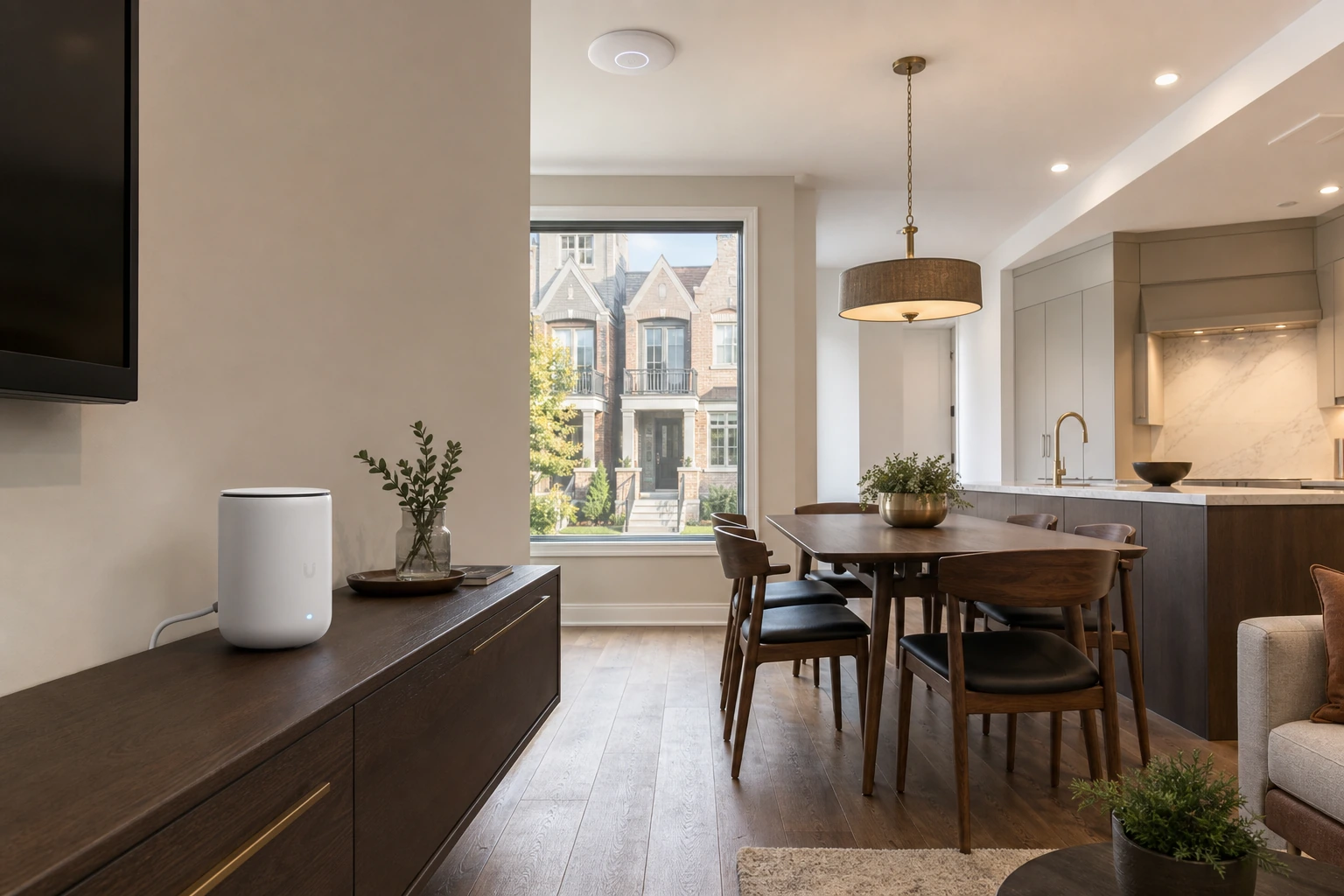

A Bayview Wellington freehold or condo stacked-town deployment usually runs a UDR7 or a UCG-Ultra plus a second U7 Pro access point because the two-or-three-floor stacked layout asks for one AP per main living floor. The Cat6 backhaul to the upper AP runs inside the demising wall stud cavity where the original builder left a chase, or down a closet-to-closet column where one exists, or via a slim painted raceway colour-matched to the wall where neither chase is available. Stacked-town condo board approval and the $2M certificate of liability submission are part of the standard scope.
A Bayview Wellington detached single-family deployment is the standard suburban-detached scope — three to five U7 Pro access points across a 2,000-to-3,200-square-foot traditional-brick detached with front porch and decorative gables, one or two Protect cameras at the front door and rear deck, and a Cloud Key+ in the basement utility room. The decorative-gable architecture sometimes constrains where an exterior fastener can land cleanly on a front elevation; we keep exterior hardware off the decorative-detail areas of the gable and use the porch ceiling, the side elevation, or the rear elevation for any exterior Protect camera. The same hardware list pairs cleanly with a Samsung Frame TV installation in Aurora when the suite or detached home’s primary display is changing in the same visit.
- Low-rise condo suite: UDR7 or UCG-Ultra plus an optional U7 Pro AP for corner-bedroom or balcony coverage.
- Stacked-town two-AP layout: UDR7 or UCG-Ultra plus a second U7 Pro on the upper floor, Cat6 backhaul inside the demising-wall stud cavity or a slim painted raceway.
- Detached suburban scope: Three to five U7 Pro APs across a 2,000-to-3,200-square-foot traditional-brick detached with front porch and decorative gables.
- $2M COI paperwork: Property-management certificate submitted on the condo and stacked-town builds, elevator booking and scope-of-work letter handled.
- Decorative-gable exterior discipline: Exterior hardware kept off the decorative-detail areas of the front gable; porch ceiling, side elevation, or rear elevation used instead.
How do you coordinate UniFi with an active Bayview Northeast / 2C secondary plan area build?
Across the active Bayview Northeast / 2C secondary plan area medium-density and infill phasing, the UniFi rough-in window is developer-coordinated — the home buyer at substantial completion or the stacked-town purchaser typically inherits the developer’s low-voltage trade scope and adds the UniFi gateway, switch, APs, and any Protect cameras as a finished-suite or finished-home install on the developer’s wiring.
On a 2C stacked-town or condo unit, the developer’s low-voltage trade has typically pulled Cat6 home-runs from a utility closet or in-suite panel to a builder-default AP-location ceiling box on each main living floor, plus drops to the TV walls and the home-office desk position the floor plan calls out. We arrive at substantial completion (or shortly after, once the buyer takes possession), confirm what the developer actually pulled (developer cable plans are rarely perfect — extra walks identify the runs that did not land), install the UniFi gateway and switch in the utility closet or in-suite panel, mount the APs on the builder-default ceiling boxes, and bring the network up. Any net-new drops the buyer wants beyond the developer scope — a balcony outdoor AP, an extra Protect camera, an Access reader on a side entry — are quoted as a surface-raceway or in-wall add against the actual finished walls.
On a 2C low-rise condo phase, the same pattern applies on the suite side — UDR7 or UCG-Ultra in the in-suite panel, one or two U7 Pro APs on the developer-default ceiling boxes, and the building’s $2M certificate of liability submission for any work touching a demising wall or a ceiling assembly.

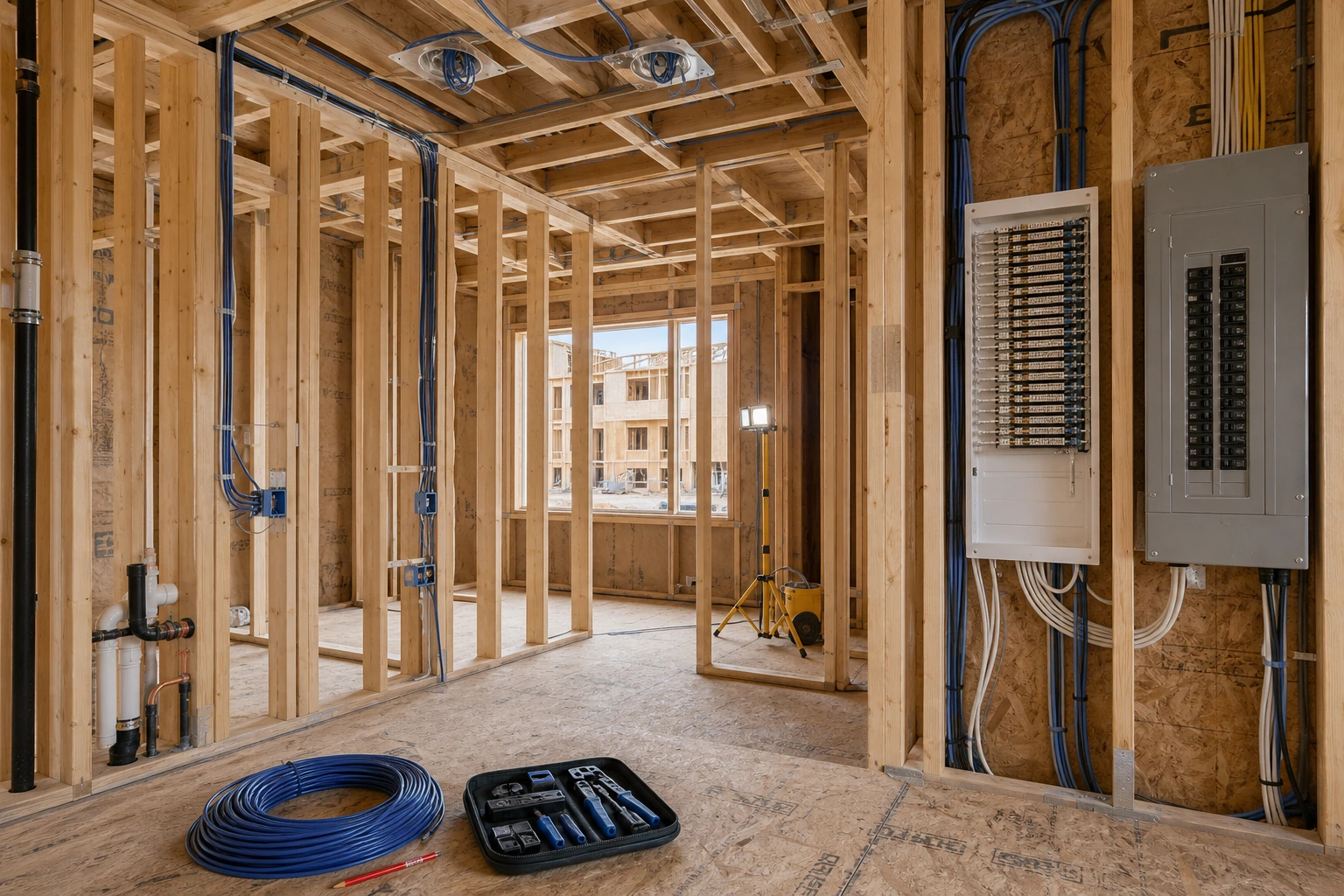

Where a custom 2C townhouse buyer can negotiate access to the pre-drywall window with the developer, the conversation is the same as any other pre-drywall coordination — Cat6 home-runs, AP back-boxes, structured-wiring panel terminations, outdoor PoE conduit through the foundation — but the developer’s standard construction schedule and the trade-stacking on a phased multi-unit build make that window narrower than on a custom single-family build. We document the cable map, label every run, and hand a copy to the developer’s site super so the drywall crew does not bury a run without a marker.
The Bayview Northeast / 2C pre-drywall opportunity is real and Aurora-specific. The procurement model is different from a single-family executive new build because the developer owns the schedule and the trade-stacking, but the technical outcome — a wired-backhaul UniFi network already routed through the walls of a freshly handed-over stacked town or low-rise condo suite — is the same. The same cable map supports a coordinated UniFi Protect IP cameras add at substantial completion.
- Substantial-completion install: UniFi gateway, switch, and APs land on the developer’s pre-pulled Cat6 home-runs and builder-default ceiling boxes.
- Developer cable-plan verification: Extra walks identify runs that did not land, and net-new drops are quoted against the finished walls.
- Developer-coordinated pre-drywall: Cat6 home-runs, AP back-boxes, structured-wiring panel terminations, and outdoor PoE conduit run through the foundation before drywall closes — on the negotiable custom 2C townhouse window.
- Stacked-town and low-rise scope: UDR7 or UCG-Ultra in the in-suite panel, one to two U7 Pro APs on the builder-default ceiling boxes.
- Cable map handoff: Documented and labelled cable map handed to the developer’s site super so the drywall crew does not bury a run without a marker.
Should a new UniFi build in Aurora use Wi-Fi 7 or stay on Wi-Fi 6 in 2026?
Most new UniFi installations in Aurora in 2026 should use the U7 generation — U7 Pro for the standard residential AP slot, U7 Pro Max where the room or zone needs eight spatial streams and 6 GHz capacity — because the price gap over U6 Pro is small and the new generation is what your iPhone 16, your MacBook Pro M4, and your 2025-or-newer Wi-Fi 7 devices actually negotiate.
The case for Wi-Fi 7 in a residential UniFi build in 2026 is not theoretical. Apple shipped Wi-Fi 7 across the iPhone 15 Pro and 16 line and across the M4 MacBook and iPad lineup; Samsung shipped it across the Galaxy S24 and S25 generations; most premium laptops sold from late 2024 onward include a Wi-Fi 7 radio. In a Hills of St. Andrew two-storey great room, an Aurora Highlands ranch-bungalow vaulted gable wall, an Aurora Estates upper-floor home office, or a Bayview Wellington stacked-town main floor, the devices that actually need bandwidth in 2026 — laptops on calls, tablets streaming 4K, phones backing up to iCloud overnight — are Wi-Fi 7 capable.
The practical effect inside an Aurora property: the U7 Pro adds the 6 GHz band, which is uncongested in almost every residential neighbourhood in the Town and carries gigabit-plus throughput at short range with low latency. The U7 Pro Max adds a dedicated spectral scanning radio and eight spatial streams — relevant in a Hills of St. Andrew great room with a two-storey ceiling and stone-clad fireplace surround, in an Aurora Estates upper-floor wing serving the principal-bedroom suite and the secondary bedrooms on one AP, and in a Hills of St. Andrew home office where the same AP carries the upper-floor bedrooms and a Cat6-fed AV closet.
U6 Pro still has a place — a basement gym AP serving a few smart treadmills, a Northeast Old Aurora heritage home where plaster-and-lath substrate constraints prefer a smaller form factor, an Aurora Heights hallway AP serving primarily mobile-class traffic. We mix generations where it makes sense rather than buying one tier across the whole property and overspending on the rooms that do not need it.
The wired backhaul does not change between Wi-Fi 6 and Wi-Fi 7. Cat6 to each AP is the same plan either way; the upgrade path from U6 Pro to U7 Pro is a hardware swap on the same cable run — meaningful for Aurora Heights and Aurora Grove homeowners who started on U6 Pro a few years ago and want to move up.
How does the UniFi installation process work in Aurora?
Every UniFi build Aurora homeowners commission moves through four phases — site survey, written proposal, install, handoff — and the timeline depends on the property archetype, not the gear list.
The first phase is the site survey. We measure the floor plan, identify the wall and ceiling construction (concrete slab in a Bayview Wellington low-rise condo, plaster-and-lath in a Northeast Old Aurora HCD detached, drywall over wood-frame in Hills of St. Andrew, Aurora Estates, Aurora Heights, Aurora Grove, Aurora Highlands, or Bayview Wellington detached, vaulted gable wall in an Aurora Highlands ranch bungalow), confirm the ISP demarc location (Bell Fibe ONT, Rogers Ignite cable head-end, Cogeco handoff), photograph the existing rack or utility area, and identify the cable routes the install will use. A Hills of St. Andrew survey adds the winding-driveway camera scope and the half-acre-plus long-driveway PoE budget. A Northeast Old Aurora HCD survey adds the Town of Aurora heritage permit review window and the every-tree-is-a-heritage-asset clause mapping against root zones and canopy. An Aurora Highlands survey adds the gable-wall AP-and-drop scope and the late-1960s-through-1980s circuit-update scope where an existing circuit cannot carry a new device. A 2C survey adds the developer coordination window and the substantial-completion install timing.
The second phase is the written proposal. Gateway, switch, AP count and model (U7 Pro / U7 Pro Max / U6 Pro mix), outdoor AP count and model, Protect camera scope if applicable, Access scope if applicable, VLAN plan, cable count and routing, rack contents, and a line-item budget. Nothing proceeds on verbal scope; the proposal is documented, itemised, and approved in writing before any equipment is ordered.
The third phase is the install. Cable goes in first, dressed back to the rack location through the route the survey identified (or staged into the developer wiring on a 2C substantial-completion install). The rack is built and labelled — gateway, switch, UNVR or Cloud Key+, ONT or modem in bridge mode, each port labelled at both ends. Access points mount; outdoor APs mount; Protect cameras mount; Access readers mount where applicable. The controller comes up, VLANs build, devices adopt, firmware updates run, and the network tests against the Cat6 runs with a Fluke certification report where one is requested.

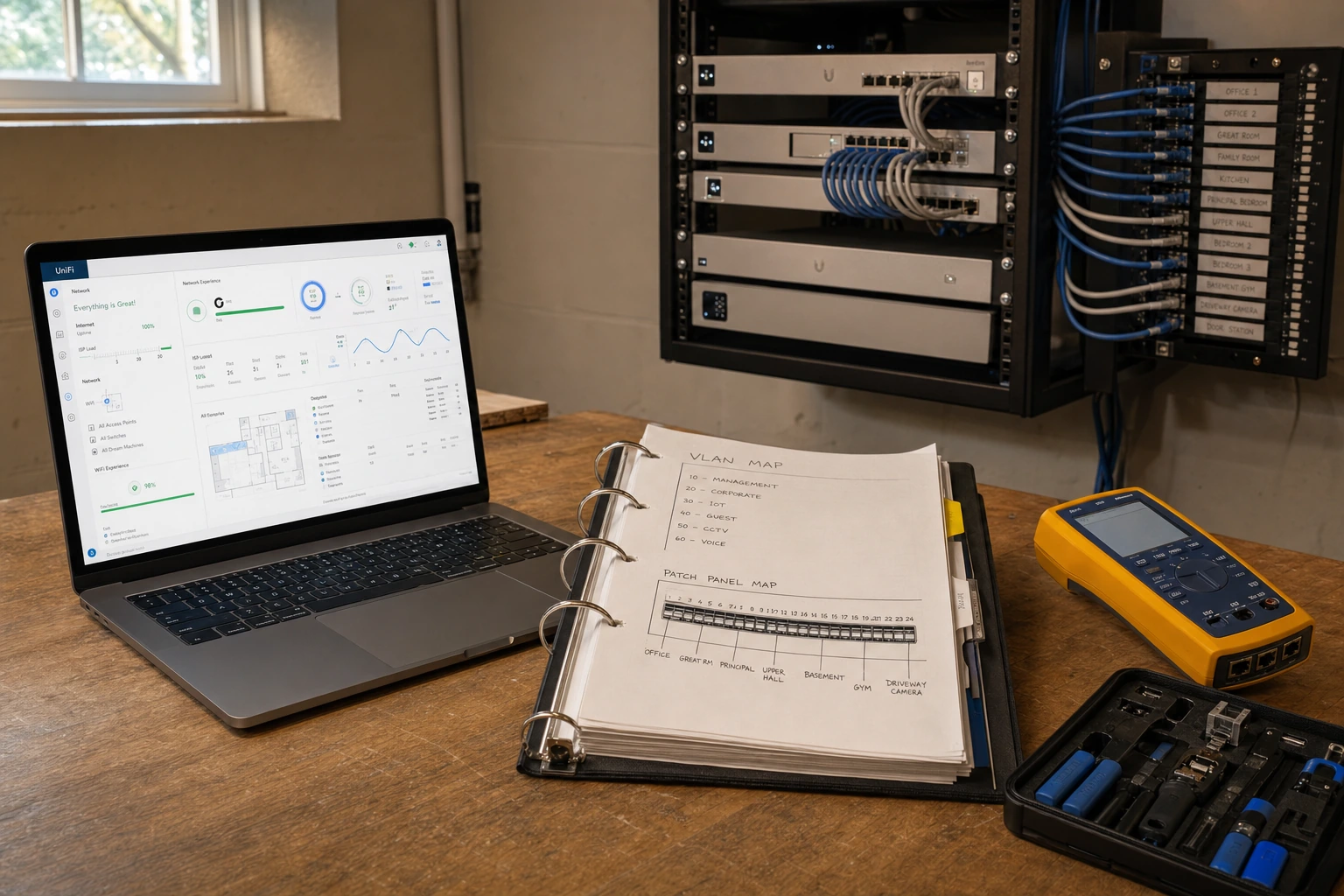

The fourth phase is the handoff. A documented binder or PDF covers the controller dashboard, the UniFi Network app, the Protect app (cameras), the Access app (doors and gates), the VLAN map, the device-by-device IP and credential list, the rack labelling, and a direct line for post-install support. Firmware updates, new device adoptions, and routine tuning are part of the relationship from that point forward.
Site survey
Floor plan, construction type, ISP demarc, cable routes, winding-driveway camera scope, half-acre-plus long-driveway PoE budget, HCD heritage-tree clause mapping, Aurora Highlands gable-wall drop scope, 2C developer coordination window — captured before any quote.
Written proposal
Gateway, AP count, outdoor AP scope, switch, Protect / Access scope, VLAN plan, line-item budget — approved in writing before any equipment is ordered.
Install
Cable, rack, indoor and outdoor APs, cameras, Access readers, controller, VLANs, firmware, Fluke certification report on request.
Handoff
Binder or PDF covering the apps, VLAN map, device list, rack labels, and a direct line for ongoing support.
How much does a UniFi installation cost in Aurora?
A UniFi installation cost in Aurora ranges from roughly $1,500 for a Bayview Wellington low-rise condo single-gateway-plus-AP scope to $40,000-plus for a Hills of St. Andrew half-acre-plus Georgian estate with full Protect grid, UniFi Access, and the long-driveway PoE budget — and every quote is line-itemised after the site survey rather than drawn from a package price sheet.
A Bayview Wellington low-rise condo build — a UDR7 or UCG-Ultra-plus-U7-Pro gateway-and-AP scope, Bell GigaHub or Rogers Ignite transition to bridge mode, VLAN configuration, guest and IoT networks, and one suite of concealed PoE cable or a slim painted raceway — typically runs $1,500 to $3,500 across the Bayview Wellington low- and mid-rise condo stock.
A Bayview Wellington freehold or condo stacked town — UDR7 or UCG-Ultra plus one or two U7 Pro APs, Cat6 backhaul through a demising-wall chase or closet-to-closet column, property-management certificate of liability and elevator booking included — generally runs $2,500 to $5,500.
A 2C secondary plan area substantial-completion stacked town or condo deployment — same gateway-and-AP tier on the developer’s pre-pulled cable, any net-new drops quoted against the finished walls — generally runs $2,500 to $5,500.
An Aurora Heights, Aurora Grove, or smaller Aurora Highlands deployment — UCG-Ultra or UDM Pro gateway, USW-Lite-16-PoE switch, three to five U7 Pro access points across a 2,000-to-3,200-square-foot detached floor plan, Cat6 backhaul through existing chases or the Aurora Highlands gable-wall drops, and one or two Protect cameras at the front door and rear deck — generally lands $4,500 to $9,500.
A larger Aurora Highlands or Aurora Estates ranch-bungalow or detached deployment with the gable-wall scope plus a back-yard outdoor AP and the rear-deck Protect camera — generally lands $5,000 to $11,000.
A Northeast Old Aurora Heritage Conservation District deployment — same gateway and AP tier as the established-detached neighbourhoods, with the Town of Aurora heritage permit review of any exterior camera or outdoor AP folded into the proposal, the every-tree-is-a-heritage-asset clause routing PoE around root zones, and the plaster-and-lath fastener approach folded into the install labour — generally lands $6,000 to $13,000, with the heritage-permit window adding lead time rather than line-item cost in most cases.
A Hills of St. Andrew Georgian estate deployment — UDM Pro Max or Cloud Gateway Ultra, USW-Pro-24-PoE, five to seven U7 Pro and U7 Pro Max indoor APs, a gate-end or driveway-end G5 Pro, two or three additional Protect cameras with Cloud Key+ or UNVR, optional UniFi Access at the front door — generally falls between $10,000 and $24,000 installed.
A Hills of St. Andrew half-acre-plus estate with the long-driveway PoE budget and the full Protect grid — UDM Pro Max, USW-Pro-Max-24-PoE, six to eight indoor APs, two outdoor APs, six to nine Protect cameras with UNVR, UniFi Access at the front and side entries, and PoE injector or buried fibre to the gate camera — generally falls between $18,000 and $40,000 installed.
A Wi-Fi 7 upgrade on an existing Ubiquiti network — swapping U6 Pro APs for U7 Pro on the existing Cat6 runs — typically runs $600 to $1,200 per AP installed, depending on access and ceiling work.
What does a typical Aurora UniFi project look like in practice?
A representative project in a Hills of St. Andrew Georgian estate pulls together everything the previous sections describe: a basement utility-room rack, six U7 Pro and U7 Pro Max access points on dedicated Cat6 backhaul, a UDM Pro Max behind a Bell Fibe 3 Gbps ONT in bridge mode, a winding-driveway G5 Pro Protect camera at the foot of the approach, two additional perimeter cameras, and a documented handoff binder waiting on the kitchen island at the end of the install day.
A realistic scenario: a 4,800-square-foot Hills of St. Andrew Georgian-brick executive detached on a hilly three-quarter-acre lot a short walk from the St. Andrew’s College perimeter, with a Bell Fibe 3 Gbps service, a winding driveway with a 65-metre run from the basement utility room to the gate-adjacent pillar, and an existing Eero Pro 6E mesh kit that lags the upper-floor home office in the evening, drops the basement gym Wi-Fi during workout playlists, and provides no real perimeter camera coverage. The site survey identifies the original builder’s chase stacks from the basement utility room up to the second-floor hallway, a foundation sleeve a previous landscape contractor placed in the driveway-side corner of the basement for low-voltage conduit, and the rear-elevation soffit detailing that will accept a concealed outdoor AP cable penetration.

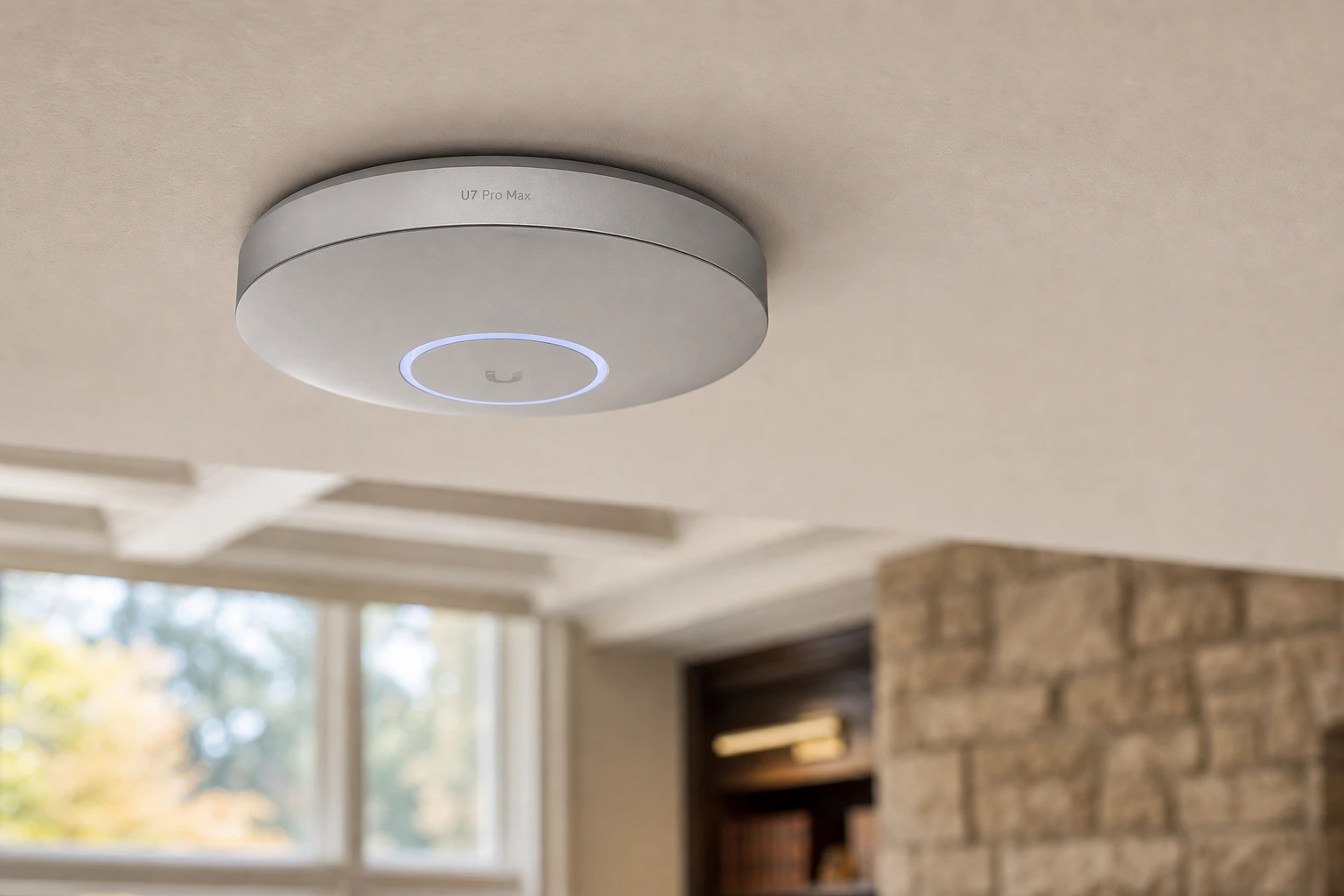

The proposal replaces the Eero with a UDM Pro Max, a USW-Pro-24-PoE, four indoor U7 Pro access points (one in the family-room ceiling, one in the upper-floor hallway, one in the principal-bedroom wing, one in the basement family room), one U7 Pro Max in the great-room ceiling on the two-storey side, one outdoor U6 Mesh Pro under the rear soffit covering the deck and the rear lawn toward the rear property line, a G5 Pro at the winding-driveway gate pillar fed by a 65-metre PoE Cat6 run through the existing foundation sleeve (within Cat6’s 100-metre budget with a small margin), two G5 Bullets on the side elevations, and a Cloud Key+ with redundant local storage in the basement rack.
Install is a two-day visit. Day one: cable in, rack up, gateway and switch online, indoor APs adopted and updated, driveway-pillar Protect camera run terminated through the foundation sleeve. Day two: outdoor APs and remaining cameras, controller VLAN build (primary / IoT / guest / camera / AV), handoff binder. The upper-floor home-office speed-test now hits the actual Bell line speed instead of the mesh-bottleneck speed; the basement gym Wi-Fi is solid; the winding driveway has gate-adjacent camera coverage from an angle the doorbell could not reach; the homeowner has a single app for the network and a single app for the cameras and a real picture of which device is on which network.
The same skeleton scales to a Hills of St. Andrew half-acre-plus estate (six to eight APs, six to nine cameras, UNVR with redundant drives, UniFi Access at front and side entries, PoE injector or buried fibre to a far-gate camera on the longest driveways) or down to an Aurora Heights detached (three APs, two cameras, Cloud Key+ instead of UNVR). The principles are the same; only the hardware list and the cable count change. The same project skeleton supports a coordinated Samsung Frame TV installation in Aurora when the great-room AV wall is in scope on the same visit.
