Wi-Fi Troubleshooting & Network Optimization in Aurora

Your Bell Fibe plan speed is the speed at the fibre terminal. What reaches your devices over Wi-Fi depends on signal strength, wall material, and distance from the access point; internet plan speed and Wi-Fi speed aren't the same measurement.

In homes built with solid brick or stone, 5 GHz signals attenuate hard. A room behind two masonry walls may receive signal at -72 dBm or weaker, below the threshold for reliable throughput, no matter the plan tier. A single ISP gateway near the utility room can't serve a 3,500-plus sq ft estate at usable signal strength.

Bell Fibe also creates a common configuration problem: connect a second router behind an active Bell Home Hub without bridge mode, and double-NAT occurs, two devices assigning IP addresses at once. That cuts throughput and causes smart-home dropouts on its own, apart from signal strength.

The fix is wired Cat6 to well-positioned access points, UniFi or eero Pro with wired backhaul, placed where a site survey confirms. Dead zones in estate homes are structural problems with structural solutions.

A wireless mesh node uses wireless backhaul: it receives signal from the router or another node by radio and rebroadcasts it. Each wireless hop loses about half its available throughput, and that loss compounds through brick and stone walls. A wired access point receives a full-speed Cat6 Ethernet connection from the router and rebroadcasts at full speed regardless of wall material.

In a brick home, a wired access point delivers near-gigabit speeds at every node; a wireless mesh node through masonry may drop to 150 to 200 Mbps or lower, enough for basic browsing but unreliable for 4K streaming, Zoom calls, and multi-zone Sonos audio at the same time. Wired access points run on PoE, Power over Ethernet, so the same Cat6 cable that carries data also delivers power and no separate electrical outlet is needed at the AP location.

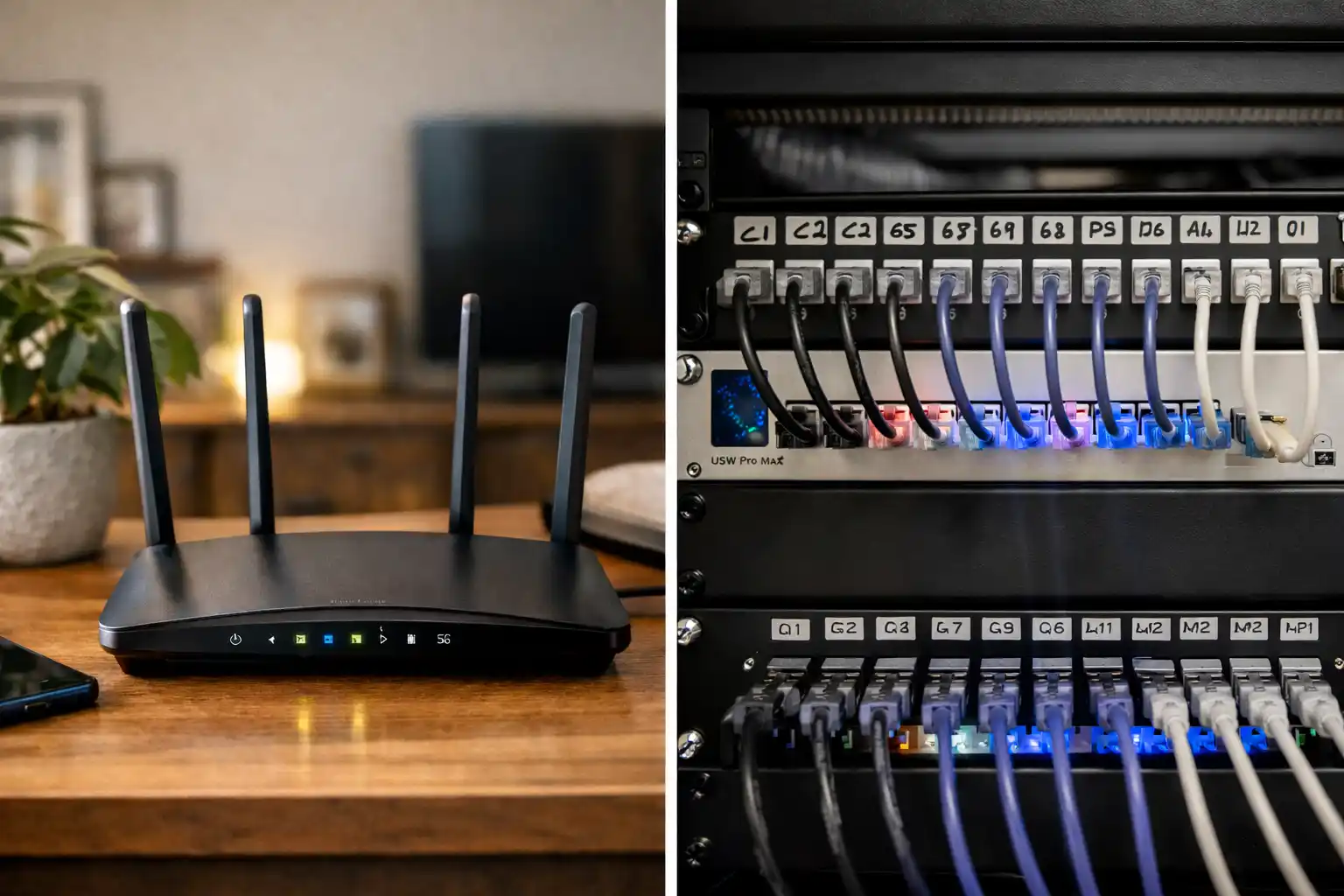

That keeps ceiling and wall mounting clean in homes with attic access. UniFi Dream Machine Pro with wired U7 Pro access points is the standard we use for estates running Control4 or complex AV systems.

eero Pro with wired backhaul is a strong alternative for Sonos-primary households. Both outperform any consumer wireless mesh kit once installed correctly with Cat6 infrastructure.

Yes. Cat6 to a dedicated access point is the only fix that holds up across rural property distances and through stone or brick exterior walls.

Wireless bridge solutions fail across those same distances and materials. The Cat6 run from the main patch panel to the secondary structure terminates at a PoE access point mounted inside the garage or workshop.

That access point broadcasts the same SSID as the main house network, so devices roam between them without reconnecting. Cable routing depends on the property. We run underground conduit for longer distances across landscaped areas and use aerial cable on a messenger wire where trenching isn't practical.

We specify outdoor-rated shielded Cat6 for exposed runs and confirm the routing method during the site survey walkthrough. The same Cat6 infrastructure that serves the garage also supports security camera installation in Aurora if needed.

Sonos uses multicast UDP packets for inter-device communication; speakers and controllers find each other on the local network through multicast, not standard unicast traffic. When a router or switch mishandles multicast, Sonos zones drop, groups fail to form, and playback stops mid-track.

Consumer routers either suppress multicast outright, so devices lose each other, or let it flood the network without control, which triggers the same symptom through congestion. Both conditions produce Sonos failures that look like Wi-Fi signal problems but are network configuration errors.

The fix has three parts: enable IGMP snooping on the network switch to control multicast scope, place Sonos devices on a correctly configured segment or dedicated VLAN that carries multicast as designed, and position a wired access point in any zone where Sonos speakers sit.

SetupTeam is a Sonos Gold Dealer providing installation and support in Aurora; Sonos configuration is part of the network installation. We commission the Wi-Fi network and Sonos multi-room setup together and verify the result under real playback before we leave.

AP count comes from a site survey, not an estimate made before measuring. Wall materials, floor plan complexity, ceiling height, device density, and any secondary structures all affect the answer in ways no one can assess without being on-site. We don't quote AP count before the survey.

Common ranges: 3,000 to 4,000 sq ft across two floors usually needs 2 to 3 wired APs for full coverage at -67 dBm or better throughout. 4,000 to 6,000 sq ft across three floors or with a complex layout usually needs 3 to 5 APs. Each detached structure adds one independent AP run.

UniFi allows precise dBm threshold tuning per access point, so roaming events trigger at the right signal level and devices hand off between APs without a noticeable break. That level of roaming control isn't available on consumer mesh systems, where roaming thresholds sit fixed at firmware defaults.

eero Pro 6E or Max 7 with wired backhaul usually needs fewer nodes than wireless mesh for the same coverage, because there's no throughput padding needed to make up for backhaul loss.

The right platform depends on the home's complexity and connected systems, not on which product wins on paper. Both UniFi and eero Pro with wired Cat6 backhaul deliver reliable, gigabit-class Wi-Fi across estate footprints when configured correctly.

UniFi (Dream Machine Pro plus U7 Pro access points) is the better fit when the home runs Control4 automation that needs VLAN and multicast precision, the network carries 50-plus devices across IoT, AV, and security, the homeowner wants full traffic visibility and QoS rule control, or the property spans multiple structures with independent network segments.

eero Pro 6E or Max 7 with wired backhaul fits better when the household is Sonos-primary without advanced automation needs, the owner wants simple management through a mobile app, and the scope is one to three floors with 2 to 4 AP positions in a single structure.

Both platforms need wired Cat6 backhaul in brick and stone properties for full performance. We set Bell Fibe bridge mode, IGMP, roaming thresholds, and QoS correctly on whichever platform you choose. Neither leaves the property at factory defaults.

Video call freezing is almost always a Wi-Fi quality problem, not an internet plan speed problem. Zoom needs about 4 Mbps sustained for 1080p HD, so throughput is rarely the constraint. What causes freezing is a break in steady, low-latency delivery.

Common causes here: signal quality below -67 dBm at the device location, such as a laptop in a home office behind masonry; roaming events between APs or mesh nodes that interrupt the connection for a second or two while the device switches; and QoS misconfiguration, where background IoT traffic competes with the video call for bandwidth.

The fix for a home office with Zoom freeze is a wired access point positioned in or next to the office, so the laptop or phone always gets -55 dBm or better where it's used. QoS rules on UniFi or eero Pro then put video call traffic ahead of background IoT polling. Once both are in place, Wi-Fi-caused Zoom freezing goes away.

A SetupTeam site survey measures everything needed to find the right fix and produce an accurate quote. It's the mandatory first step; we quote no installation before the survey is complete.

On-site measurements include signal strength in every room and zone, including outbuildings; channel utilization across 2.4 GHz and 5 GHz, identifying which channels neighbouring networks are congesting; throughput testing under real device load; roaming behaviour between existing access points or mesh nodes; and a physical inspection of wall construction, attic and basement access for cable routing, and distance to secondary structures.

The survey output is a clear diagnosis: masonry attenuation, access point placement, wireless backhaul loss, Bell Fibe gateway configuration, or a combination. The quote follows the diagnosis, not the other way around.

A professional survey differs from an ISP technician visit, which usually verifies only that the modem or gateway receives the correct signal from the provider; it doesn't assess whole-home wireless coverage, roaming performance, or network configuration past the gateway itself.

In most Village and Highlands heritage properties, yes; walls stay closed. We route Cat6 through attic space or basement service runs in most cases, entering rooms through interior partition walls, ceiling areas, or baseboard pathways. We never penetrate exterior brick.

We drill interior lath-and-plaster walls common in pre-1960 stock at stud bays rather than opening them; we pass the cable through a clean hole at the top and bottom of the stud cavity, then patch it. The finished result is a wall-mounted access point or a flush keystone plate with no visible cable.

Where attic access is limited, such as slab-on-grade sections or finished ceilings with no space above, we use surface-mounted raceway or conduit, colour-matched to the trim or wall finish. We confirm the routing method after a physical walkthrough of the property; we never specify cable routes before inspecting the space.

Yes. Bell Fibe is the dominant ISP across the area, and Bell Home Hub or Smart Hub configuration is a standard part of every SetupTeam network installation; it's included, not an add-on.

In most deployments, we place the Bell gateway in bridge mode or passthrough mode: the gateway handles fibre termination but routes nothing, and UniFi Dream Machine Pro or eero Pro takes over as router and DHCP server. That removes double-NAT, takes Bell's built-in wireless radios out of the equation, and lets us control all QoS, VLAN segmentation, and routing from one platform.

When a homeowner prefers to keep the Bell gateway active, for example to preserve Bell's TV service, we configure DMZ passthrough instead, which lets the UniFi or eero system receive a clean public IP without double-NAT interference while the Bell gateway stays operational.

We recommend gateway replacement or a full bypass only when Bell's CGNAT configuration or specific firmware limits block clean passthrough, confirmed during the site survey before we order any equipment.
