Wi-Fi Optimization in Markham
Site-survey-based network design, channel planning, whole-home mesh and wired-access-point installation, dead-zone diagnostics, and structured wiring—serving Unionville, Cornell, Berczy Village, Cathedraltown, Angus Glen, Markham Village, and the Markham Centre corridor.
What does Wi-Fi optimization in Markham actually involve?
Three pieces of work—a site survey of the home, a network design built from the survey results and the neighbourhood radio environment, and a structured installation of properly placed access points—and skipping any of the three is why most Markham Wi-Fi problems persist after the homeowner has already replaced a router or added an extender.
Wi-Fi optimization in Markham is rarely a hardware problem. The router in the box that arrived with the Rogers or Bell install is competent equipment. What it cannot account for is the building it lives in and the eighty other Wi-Fi networks competing for airtime in a typical Cornell or Berczy Village block.
A proper engagement starts with the survey. We walk the home with a heatmap tool, measure signal strength on each band at every wall and doorway, scan the neighbourhood RF environment to identify which channels are already saturated, document the construction materials we can see (plaster-over-lath in Unionville heritage homes, poured-concrete shear walls in Markham Centre condos, ordinary wood frame in newer Cathedraltown builds), and ask the household about the device load and the peak-hour usage pattern. The output is a written survey report with a coverage heatmap, a channel scan, and a recommended access-point placement plan.
The design phase is the conversation that should follow every survey but rarely does on consumer-grade installs. The decision is between a mesh system with wireless backhaul, a wired access-point system with PoE drops to a central rack, or a hybrid of the two—and the right answer is determined by the home's construction, square footage, the surrounding radio congestion, and the household's actual workload profile. Two adults on simultaneous video calls in different rooms while a teenager streams 4K is a different network than a couple working from a single home office.
The installation phase brings structured wiring and Power-over-Ethernet into play for any home that has—or will have—Cat6 runs to the right ceiling and wall locations. PoE-fed wired access points are the most reliable Wi-Fi delivery method available, which is why every new construction project in Cathedraltown or Cedar Grove should plan for them at framing rather than retrofitting after drywall closes. For our full overview of this service see the Wi-Fi optimization hub page.
Why does my Wi-Fi have dead zones in a Cornell townhouse or a Unionville heritage home?
Four causes account for almost every Wi-Fi dead zone we diagnose in Markham—and which one applies to your home is mostly a question of when the home was built and how tightly packed the surrounding neighbourhood is.
Channel Congestion (New Urbanist Density)
By far the most common service call from Cornell, Berczy Village, Wismer Commons, Greensborough, and Raymerville. Lots in these master-planned tiers are 8 to 15 metres apart, and an evening scan of the 2.4 GHz band on a typical Cornell block routinely reveals 30 to 60 visible neighbouring networks, almost all using one of three overlapping default channels. The home's own router is doing the right thing technically, but it is sharing airtime with dozens of networks within range—what the homeowner experiences as “Wi-Fi randomly slows down in the evenings.” The fix is a manual channel plan and biasing dual-band devices toward 5 GHz and 6 GHz.
Heritage Construction (Unionville & Markham Village)
Many Unionville and Markham Village homes were built between the 1850s and 1920s with plaster-over-lath interior walls, brick or stone construction, and original chimneys that act as substantial signal obstructions. Plaster-over-lath in particular is one of the worst residential materials for 5 GHz signal—the wire mesh inside the plaster reflects and attenuates Wi-Fi far more than modern drywall. A router placed on the main floor of a Main Street home cannot reach a second-floor bedroom on the other side of an interior plaster wall, no matter how powerful the radio.
Estate Sprawl (Angus Glen / Bayview Glen / Bridle Path)
Homes here run from 5,000 to over 10,000 square feet, frequently across multiple wings and finished walkouts, often with detached pool houses, coach houses, or workshops. A consumer mesh kit in the main living area cannot reach the east-wing primary suite or the third-floor home gym without wireless backhaul degrading through several intervening walls. The proper design is a wired access-point system with PoE drops to each wing—often four to eight access points across the property with channel planning that prevents the units from interfering with each other.
Poured-Concrete Attenuation (Markham Centre)
Concrete absorbs 5 GHz and 6 GHz signal far more than wood-framed drywall, which means a router placed in the open living area of a VivaNext-corridor condo cannot reliably reach a primary bedroom on the other side of a concrete bedroom wall. Mesh kits frequently fail here because the wireless backhaul between mesh nodes cannot punch through the concrete either. The fix is usually a single wall-mounted access point in a hallway or kitchen with clean line-of-sight to the rest of the unit.
Is mesh Wi-Fi or a wired access-point system the right choice?
Mesh is correct for wood-framed homes under about 2,500 square feet with a relatively quiet neighbourhood RF environment and line-of-sight between nodes. Wired access points are correct for anything larger, anything older, anything concrete, and any Cornell or Berczy block where the airtime competition makes wireless backhaul unreliable.
Mesh systems—TP-Link Deco, eero, Netgear Orbi, Linksys Velop—were engineered for a specific scenario: a wood-framed home with line-of-sight between three mesh nodes and a manageable RF environment outside. In that scenario the wireless backhaul between nodes is fast enough to act as a real network, the coverage map is even, and the cost is reasonable. We install mesh systems regularly in newer Wismer Commons and Greensborough detached homes where the fit is correct.
The mesh-is-correct scenario stops being correct the moment any of those preconditions break. A 3,500 square-foot Berczy Village home with a finished basement is at the edge of where wireless mesh backhaul can carry full bandwidth. A 5,500 square-foot Cathedraltown home or an Angus Glen estate at 7,000+ square feet is past that edge—the mesh nodes show full bars on the app but deliver a fraction of the home's gigabit at the rooms farthest from the gateway. A Cornell townhouse on a block with 50 visible neighbouring networks is a different failure mode—the wireless backhaul is fighting for airtime against the rest of the neighbourhood and loses. A Markham Centre concrete condo cannot push wireless backhaul between rooms separated by structural concrete walls.

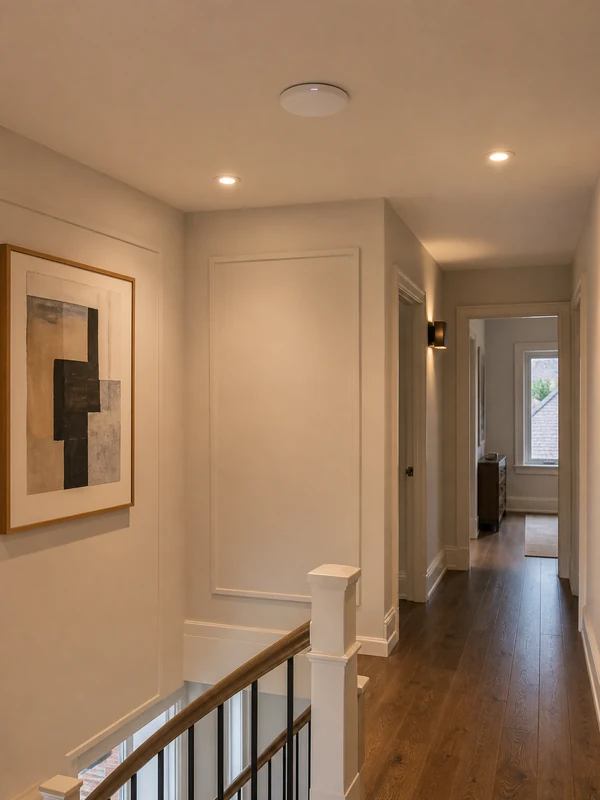

In those scenarios the right design is wired access points—typically Ubiquiti UniFi (U7 Pro for Wi-Fi 7, U6 Pro and U6 Enterprise for Wi-Fi 6 and 6E), Ruckus Unleashed, or Aruba Instant On—each one ceiling- or wall-mounted at a planned location, powered by a single Cat6 PoE drop back to a network switch in the rack. The access points coordinate channel use, hand devices off as someone walks through the house, and present as a single Wi-Fi network. Performance is consistent at every point rather than gradient.
The hybrid pattern—common in Unionville and Markham Village heritage retrofits where a homeowner does not want to disturb century-old plaster—is a wired primary access point in a central location plus mesh extensions for harder-to-reach corners or detached structures. This is a real engineering choice, not a compromise, and it works well when the central wired AP carries the bulk of the in-home traffic. Brand selection matters less than design selection.
- Ubiquiti UniFi—technically engaged Markham homeowners and homes with future expansion in mind
- Ruckus Unleashed—short-term-rental and multi-tenant residential situations
- eero Pro 6E—wired-backhaul system with a consumer-friendly app
- TP-Link Deco—budget-driven, standard wood-framed mesh scenario
- Aruba Instant On—small office / home office hybrid use cases
- Hybrid wired+mesh—Unionville / Markham Village heritage retrofits without plaster disturbance
How do Markham neighbourhoods change what a Wi-Fi install looks like?
Markham's housing stock spans five distinct tiers—heritage core, master-planned New Urbanist, luxury estate, newer luxury master-planned, and high-density concrete corridor—and each one shifts both the technical scope and the right network design.
Unionville & Markham Village
The city's oldest residential blocks, with detached homes ranging from 1820s and 1850s original structures still in use through Victorian and Edwardian-era infill. Brief is almost always a hybrid retrofit—wired primary access point in a central location, careful cable routing through basement ceilings and interior closets to avoid disturbing original plaster, and a mesh secondary or second wired AP at the far end. Some of the most rewarding projects we take on in the city.
Cornell / Berczy / Wismer
Master-planned New Urbanist tier—1990s and 2000s development at high lot density, three-storey townhomes and tightly-packed detached homes. Brief usually starts with a manual channel plan and proper band steering, often combined with a mesh upgrade or a single wired access point at the second-floor stair landing. Smaller total scope than the heritage or estate tiers but engineered just as deliberately.
Angus Glen / Bridle Path
Luxury custom-estate tier—large detached homes on generous lots, often with formal landscaping, detached pool houses or coach houses, and a Control4 or Crestron system already in place. The most complex Wi-Fi work we take on in Markham—typically four to eight access points across multiple wings, Cat6 home-runs to a central rack, outdoor-rated APs for terraces, and integration with existing smart-home infrastructure.
Cathedraltown / Cedar Grove
Newer luxury master-planned tier—2010s and 2020s development with larger floor plans, fully finished basements, and frequent pre-wire opportunities during construction. Right time to design the Wi-Fi system is during framing, when Cat6 can be pulled to every ceiling AP location at a fraction of finished-wall retrofit cost. Pre-wire engagements coordinated with the builder and interior designer.
Markham Centre / Highway 7
High-density tier—concrete-construction condos and mid-rises around the VivaNext rapid-transit spine, from established Times Group developments through the newer Verdale and Yonge-7 high-rises. One or two wall-mounted APs in line-of-sight locations, careful channel planning around dozens of neighbouring networks, often a single wired drop from the suite's network closet to the main living area.
Greensborough / Raymerville
Established suburban tier where many homeowners are running aging ISP routers with a couple of range extenders that have stopped working as the device count has grown. Most fit the consumer mesh scenario well—TP-Link Deco, eero, and UniFi mesh systems work as designed once the surrounding RF environment has been properly accounted for in the channel plan.
What does a properly designed Wi-Fi network support that a single consumer router cannot?
A current Markham household runs 40 to 100 simultaneous connected devices and several real-time workloads at once—remote work, video conferencing, 4K streaming, smart-home control, and IoT sensors—and that load profile is what justifies a designed network rather than a single gateway router.
A current household device count looks nothing like it did five years ago. A typical Cathedraltown or Angus Glen home is running two to four laptops in daily use, four to six phones, two or three TVs streaming 4K, a smart-home controller (often Control4 or Lutron), a dozen or more IoT devices (smart thermostats, smart locks, video doorbells, leak sensors, light switches), four to eight security cameras, a printer or two, multiple game consoles, and increasingly an electric vehicle charger with its own network connection. The total is often 40 to 100 devices on a single Wi-Fi network at peak.
The load is not just count. It is also the kind of traffic. Two adults on simultaneous Zoom or Teams calls from different home offices is a real-time, low-latency workload that suffers immediately if the network is saturated or the access points are poorly placed. 4K streaming in two rooms while a third household member is on a video meeting is the modern peak-hours scenario across the entire city—and Markham's WFH demographic has made this load profile common across all five housing tiers. Smart-home controllers—particularly Control4 and Lutron RadioRA bridges—need a stable, low-latency local network to keep scenes responsive. A Sonos installation and distributed audio system depends on a network that does not drop packets between zones. Security cameras stream continuously to local recorders. None of this works reliably on a consumer router with a couple of extenders.
A designed network handles this through three pieces of engineering. First, the access points are placed where the device density actually is—primary bedroom, home office, family room, kitchen, finished basement, outdoor terrace—rather than where the modem happens to be wired. Second, the network is segmented: a main household VLAN for the family's primary devices, a separate IoT VLAN that keeps the dozens of low-trust smart devices off the main network, and a guest VLAN with rate limiting that does not cannibalise bandwidth when extended family is in town. Third, the gateway and access points support modern Wi-Fi standards—Wi-Fi 6 at minimum for current devices, Wi-Fi 6E and Wi-Fi 7 for households with current-generation phones and laptops—so the bandwidth the home is paying its ISP for is actually delivered to the device that needs it.
This is also the network layer that the home theatre installation work depends on. 4K streaming, network-based AV receivers, and matrix-routed video distribution all share the same Wi-Fi and wired infrastructure as the rest of the home, and a Wi-Fi system that cannot carry the load is the bottleneck the homeowner notices first.
What happens during a Wi-Fi optimization visit?
Every project follows four phases—survey, design, installation, and verification—and the time we spend on each scales with the complexity of the home and the noise level of the surrounding neighbourhood RF environment.
Site Survey & Channel Scan

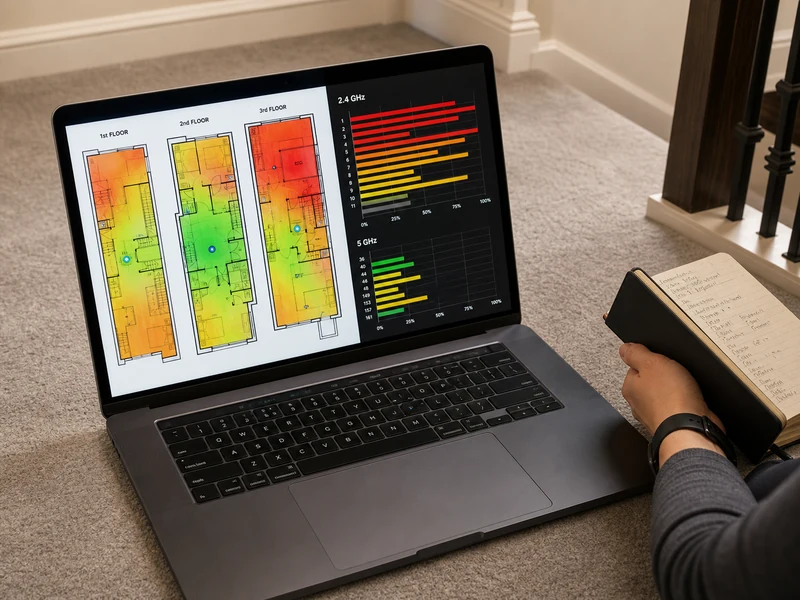

We walk the home with a Wi-Fi heatmap tool, measure signal strength on each band at every interior wall, doorway, and dead-zone candidate location, and run a parallel scan of the neighbourhood radio environment to identify how crowded each channel is on the surrounding blocks. We note construction materials behind the drywall—plaster-over-lath in Unionville, exposed brick in Markham Village, poured concrete in Markham Centre, ordinary wood frame in Wismer Commons. Output: a written survey report with coverage heatmap, channel scan, and AP placement plan.
Written Design & Proposal
Recommended AP count and brand, structured wiring required (if any), gateway and switch specification, VLAN structure for main / IoT / guest, channel plan tailored to the surrounding RF environment, and installed cost. For Cathedraltown or Cedar Grove new-construction projects, delivered before drywall closes and coordinated with the builder's low-voltage scope. For a Unionville heritage retrofit, accounts for cable-pulling routes that avoid disturbing original plaster.
Installation

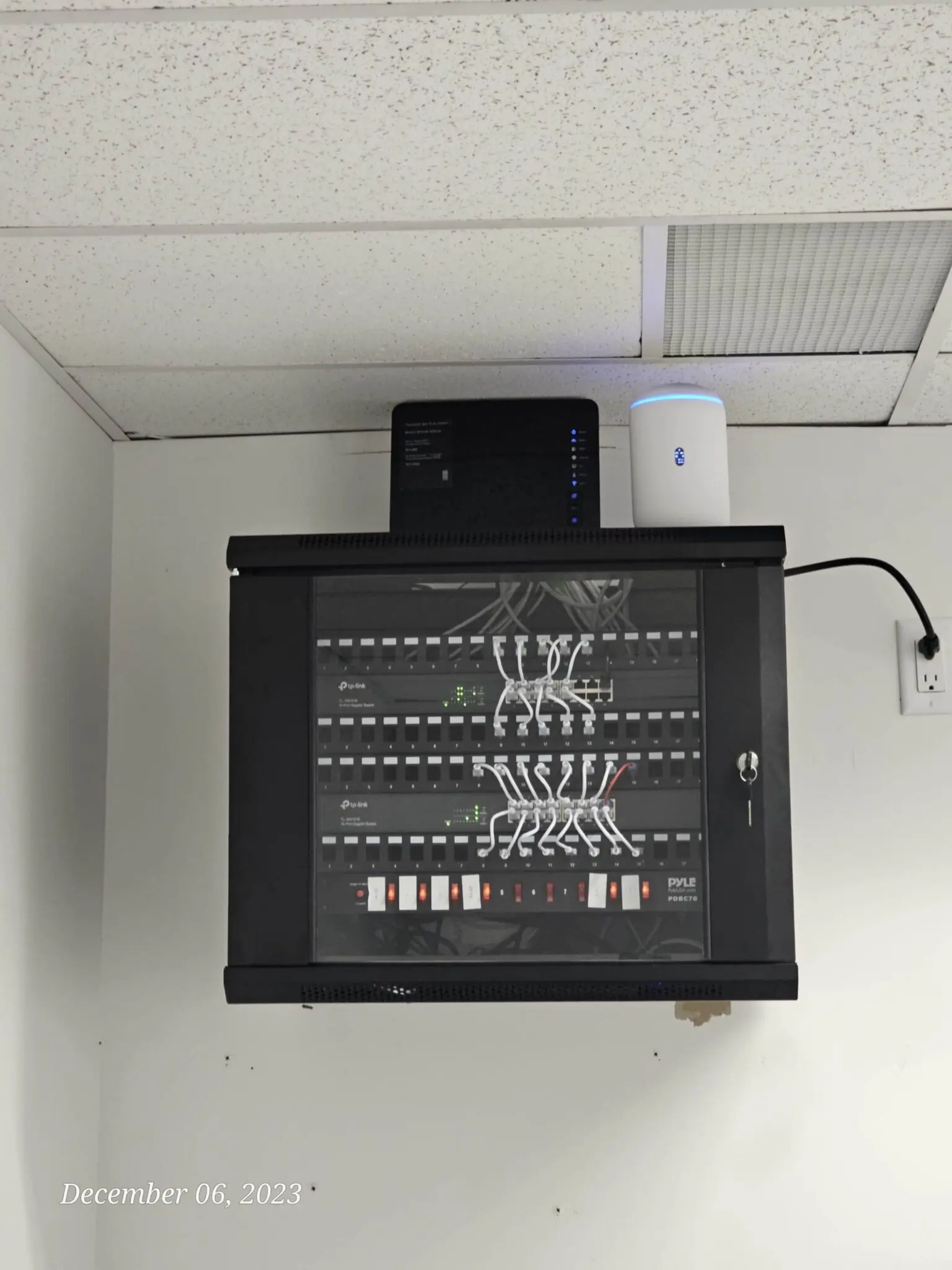

For most projects a one- to two-day engagement. Cat6 runs pulled to each AP location (or existing in-wall cable verified and terminated), gateway and PoE switch mounted in the network rack, each access point ceiling- or wall-mounted and connected, network configured: SSIDs, VLANs, channel plans, firmware updates, and integration with smart-home controllers. For network installation and structured wiring at the same time, the wiring scope is folded into the Wi-Fi engagement to avoid duplicate visits.
Verification & Handoff
Second heatmap survey after installation confirms coverage matches the design. Bandwidth tested at every access point under load. Documentation handed off: network diagram, device list, VLAN structure, SSIDs and passwords, management portal access for ongoing remote support. For Ubiquiti UniFi installs, the system is enrolled in remote management so many future adjustments can be handled without an on-site visit.
How much does professional Wi-Fi installation cost in Markham?
Wi-Fi installation cost reflects the size of the home and the cable-pulling scope—from a focused mesh install in a Cornell townhouse through a wired access-point system in an Angus Glen estate to a pre-wire engagement during a Cathedraltown new build.
Every project is quoted after the on-site survey rather than from a standard package, because the cable-pulling scope and the surrounding RF complexity are the two variables that determine total cost.
Cornell / Berczy / Wismer Mesh
$900–$2,400 installed. Supply, configure, and install a TP-Link Deco, eero, or UniFi mesh system with channel planning calibrated to the neighbourhood's RF congestion. No in-wall cabling, clean handoff, one-visit job. The home needs to fit the consumer-mesh scenario for this to be the right recommendation.
Unionville / Markham Village Heritage
$3,800–$9,500 installed. Careful cable routing through basement ceilings and interior closets, one or two wired access points on the affected levels, gateway and switch installation. Variable is entirely the cable-pulling scope—accessible basement ceiling and finished attic sit at the low end; fishing cable through plaster walls between floors sits at the high end and includes any patching required.
Cathedraltown / Cedar Grove Wired
$5,000–$12,000 installed. Three to five PoE access points across the levels, structured Cat6 cabling to each location, gateway and managed switch installation, and VLAN configuration. Larger floor plans and finished basements typically place these projects in the mid-to-upper end of the range.
Angus Glen / Bridle Path Estate
From $12,000. Four to eight access points across multiple wings, possibly including outdoor-rated units for a terrace or pool area, a full network rack, and integration with existing Control4 or Lutron infrastructure. Large multi-wing properties with detached pool houses or coach houses are priced individually following the on-site survey.
Markham Centre Condo
$1,400–$3,500 installed. One or two wall-mounted access points, careful line-of-sight planning around concrete walls, channel planning calibrated to the surrounding high-density RF environment, and a single Cat6 drop from the suite's network closet to the living area. Lower cost than a detached home because the floor area is smaller, but similar engineering effort.
Cathedraltown / Cedar Grove Pre-Wire
$6,500–$19,000 depending on scope. Cat6 runs to four to eight planned AP locations during framing, full rack room layout, gateway and switch supply, full programming once drywall closes. Pre-wiring during framing is dramatically cheaper than retrofitting cable through finished walls and produces a better technical result.
All pricing is presented after the on-site survey before any work begins. Hardware costs and labour are itemised separately so you can see exactly what each component is.
Three Access Points. A 127-Year-Old Home. No Plaster Touched.
A late-Victorian detached home built in 1898 and updated in 2004, approximately 3,400 square feet across two and a half above-grade levels plus a finished basement—original plaster-over-lath interior walls throughout the main and second floors, brick exterior, single original chimney centred in the floorplan. Three dead zones: the third-floor finished attic (homeowner's office), the second-floor primary bedroom on the far side of the original chimney, and the basement family room on the same side of the chimney structure.
A neighbourhood channel scan turned up 47 visible nearby networks within range, 38 of them on overlapping 2.4 GHz channels. The previous installer had added a chain of two wireless extenders to an ISP gateway router. Total diagnostic time to identify the original interior chimney as the cause of the second-floor bedroom dead zone: about twenty minutes. A 5 GHz signal cannot pass through a brick chimney structure, and the previous installer had positioned the router on the wrong side of it—reaching the home's east half competently and not reaching the west half at all.
We replaced the gateway with a UniFi Cloud Gateway Ultra and an 8-port PoE switch in the basement utility room, and installed three wired access points: one UniFi U7 Pro at the main-floor central hallway ceiling, one U6 Pro at the second-floor stair landing on the bedroom side of the chimney, and one U6 Pro in the finished third-floor attic office. Cat6 runs hand-pulled through the basement ceiling and up through an existing interior closet stack—no disturbance to original plaster, no patching required. Three-VLAN structure (main household, IoT, guest), custom channel plan biasing primary devices to the cleanest 5 GHz and 6 GHz channels. The third-floor office had been operating at 20 Mbps for two years; the post-install survey now reads 600+ Mbps at every measurement point.
“Our three-storey townhouse had unusable Wi-Fi after about 7pm every night—every neighbour on the block was on the same channels. SetupTeam ran a survey, did a manual channel plan, and installed a single wired access point at the second-floor landing. Evening speeds went from 25 Mbps to 480 Mbps on the same internet plan. No new hardware on the main router. Just done right.”
“Our home is from 1898 with original plaster walls and a centre chimney that apparently blocks Wi-Fi entirely. SetupTeam found the chimney was the issue in twenty minutes—every previous installer had told us we needed more equipment. They put three access points in carefully routed locations and now the third-floor office actually works. Nothing was patched or painted; the plaster wasn't touched.”
“Six thousand square feet, two wings, a pool house, a coach house, and the previous installer kept adding extenders. SetupTeam designed a real wired access-point system—five interior APs, one outdoor under the pool-house soffit—and tied it into our existing Control4. The home runs as one network now instead of four overlapping bubbles. Best technical work we've had in this house.”
Planning a Markham Wi-Fi project?
Cornell channel congestion, Unionville heritage retrofit, Angus Glen estate, Markham Centre concrete condo, or a Cathedraltown pre-wire—tell us the property and what's failing. We'll respond with a clear estimate after the site survey.
Unionville · Markham Village · Cornell · Berczy · Wismer · Cathedraltown · Cedar Grove · Angus Glen · Bridle Path · Markham Centre Contact UsWi-Fi Optimization in Markham
