Network Installation Through Finished Etobicoke Walls
Cat6 and Cat6a pulled through walls that are already closed, in-wall speaker wire for the rooms you want sound in, a labelled patch panel, a managed PoE switch, and a clean handoff to your ISP. Humber Bay condo suites, Kingsway houses, Mimico bungalows.
What network problems do most Etobicoke homeowners call us to fix?
Most of these jobs start with one sentence from the homeowner: the Wi-Fi is slow in the Humber Bay living room, the Sonos zone drops whenever the Bell Pure Fibre router reboots, the wired desk jack in the Kingsway home office tops out at 100 Mbps, or the basement camera in Markland Wood buffers once the house gets busy. All four trace back to the same wired layer, and in all four the walls are already closed and painted.
Humber Bay Shores and Mystic Pointe suites produce the south-wall coverage gap. The window wall facing the lake is glass and aluminium, the demising walls are poured concrete, and the in-suite ISP router sits in the utility closet by the front door, about as far from the living-room sofa as the floor plan allows. The signal that survives the trip handles email and stalls on 4K. The fix is one Cat6a drop along a baseboard raceway to a wall-mount access point beside the sofa.
The Kingsway, Edenbridge-Humber Valley and the older streets of Sunnylea produce the dead-room call. The house dates from 1928, 1948 or 1958, the walls are lath-and-plaster or early gypsum, the Bell Pure Fibre GigaHub sits in the basement utility room three floors below the children’s bedrooms, and two extenders have already failed. We run a labelled Cat6a backbone from a small 12U wall-mount rack up to two or three ceiling access points, plus the wired desk jacks the homeowner wanted in the first place.
Renovators and property managers call for the same reasons, one step earlier. In a lakefront tower the building wants a certificate of insurance and WSIB clearance on file and the service elevator booked before anyone carries a spool through the loading dock, so we send that paperwork with the quote rather than on the morning of the pull. On the low-rise side a kitchen renovation or a basement finish opens two or three walls instead of the whole house, and the general contractor needs a low-voltage trade willing to take the drops inside that opening and fish the rest through finished walls on the same visit. A ground-up build with the frame still open is a different job, quoted and sequenced as new construction pre-wiring.
What is included when the walls are already finished?
The work covers everything between the ISP demarc and the wall plate in each room you want connected: Cat6 or Cat6a in continuous home-runs, a labelled 24- or 48-port patch panel, a managed PoE switch, an edge firewall, and Fluke DSX-8000 certification on the finished drops. In-wall speaker wire and the rest of the low-voltage scope go in on the same pull.
Cable runs are Cat6 by default and Cat6a where speed, distance or a longer horizon calls for it. U/UTP unshielded suits most finished-home conditions. F/UTP foil-screened goes in where interference matters, including drops running parallel to high-voltage feeds and drops on the west side near Pearson and Highway 427. Each cable is pulled in one continuous run from the wall plate to the rack, with no in-wall splices.

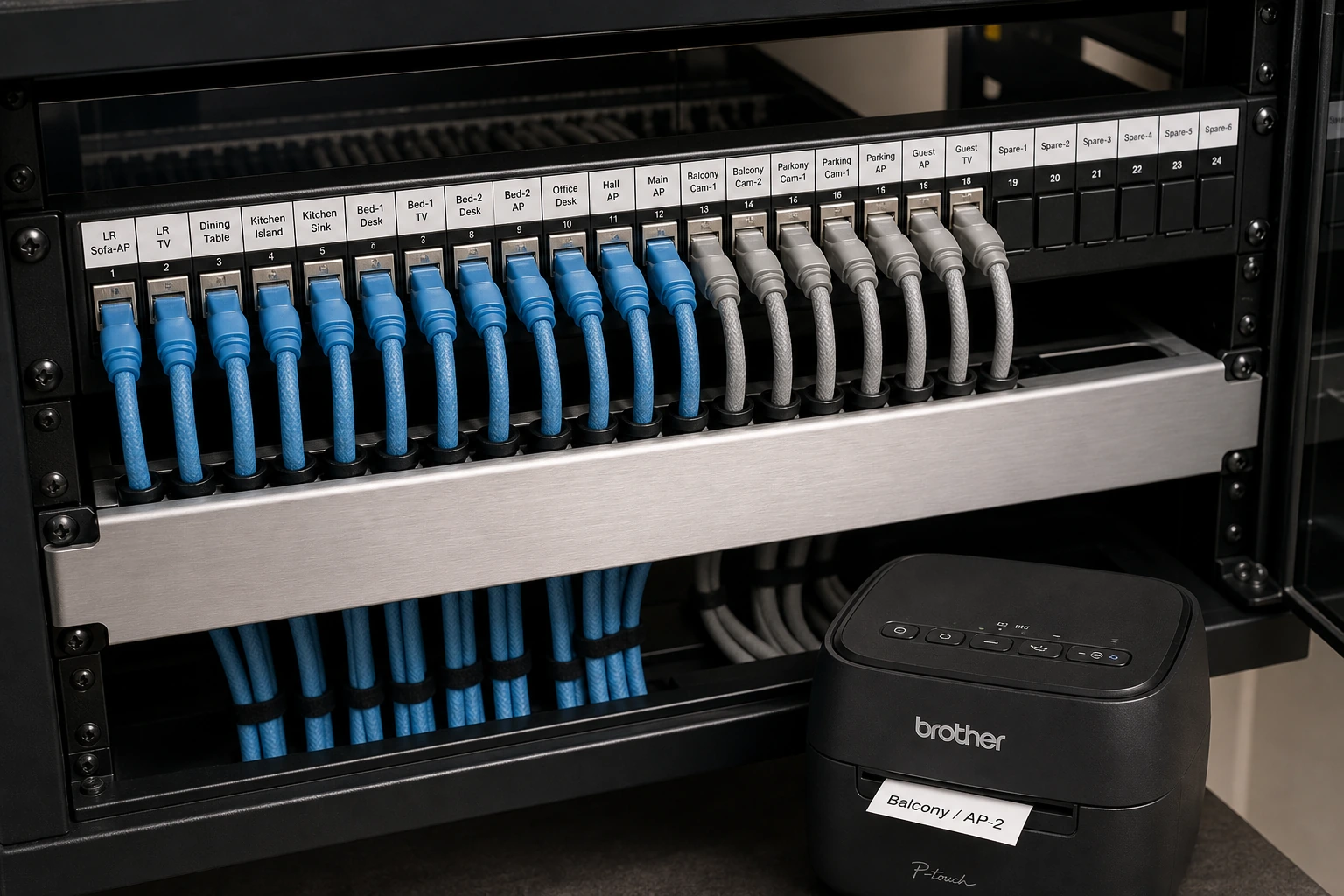

At the rack end each cable lands on a 24- or 48-port keystone or punch-down patch panel, labelled at both ends with a Brother PT-E printer. The patch panel feeds a managed PoE switch: a Ubiquiti UniFi USW Pro Max 24 PoE, a UniFi USW Lite 16 PoE at condo scale, a TP-Link Omada SG2428P, or an HPE Networking Instant On 1960, chosen on power budget and the gear you already own. PoE+ powers access points and indoor cameras. PoE++ powers outdoor cameras and high-end APs at distance. An edge router or firewall, a UDM-Pro, a Firewalla Gold Plus or a Fortinet 40F on the larger Kingsway and Edenbridge houses, handles VLAN segmentation and the handoff to your ONT, GigaHub or cable modem.
At the room end each drop finishes in a flush keystone wall plate, white or brushed aluminium to match the existing electrical trim. Wherever you want coverage we mount a ceiling UniFi U7 Pro or Aruba 615 access point on its own dedicated drop. Speaker wire travels the same joist bays and closet stacks on the same visit and finishes at a speaker plate beside the network keystone. Pair the backbone with UniFi installation in Etobicoke for one vendor across switch, router, access points and cameras.
Where should the rack live in a lakefront suite or a Kingsway basement?
The rack location decides the longest cable run, the ventilation budget, the noise the family hears, and the route each other cable follows. Here the building type decides more than the floor plan does: a Humber Bay utility closet, a Kingsway basement mechanical room, a Sunnylea laundry-and-furnace room, or a Markland Wood rec-room storage cabinet.

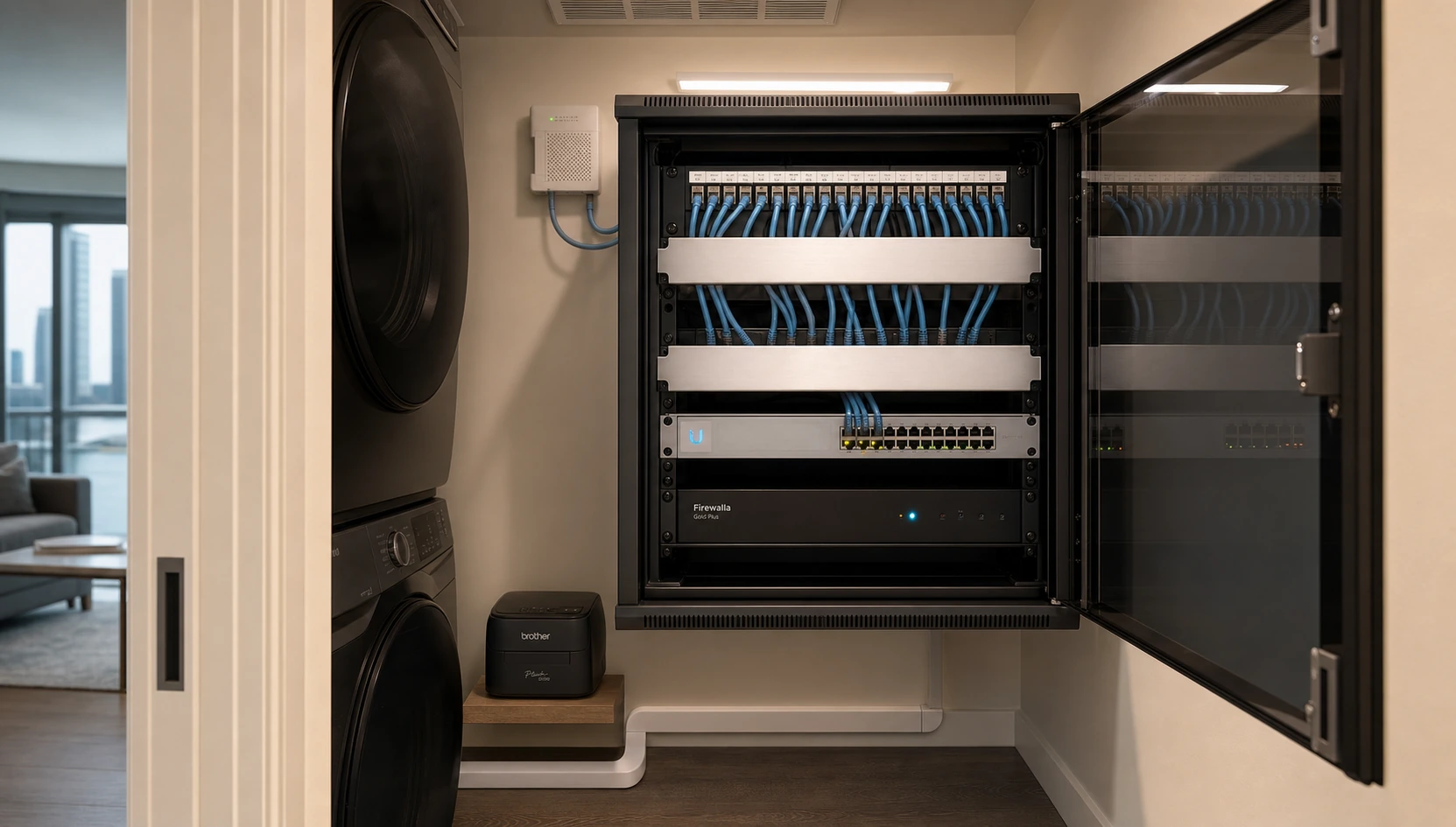

In a Humber Bay Shores or Mystic Pointe condo the rack lives inside the unit, almost always in the utility closet that already houses the laundry stack, the HVAC return, and the in-suite electrical panel. A 9U or 12U wall-mount enclosure with a passive vent grille is the typical install. The Beanfield ONT, the Bell GigaHub, or the Rogers Ignite modem mounts to the wall inside the same closet, with a short Cat6 patch lead handing off to the edge router and from there to the patch panel. Floor-to-ceiling glass and poured-concrete demising walls leave no in-wall option, so each cable in the suite runs from this closet outward through the baseboard raceway.
In a Kingsway Tudor or an Edenbridge-Humber Valley house the rack usually lands in the basement mechanical room, where the gas line, the water main and the original 200-amp panel already converge. An 18U or 24U wall-mount enclosure handles the drop count cleanly. On the 1928 to 1938 streets the original BX cabling routes through chase columns and closet stacks, and those same pathways carry the new Cat6a and the speaker wire that goes with it.
In a Sunnylea, Stonegate, or 1950s Mimico bungalow the rack lives in the laundry room or the unfinished section of the basement. A 12U wall-mount enclosure on the wall closest to the centre of the house keeps the aggregate cable run short. In a Markland Wood or Princess Anne Manor split-level the rack often lands in a basement storage cabinet fitted with a vented door, family room within earshot, fan noise handled by a low-rpm cabinet fan.

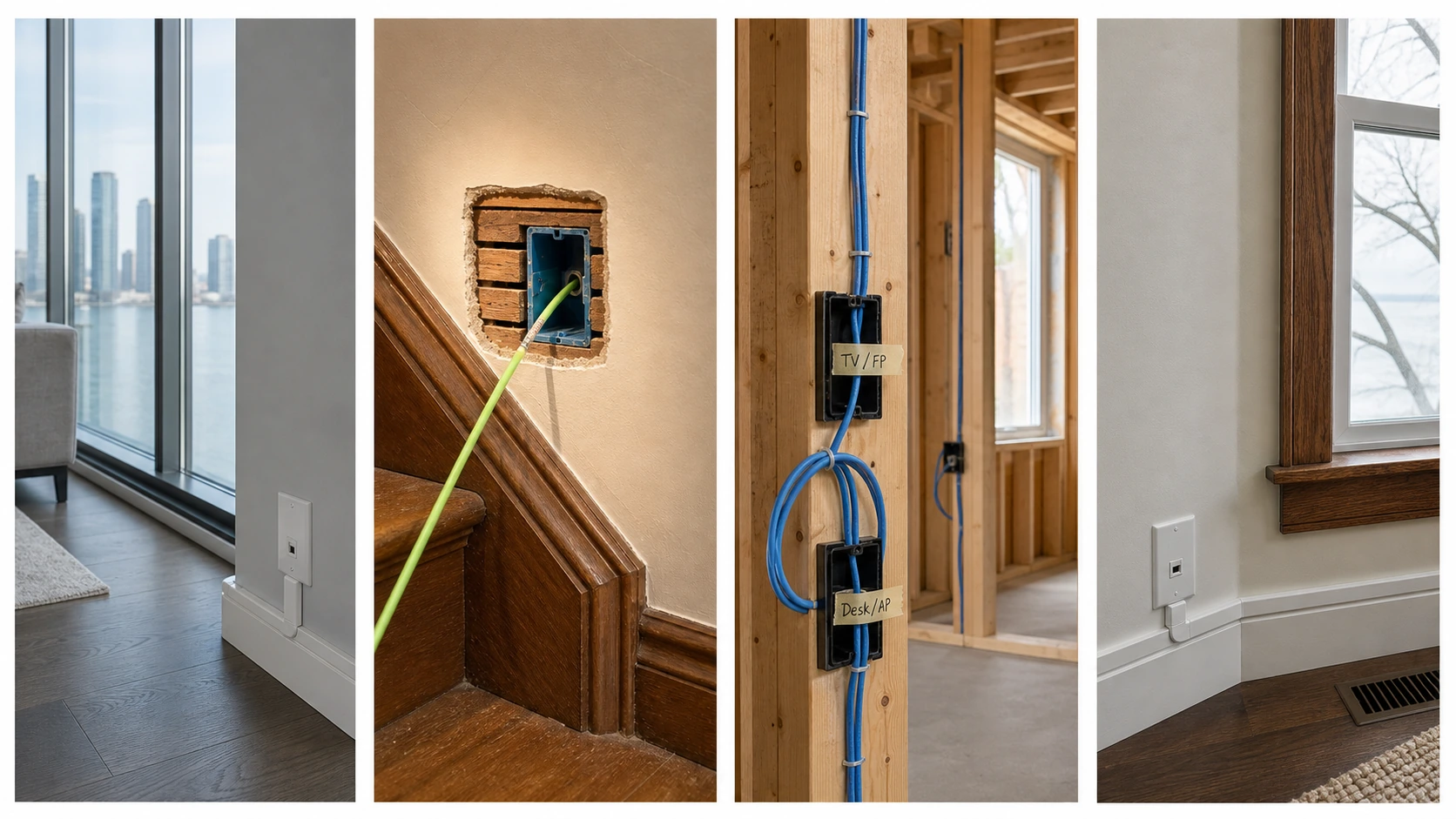

How does network cabling change between Humber Bay condos, Kingsway heritage homes, Sunnylea ranches, and Long Branch bungalows?
The west end splits into four installation environments that change how cable reaches the wall plate. The cable itself stays the same. The routing, the wall-plate finish, the rack size and the day count all shift.
Humber Bay Shores, the Park Lawn corridor and the Lake Shore Boulevard West towers, meaning Lago, Eau du Soleil, Empire Phoenix, Park Avenue Place, Mystic Pointe and the rest of the post-2010 lakefront stack, share three constraints. The demising walls are poured concrete and cannot be chased without engineered approval that no condo board will grant, and the window walls are glass-and-aluminium curtain wall with no usable in-wall cavity. Concrete slab ceilings rule out any in-ceiling run. A slim painted PVC raceway along the wall-floor junction, colour-matched to the baseboard, carries the data and speaker runs together from the in-suite utility closet to a flush plate at each drop location. Instead of ceiling access points we mount in-wall UniFi U6 In-Wall units on the existing electrical box.
The Kingsway, Edenbridge-Humber Valley, Princess-Rosethorn, and the heritage pockets of Stonegate share a different constraint. The houses are 1920s and 1930s brick Tudor, English Cotswold, and centre-hall colonial, with lath-and-plaster interior walls below the second-floor landing and gypsum-board over original plaster on later renovations. A new Cat6a drop is fished with a fibreglass glow rod and a Klein fish-tape combination, one wall bay at a time, through existing closet stacks, chase columns and basement-to-attic pathways. The same route carries in-wall speaker wire where a room wants it, and both finish behind flush plates.
Sunnylea, Stonegate-Queensway, Markland Wood, and Princess Anne Manor mid-century ranches have wood-stud drywall ceilings with standard 16-inch on-centre joist spacing; cable fishes cleanly through joist bays and finished basement ceilings. Mimico, New Toronto, and Long Branch 1920s-1950s detached homes have small floor plates and finished basements with low headroom; we keep runs short and pair the network with home theatre installation in Etobicoke when a media room is part of the same scope.

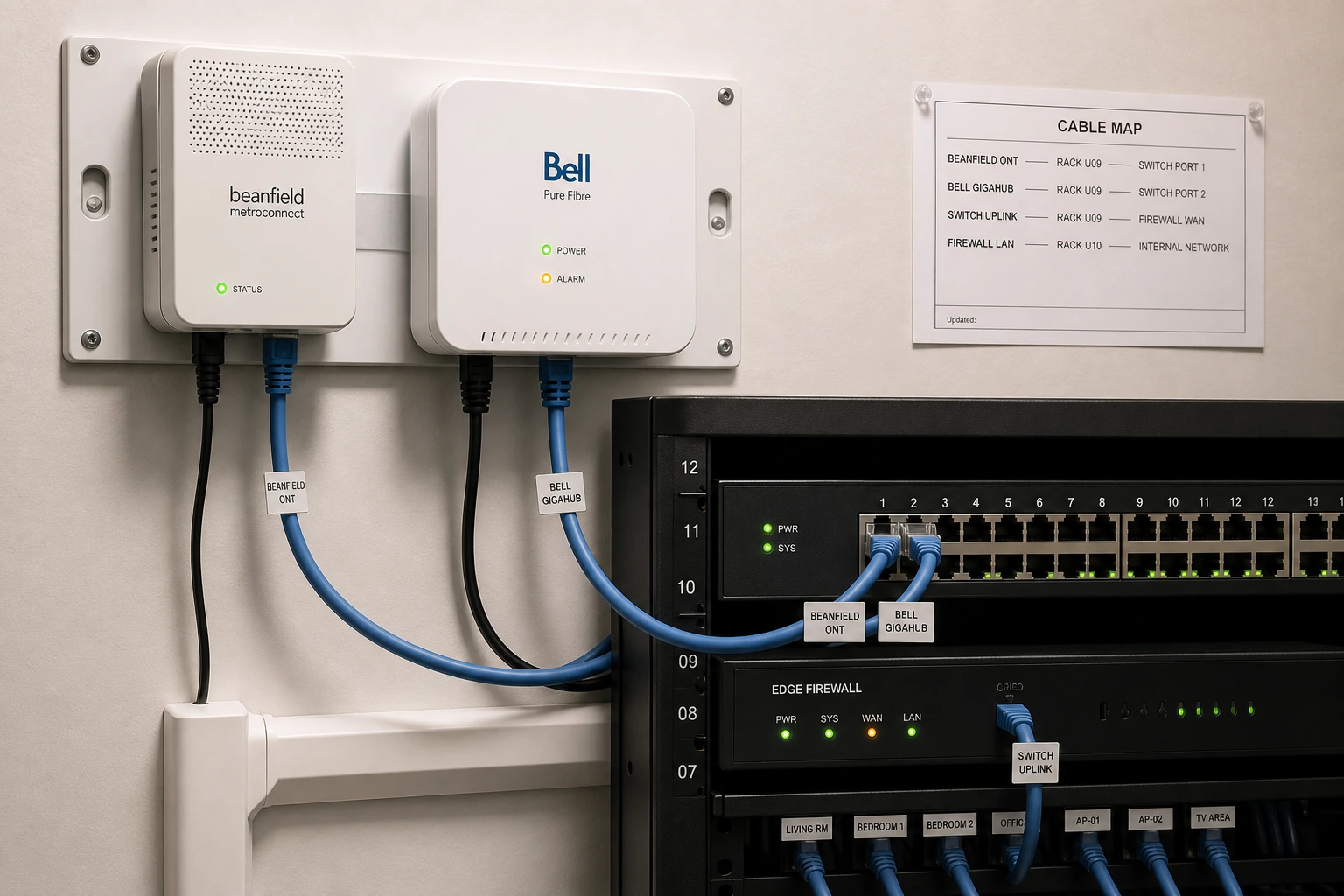

Which fibre carrier reaches your Etobicoke address, and where is the demarc?
Three carriers cover the area. Beanfield Metroconnect is the lakefront option, pulled to most post-2010 Humber Bay Shores towers including Lago, Eau du Soleil (Sky and Sail), Empire Phoenix, the Park Lawn cluster and Mystic Pointe. Bell Pure Fibre dominates the low-rise west: Sunnylea, Stonegate-Queensway, The Kingsway, Edenbridge-Humber Valley, Markland Wood, Centennial Park and most low-rise streets. Rogers Ignite is the third option everywhere and the default at older Mimico, New Toronto and Long Branch addresses.
The demarc location varies by carrier and by building. The Beanfield ONT in a Humber Bay Shores or Lake Shore Boulevard West suite is almost always inside the unit utility closet, mounted to a small backboard alongside the laundry and HVAC equipment. The Bell Pure Fibre GigaHub in a Sunnylea bungalow or a Kingsway Tudor mounts inside the exterior wall closest to the street pedestal, usually a basement utility room wall. The Rogers Ignite cable demarc in a Mimico bungalow or a Long Branch detached sits behind the original coax outlet in the front-room closet, the living-room corner or the basement laundry.
The first job on any site visit is to find the demarc, photograph the wall composition between it and the rack location, and walk each drop route. The cable map then shows the demarc handoff, the rack location and each wall-plate position, and you approve it in writing before the pull starts. We do not assume the carrier. Beanfield changes building by building and Bell Pure Fibre changes street by street, so we read the active service at the demarc on site.
Does Pearson Airport or Highway 427 affect home network installation in Etobicoke?
Pearson and the Highway 427 corridor are real ambient RF factors on the west side of Etobicoke, and their effect on a residential Cat6 install is small and bounded. They change one decision: shielded or unshielded cable on a handful of specific drops.
Pearson International Airport sits immediately northwest of these streets. NAV CANADA primary surveillance radar and L-band air-traffic comms operate from sites on and around the field. The western neighbourhoods, Rexdale, West Humber-Clairville, Eringate, the West Mall streets and the houses backing onto Highway 427, sit inside the radar approach geometry and the cell-tower density that comes with airport-adjacent infrastructure. Highway 427 north to south and the Gardiner and QEW east to west add high-voltage roadside distribution and dense cellular along the corridor.
A standard residential Cat6 U/UTP run inside a finished interior wall is well within the cable’s noise margin in this environment. Cat6a U/UTP has a wider noise margin again. The drops where the RF picture starts to matter run parallel to a line-voltage feed for more than a metre. On those, and on outdoor drops crossing a soffit close to the 427 sound wall, we specify F/UTP foil-screened cable and bond the shield drain at the rack. The cost difference per metre is small. On a typical Eringate or West Mall job we shield one or two drops out of twenty.
What happens on site, from the first walkthrough to the final test?
Each install follows the same sequence: site visit, cable map sign-off, the pull, the terminations, Fluke DSX-8000 certification, and the handoff binder. A six-drop Mimico retrofit and a twenty-drop Kingsway house run the same order, and only the day count changes.
Site Visit
Walk the home or condo. Identify the demarc and rack location. Photograph every wall composition. Produce a printed cable map and a written line-itemised quote within 48 hours.
Cable Map Sign-Off
Drop number, room, cable type (Cat6 vs Cat6a / U/UTP vs F/UTP), route, wall-plate position and planned patch-panel termination, approved in writing by the homeowner, the GC or the designer.
The Pull
Houses: glow-rod fish through finished walls, one drop at a time, speaker wire on the same route. Suites: baseboard PVC raceway from the utility closet to each plate. Where a renovation has a wall open, those drops go in first.
Terminations
Patch panel punched and labelled at both ends with a Brother PT-E printer. Keystone wall plates flush-mounted. Equipment racked: switch, firewall, ISP handoff, access points configured.
Fluke DSX-8000 Certification
Every drop tested for length, insertion loss, NEXT, PSNEXT, ACR-F, and return loss against the Cat6 or Cat6a spec. Certification PDF delivered to the homeowner.
Handoff Binder
Cable map, port-to-room key, ISP credentials, switch and firewall configuration, AP placement, and a direct line for support afterwards, alongside Wi-Fi optimization in Etobicoke.
What does a retrofit backbone cost in a condo versus a heritage house?
Retrofit drops in a finished home run $200 to $500 per drop. The number moves with the wall composition, the route the cable has to take and the length of the run, so a Humber Bay Shores condo backbone prices differently from a Kingsway heritage retrofit, which prices differently again from a Markland Wood mid-century house. Where a renovation already has the wall open, drops start at $129. Each quote is line-itemised after the site visit.
8–14 drops, 9U/12U in-suite rack, 16-port managed PoE switch, edge firewall, one or two in-wall APs. Baseboard PVC raceway routing.
12–20 drops fished through lath-and-plaster. 18U basement rack, 24-port managed PoE switch, edge firewall, 2–4 ceiling APs. Plaster fishing adds labour on each drop it applies to.
10–18 drops fished through joist bays and finished basement ceilings. 12U rack, 24-port managed PoE switch. Where a renovation already has that section open, those drops start at $129 and go in first, before the fished runs.
6–12 drops in a small finished basement. 9U or 12U rack in a basement utility nook, 16-port managed PoE switch, edge firewall, one ceiling AP.
All four scopes include Fluke DSX-8000 certification on the drops and a handoff binder with the cable map and port-to-room key. We quote exterior work separately: retrofitting cable and running wire in from outside the house for a security camera starts at $300. Heritage wall-plate trim variants, carrier ONT relocation where the existing demarc sits somewhere awkward, in-wall speaker wire and drywall repair on fished runs each go on the quote as their own line when they apply.
There is no travel premium inside Etobicoke. Mimico to Markland Wood is the same rate as Humber Bay Shores to The Kingsway.

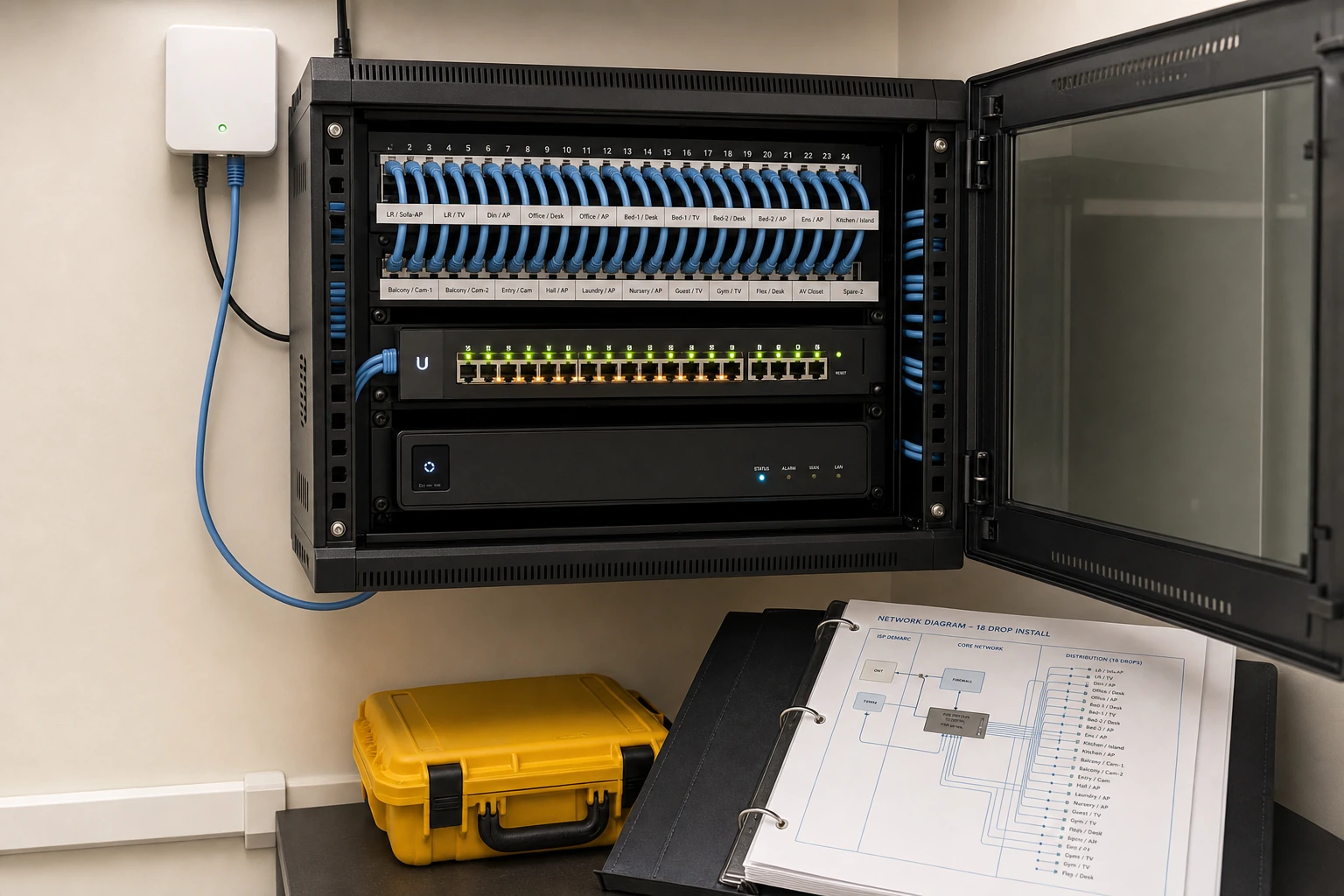

What does an 18-drop Humber Bay Shores suite look like in practice?
A window-wall two-bedroom suite here takes an 18-drop in-suite backbone, a 9U or 12U wall-mount rack inside the utility closet, and a baseboard PVC raceway that hides the cable behind a colour-matched line at the wall-floor junction.
The cable map for a representative Humber Bay Shores or Park Lawn corridor two-bedroom suite typically calls for 18 drops. Two Cat6a drops sit behind each bedroom desk position and three go to the living-room TV wall. The home-office desk position takes two more, and another two reach the kitchen island and the breakfast nook for streaming kit and a smart-home hub. Two Cat6a drops feed in-wall UniFi U6 access points, one beside the living-room sofa and one at the primary bedroom centre wall, because the slab ceiling rules out ceiling mounts. Two more go to the balcony soffit positions for a future outdoor camera and weather-sealed AP, and three spare Cat6a runs follow the baseboard route to likely future locations.
The install proceeds on a one-to-two day timeline. Day one is the baseboard raceway run, the rack mount, the patch panel termination, and the wall-plate keystones at every drop position. Day two covers the active equipment: the Ubiquiti USW Lite 16 PoE switch, the Firewalla Gold Plus or UDM-Pro edge firewall, the in-wall and balcony access points, and the VLAN policy where the homeowner wants trusted home, cameras and guest kept apart. We verify the Beanfield handoff, then Fluke DSX-8000 certify each drop. Where a suite also wants in-ceiling audio, the speaker wire shares the same raceway on the same visit. See Sonos installation in Etobicoke.
Wiring an Etobicoke address?
Tell us the building or the street and what you want connected. We book a site visit and put a printed cable map and a line-itemised quote in your hands inside 48 hours.
