Network Installation and Long Cable Runs in King City
Cat6A fished into rooms that were finished without a wall plate, speaker wire added to closed ceilings, access points wired where the coverage drops, and conduit out to the coach house or garage. Estate and rural-residential properties across King Township, with the drywall already up.
How do you add Ethernet drops to a finished King City home without opening every wall?
We fish it through the pathways the house already has. Closet stacks, the chase beside a plumbing riser, an unfinished basement ceiling, attic space above the top floor, and the void behind a baseboard will all carry Cat6A without cutting into the middle of a finished wall. Access holes land where trim or a patch hides them, and you see every one marked before a blade touches it.
On a large lot the run length is the constraint that shows up first. From a rack in the middle of a house this size, a drop at the far bedroom, the loft over the garage, or a camera at the gate can pass sixty or seventy metres once the cable has gone down a riser, along a joist bay and back up again. We measure the route the cable takes, not the distance across the floor plan, before choosing what to pull.
What a retrofit on a large property usually covers
Most of what an owner here asks for is still possible once the drywall is closed. These are the runs we pull most often through a house that is finished and lived in.
- Cat6A home runs measured along the fished route, not the straight line
- New drops in rooms that were built with nothing behind the wall
- Conduit out to a coach house, barn, or detached garage
- PoE camera runs to the gate, the driveway approach, and outbuilding corners
- In-wall and in-ceiling speaker cable pulled into finished rooms
- Ceiling access point drops cut into existing drywall and patched
- Termination into a rack in the mechanical room or an existing closet
- Fibre between buildings where copper cannot carry the distance
Data Drops in Finished Rooms
Cat6A pulled to a room that has never had a wall plate. We open one small access point, fish the cable to the nearest usable cavity, and terminate the run on a flush keystone plate. The repair afterwards is drywall and paint.
Wi-Fi That Reaches the Far End
Access points mounted where the coverage gap sits, each on its own wired run back to the rack. A ceiling drop at the far end of a long house does more than a mesh node repeating from the middle. Detached buildings get a cable rather than a wireless hop.
In-Wall Speaker Wire After the Fact
16/2 and 14/2 fished into finished ceilings and walls for indoor zones, plus outdoor-rated cable to the patio, pool deck, and cabana. The speaker cut-out doubles as the access hole, so audio and data usually happen on the same visit.
Gate and Driveway Camera Runs
PoE cable to the gate post, the driveway approach, and the corners of outbuildings, all landing on one recorder in the main rack. On a long approach the run leaves through a rim joist and picks up conduit at grade instead of crossing open ground.
Getting Cable to a Second Building
Direct-buried or above-grade conduit sized to carry data, speaker wire, and camera cable in one pathway. Where the distance past the house is too far for copper, fibre goes in the same conduit with a media converter at each end.
Wiring an Existing House for Control
Keypad boxes, control runs, and network drops added to a house that is already lived in, matched to what Control4 smart home and Lutron lighting need. Fishing to a keypad in a finished wall is slow work, so the locations get agreed before anything is cut.
Why does distance change the switch, the rack, and the access point plan?
Because every extra metre costs signal and power. Copper stops at ninety metres, PoE voltage sags on a long run out to a gate camera, and a far-corner access point sharing a wireless hop with the middle of the house loses most of its throughput. Sizing the rack on a property like this starts with measuring the longest run, then working back to the switch, the power budget, and where each access point has to sit.
Managed PoE With Real Headroom

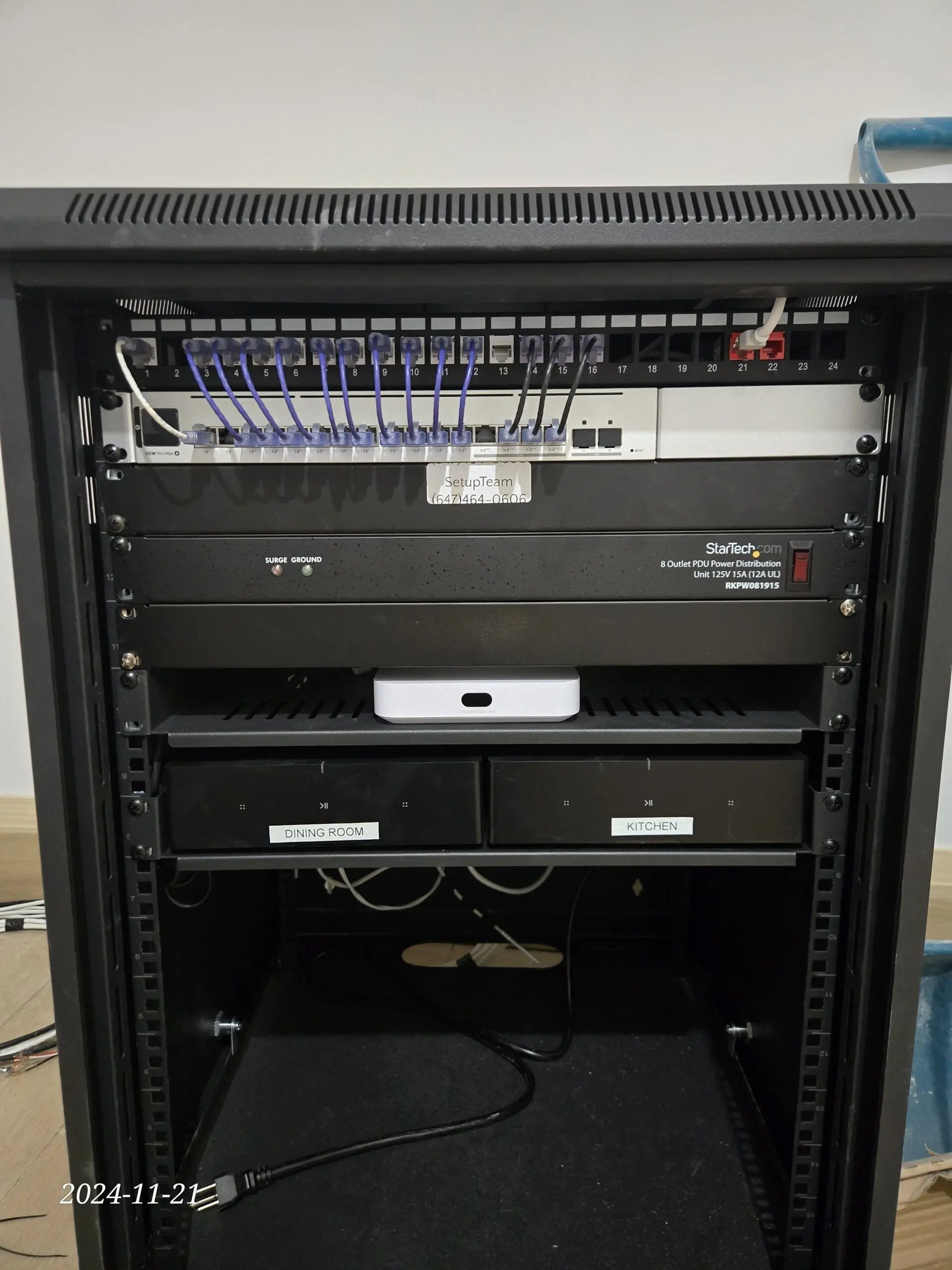

Every fished run lands on a patch panel feeding a managed PoE switch. We add up the wattage the cameras, access points, and doorbell draw, then size the budget above it so the next camera does not starve the ones already on the switch.
Access Point Placement in an Occupied House
We walk the house with the furniture in it, find where the signal dies, and plan the drop to that ceiling. Each access point gets its own cable. Gateway, switching, and controller detail sits on the UniFi installation in King City page.
Cameras Added to a House Already Standing
Gate, driveway, and outbuilding positions each get a dedicated run back to the rack. We seal the exterior penetrations, sleeve the cable where it leaves the building, and put the recorder with the rest of the equipment instead of in a closet nobody can reach.
Keeping the Automation Traffic Apart
Controllers, lighting, cameras, and guest devices each sit on their own VLAN. A house carrying dozens of connected devices stays predictable, and a camera uploading footage does not slow down a video call two floors up.

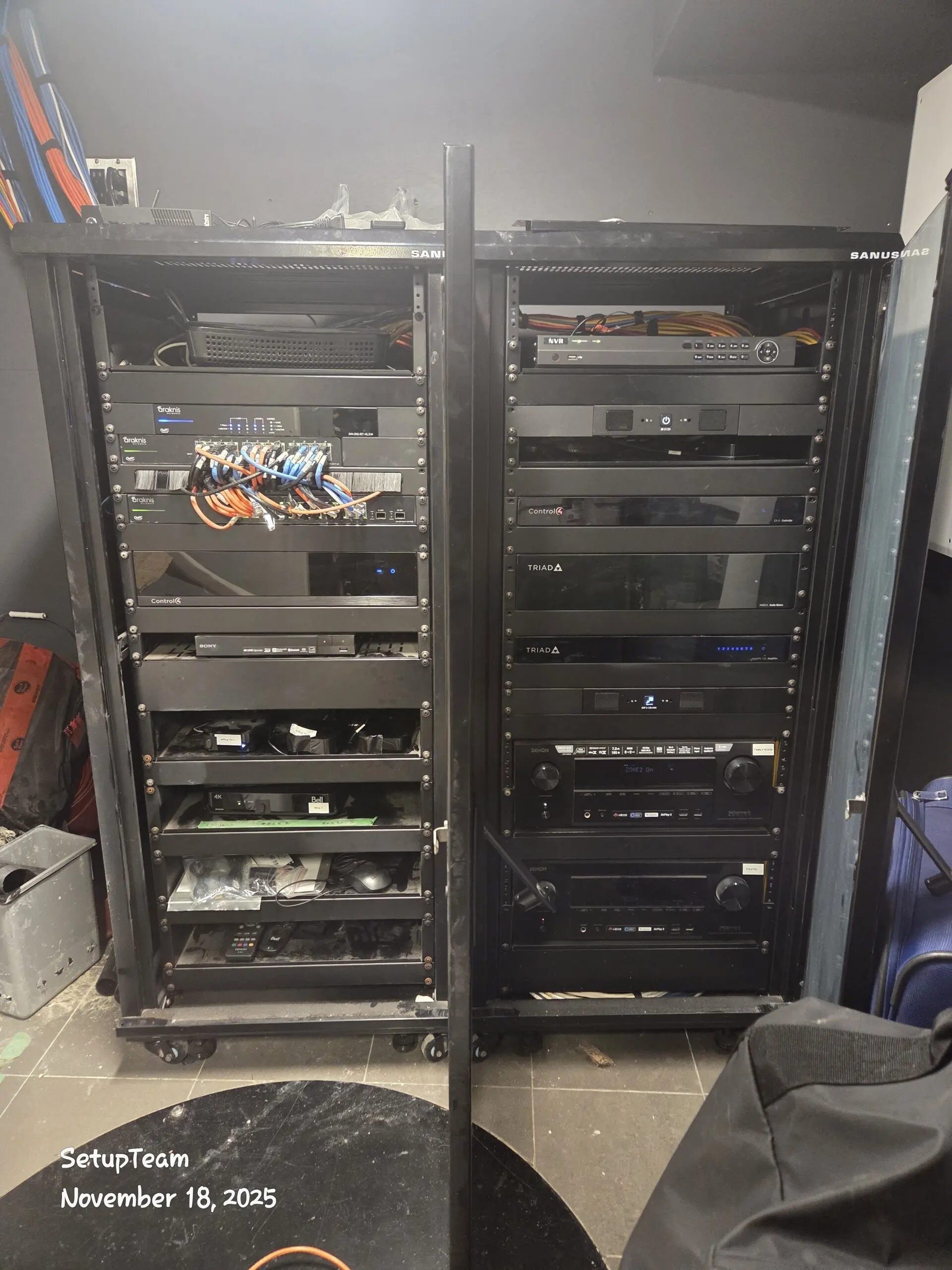

Building a Rack Into a Room That Exists
Mechanical rooms in older houses are already full. We check clearance, ventilation, and service access before choosing the wall, then build the patch panel, switch, recorder, and battery into a rack that someone can open and read years from now.
Wiring That Reaches the Second Structure
A coach house or garage gets a switch port and its own access point rather than a repeater aimed across the yard. Everything homes back to the same rack, so the second building joins the network instead of running a separate one.
Can you get a wired connection out to a coach house that was never wired?
Yes, and the route matters more than the distance. Cable leaves the main house at a rim joist or an existing service penetration, picks up conduit at grade, and lands inside the second building on a small wall-mounted switch. Copper carries most of these runs. Anything past the copper limit gets fibre in the same conduit. Properties across Nobleton, Schomberg, and Pottageville see the same work.
If the property is a new build, or an addition is still at framing with the studs open, that is a different job with a different plan, and it belongs on our new construction pre-wiring page rather than here. We do the work described here with the drywall closed, the floors down, and the family living in the house.
Working With a Renovation Contractor
Renovation contractors call us when a kitchen or basement job has exposed a wall that closes in a week. We can take a one-day window between the electrician and the insulator, drop cable into that specific opening, then come back after paint to terminate and test. Give us the closing date and we book to it.
Finish Standards on an Occupied Property
The house is full of furniture, rugs, and finished floors while we work. Access holes go where a patch will not show, the route between the rack and the room gets covered, and drywall dust ends up in a vacuum at the saw rather than on the millwork.
What happens on the day we fish cable through your finished house?
Three stages, usually spread across two visits. We prove every route with a rod before cutting, then pull and dress the cable, then terminate, test, and label it. We open nothing until we have confirmed the path, because a fished run that dead-ends behind a beam costs a wall repair and buys nothing.
Route Survey With a Glow Rod
We measure run lengths along the real path, check what is inside each wall and ceiling with a rod and a scope, and mark every access point. You approve each hole before it is cut. Long runs get measured here rather than estimated from a drawing.
Pull, Dress, and Patch
We fish each cable from the room back to the rack in one continuous run with a service loop at both ends, then patch the access holes and leave them ready for paint. Conduit to a detached building goes in on the same visit so the yard is only opened once.
Terminate, Test, and Label
Keystone plates at the room end, patch panel at the rack end, every port marked to its room. We test each run before we leave, and you keep the map showing which port feeds which drop, which keeps the next change cheap.

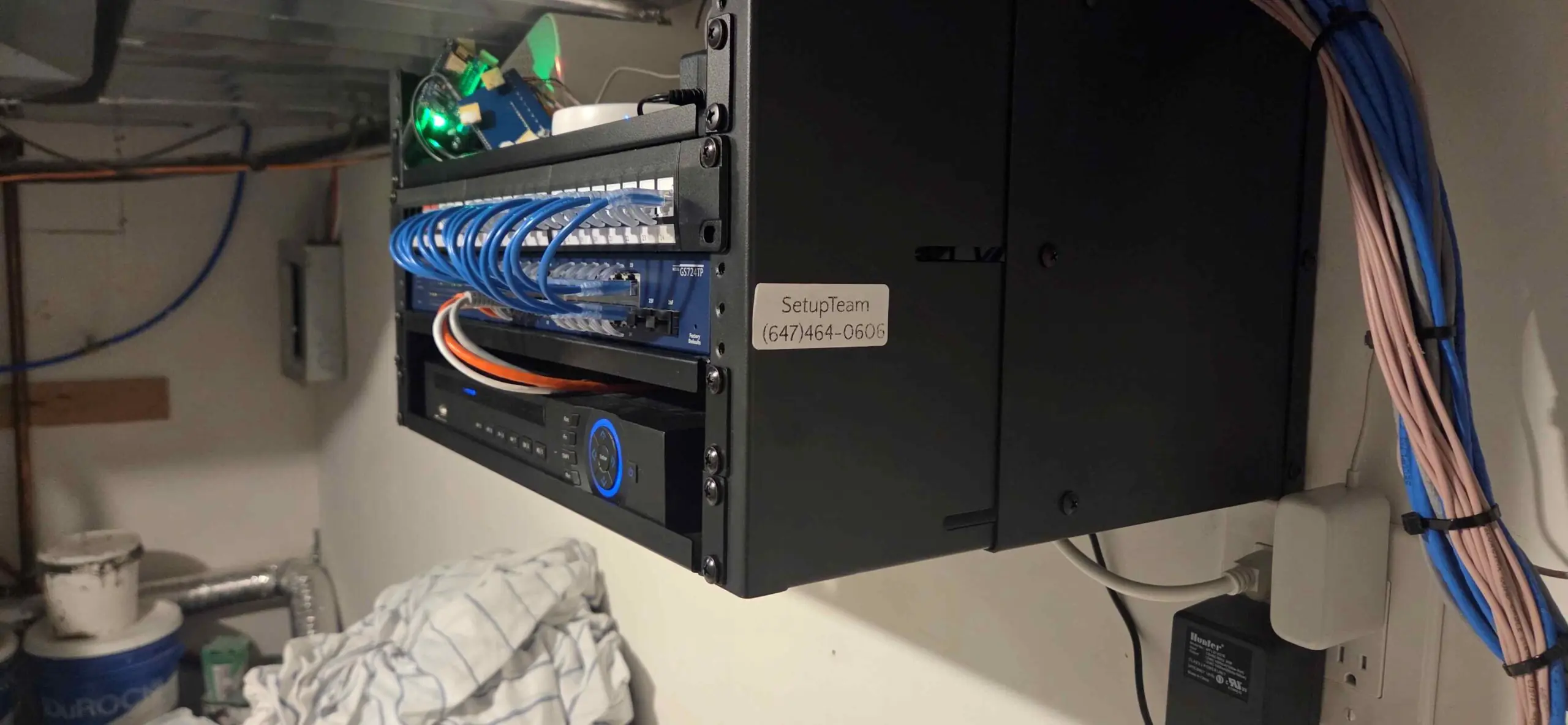

Structured cabling and network rack builds
Cat6A home runs, labeled patch panels, 19-inch equipment racks, and clean cable management inside and out of the wall.
14 photos
Need a drop in a room that never had one?
Tell us the property, which rooms need a connection, and whether any outbuildings are in scope. We reply with a route plan and an estimate built on what the work involves.
